Inverters Only (DC-AC)

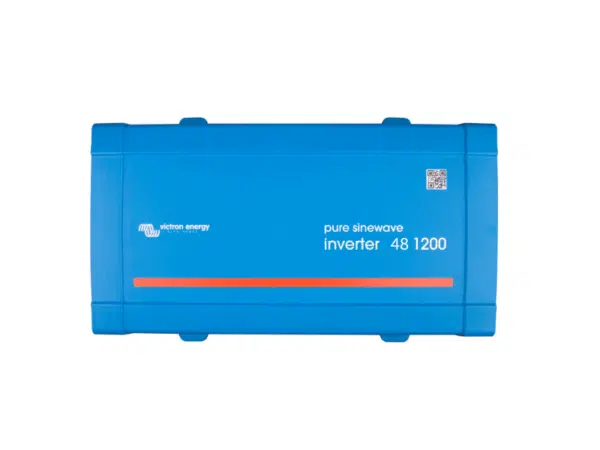

The Victron Phoenix 48/1200 Inverter VE.Direct is a high-efficiency pure sine wave inverter that converts 48V DC battery power into clean 230V AC output. With a continuous output of 1000W (1200VA) and peak power of 2200W, it is ideal for running sensitive electronics and demanding appliances in off-grid, backup, or mobile applications. It includes VE.Direct for advanced configuration and monitoring, ECO mode for energy savings, and a remote on/off terminal for flexible control.

• Model: Victron Phoenix Inverter 48/1200 VE.Direct
• Continuous Output Power at 25°C: 1200VA
• Output Power at 40°C: 1000W
• Peak Power: 2200W
• Input Voltage Range: 36.8V – 62.0V DC
• Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (adjustable)
• Max Efficiency: 92%
• Zero-load Power Consumption: 10W (1.5W in ECO mode)
• DC Connection: Screw terminals
• Max Cable Cross-Section: 25 mm² / AWG 4
• Dimensions (H x W x D): 117 x 232 x 327 mm
• Weight: 7.4 kg
• Cooling: Fan-assisted
• IP Rating: IP21
• Operating Temperature: –40°C to +65°C (derates above 40°C)

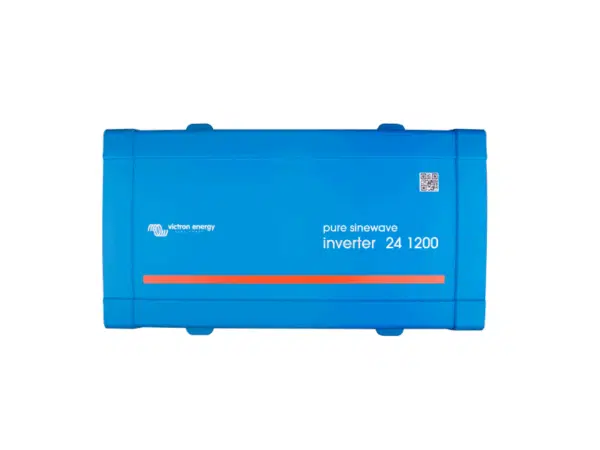

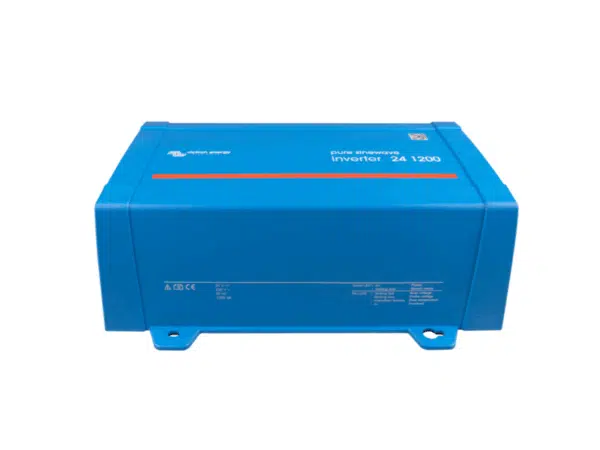

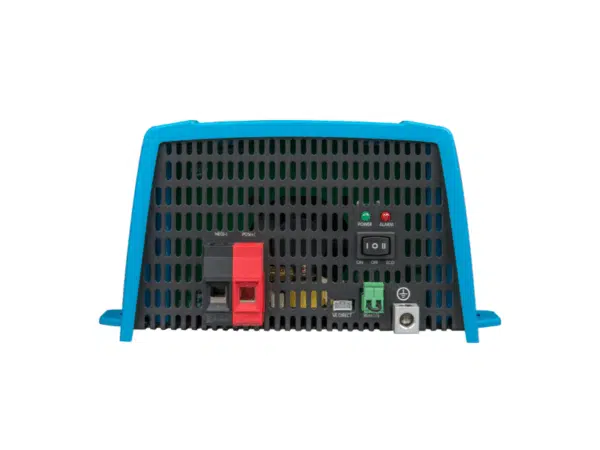

The Victron Phoenix 24/1200 Inverter VE.Direct is a high-capacity pure sine wave inverter designed to convert 24V DC power into clean 230V AC output for use with sensitive electronics and demanding appliances. It delivers 1000W of continuous output (1200VA) and up to 2200W peak power. With VE.Direct connectivity, remote on/off capabilities, and ECO mode, it’s a robust and intelligent solution for off-grid, mobile, or backup systems.

• Model: Victron Phoenix Inverter 24/1200 VE.Direct
• Continuous Output Power at 25°C: 1200VA
• Output Power at 40°C: 1000W
• Peak Power: 2200W
• Input Voltage Range: 18.4V – 34.0V DC
• Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (user configurable)
• Max Efficiency: 91%
• Zero-load Power Consumption: 8W (1.5W in ECO mode)
• DC Connection: Screw terminals
• Max Cable Cross-Section: 25 mm² / AWG 4
• Dimensions (H x W x D): 117 x 232 x 327 mm
• Weight: 7.4 kg
• Cooling: Fan-assisted
• IP Rating: IP21
• Operating Temperature: –40°C to +65°C (derating above 40°C)

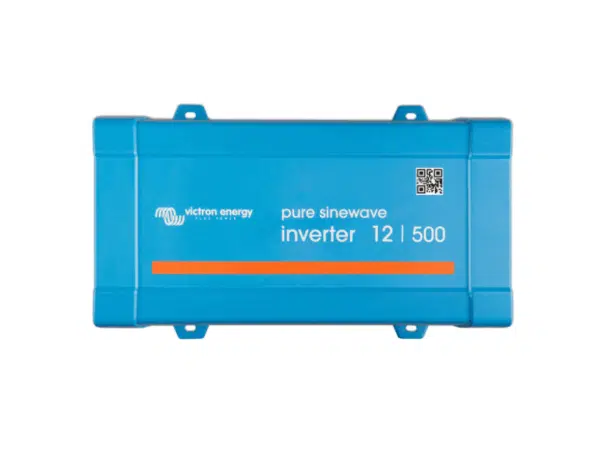

The Victron Phoenix 500VA 12V Inverter VE. Direct is a pure sine wave inverter designed for reliable power delivery in off-grid, mobile, and backup systems. With 400 400W of continuous output and a 900W peak, it is perfect for small appliances, electronics, and other sensitive devices. This version includes a built-in UK socket and offers advanced connectivity via the VE. Direct communication port for real-time monitoring and configuration.

• Model: Victron Phoenix 12/500UK-230V
• Continuous Output Power at 25°C: 500VA
• Continuous Output Power at 40°C: 400W
• Peak Power: 900W
• Input Voltage Range: 9.2V – 17V DC
• Output Voltage / Frequency: 230V ±3%, 50Hz or 60Hz ±0.1%
• Efficiency: Up to 90%
• Zero-load Consumption: 6W (1W in ECO mode)
• Socket Type: UK (BS 1363)
• DC Connection: Screw terminals (tool-free)
• Dimensions (H x W x D): 86 x 172 x 275 mm
• Weight: 3.9 kg
• Cooling: Fan-assisted
• IP Rating: IP21
• Operating Temp: –40°C to +65°C (with derating above 40°C)

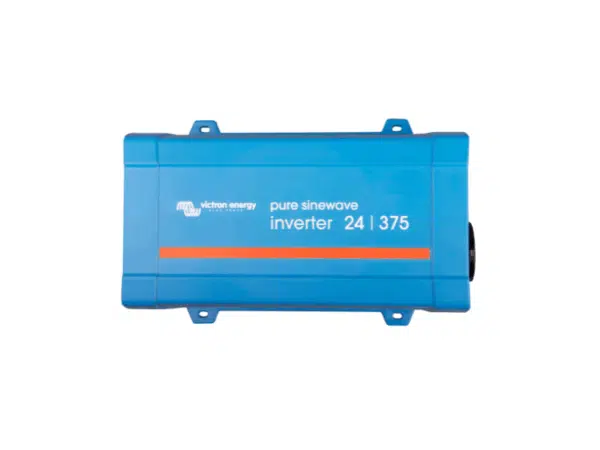

The Victron Phoenix 24/375 Inverter VE.Direct is a high-quality pure sine wave inverter that converts 24V DC battery power into clean 230V AC electricity. Designed for reliability and versatility, it delivers 300W of continuous output and up to 700W peak power, making it ideal for powering sensitive electronics and small appliances in mobile, off-grid, or backup applications. The inverter features VE.Direct communication for monitoring and configuration, ECO mode for energy savings, and a remote on/off terminal for flexible control.

• Model: Victron Phoenix Inverter 24/375 VE.Direct
• Continuous Output Power at 25°C: 375VA
• Output Power at 40°C: 300W
• Peak Power: 700W
• Input Voltage Range: 18.4V – 34.0V DC
• Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (user configurable)
• Max Efficiency: 89%
• Zero-load Power Consumption: 6.1W (1.4W in ECO mode)
• DC Connection: Screw terminals (no special tools needed)
• Dimensions (H x W x D): 86 x 165 x 260 mm
• Weight: 3.0 kg
• Cooling: Natural convection
• IP Rating: IP21
• Operating Temperature: –40°C to +65°C (derates above 40°C)

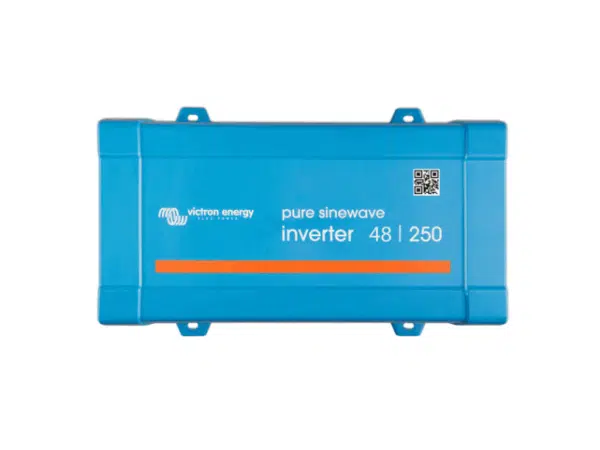

The Victron Phoenix 48/250 Inverter VE.Direct delivers reliable 230V AC power from a 48V DC battery system using proven pure sine wave technology. Compact and efficient, this inverter is ideal for powering sensitive electronics and small appliances in off-grid, mobile, or backup systems. It supports VE.Direct connectivity for advanced monitoring and configuration, and features ECO mode for power saving during low-load operation.

• Model: Victron Phoenix Inverter 48/250 VE.Direct
• Continuous Output Power at 25°C: 250VA
• Output Power at 40°C: 200W
• Peak Power: 400W
• Input Voltage Range: 36.8V – 62.0V DC
• Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (adjustable)
• Max Efficiency: 88%
• Zero-load Power Consumption: 7.9W (2.5W in ECO mode)
• DC Connection: Screw terminals (no special tools required)
• Dimensions (H x W x D): 86 x 165 x 260 mm
• Weight: 2.4 kg
• Cooling: Natural convection
• IP Rating: IP21
• Operating Temperature: –40°C to +65°C (derating above 40°C)

The Victron Phoenix 250VA 12V Inverter is a compact, reliable, pure sine wave inverter designed for small AC loads. Ideal for mobile and off-grid applications, it delivers clean power and supports remote monitoring and configuration through the VE.Direct communication port.

• Continuous Output Power: 200W at 40°C (250VA at 25°C)
• Peak Power: 400W
• Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz (selectable)
• Input Voltage Range: 9.2V – 17.0V DC
• Efficiency: Up to 87%
• Zero-load Power Consumption: 4.2W (0.8W in ECO mode)
• Dimensions (H x W x D): 86 x 165 x 260 mm
• Weight: 2.4 kg
• DC Connection: Screw terminals (no special tools needed)
• AC Output Socket: Schuko or IEC-320 (check model variant)
• Protection: Short circuit, overload, over-voltage, under-voltage, over-temperature
• Cooling: Fan-assisted, with derating above 40°C
• Ingress Protection: IP21
• Operating Temperature: -40°C to +65°C
