Description

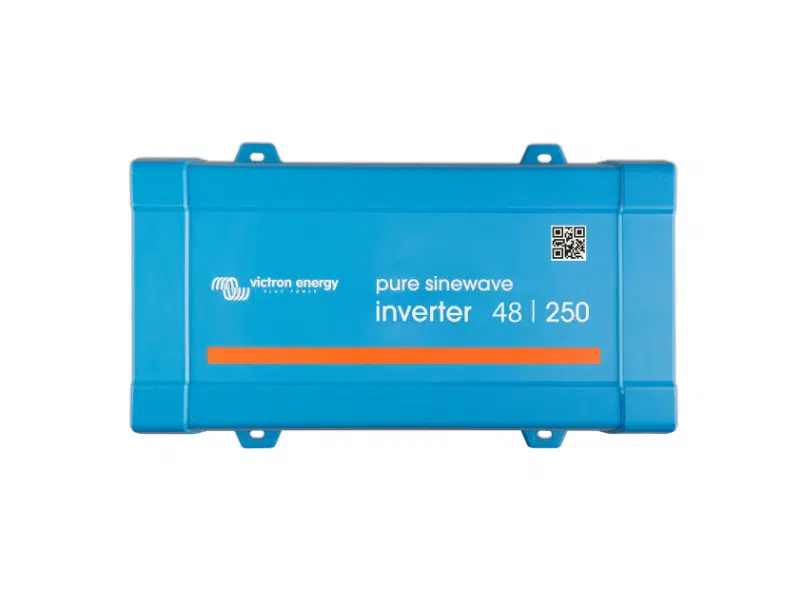

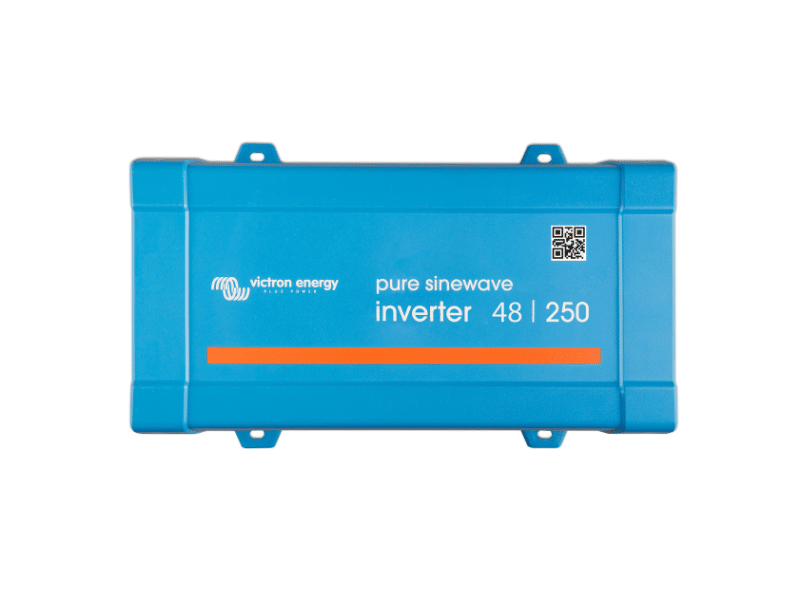

Victron Phoenix 250VA 48V Inverter VE.Direct specifications
- Model: Victron Phoenix Inverter 48/250 VE.Direct
- Continuous Output Power at 25°C: 250VA
- Output Power at 40°C: 200W
- Peak Power: 400W
- Input Voltage Range: 36.8V – 62.0V DC
- Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (adjustable)
- Max Efficiency: 88%
- Zero-load Power Consumption: 7.9W (2.5W in ECO mode)
- DC Connection: Screw terminals (no special tools required)
- Dimensions (H x W x D): 86 x 165 x 260 mm
- Weight: 2.4 kg
- Cooling: Natural convection
- IP Rating: IP21
- Operating Temperature: –40°C to +65°C (derating above 40°C)
Features:
- Pure Sine Wave Output: Ensures compatibility with all AC devices, including sensitive electronics
- VE.Direct Port: Enables real-time monitoring and configuration via USB or Bluetooth dongle
- Remote On/Off Function: Allows external control via switch or relay
- ECO Mode: Reduces standby power draw under low-load conditions
- High Start-Up Power: Can handle devices with surge current demands
- Comprehensive Protections: Short circuit, overload, high/low battery voltage, and over-temperature
- LED Diagnostics: Provides visual fault and status indicators
Ideal For:
- Powering laptops, routers, lighting, and electronics
- 48V battery-based solar or backup systems
- Off-grid cabins, RVs, boats, and mobile workstations
- Efficient DC-AC conversion in telecom, surveillance, and remote monitoring setups
