Description

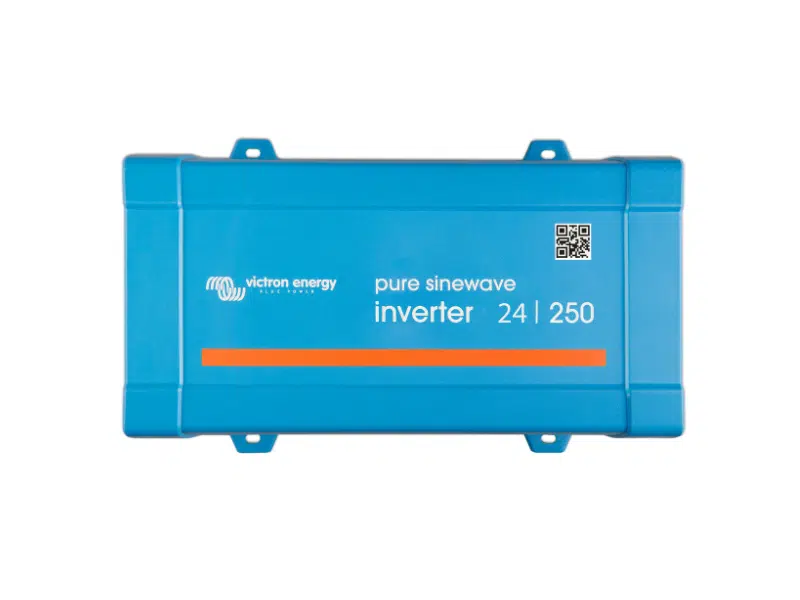

Victron Phoenix 250VA 24V Inverter VE.Direct specifications
- Model: Victron Phoenix Inverter 24/250 VE.Direct
- Continuous Output Power at 25°C: 250VA
- Output Power at 40°C: 200W
- Peak Power: 400W
- Input Voltage Range: 18.4V – 34.0V DC
- Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (user configurable)
- Efficiency: Up to 88%
- Zero-load Power Consumption: 5.2W (1.3W in ECO mode)

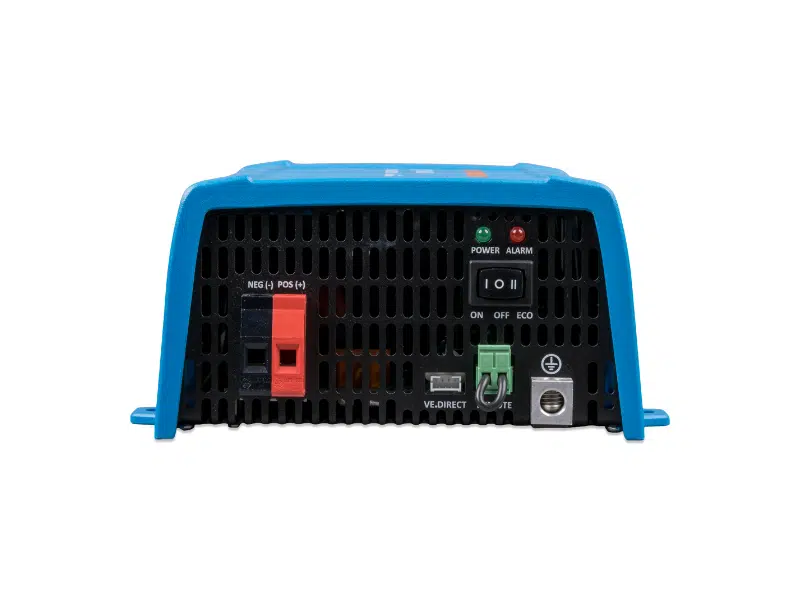

- DC Connection: Screw terminals (tool-free installation)
- Dimensions (H x W x D): 86 x 165 x 260 mm
- Weight: 2.4 kg
- Cooling: Natural convection
- IP Rating: IP21
- Operating Temperature: –40°C to +65°C (derates above 40°C)
Features:
- Pure Sine Wave Output: For safe use with sensitive AC equipment
- VE.Direct Communication Port: Supports live data monitoring and full inverter configuration via USB or Bluetooth dongle
- Remote On/Off Terminal: Allows integration with external switches or control systems
- ECO Mode: Minimises power draw under low load conditions
- High Surge Capability: Starts loads with high inrush current like LED drivers and small tools
- Integrated Protections: Against short circuits, overload, over/under voltage, and overheating
- LED Status Indicators: For diagnostics and alerts
Ideal For:
- Running laptops, routers, lighting, and electronics
- Mobile homes, marine setups, and caravans
- Off-grid and backup systems with 24V battery banks
- Solar power systems needing efficient DC-AC conversion
