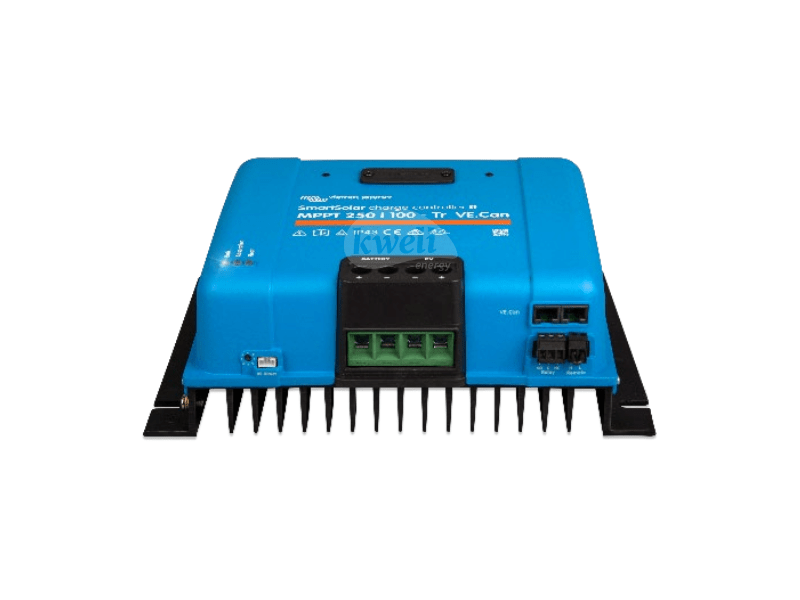

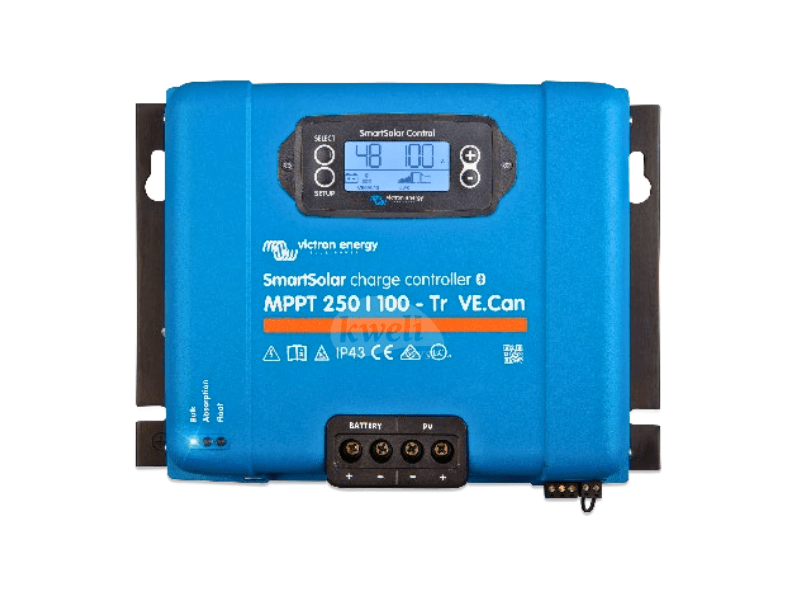

Victron SmartSolar Charge Controller MPPT 250/100Tr VE.Can; 250V 100A 12/24/36/48 Charge Controller with Bluetooth

Description

Victron SmartSolar Charge Controller MPPT 250/100Tr VE.Can

• Battery voltage: 12/24/48 V Auto Select (36 V: manual).
• Rated charge current: 100 A.
• Nominal PV power, 12 V: 1450 W.
• Nominal PV power, 24 V: 2900 W.
• Nominal PV power, 36 V: 4350 W.
• Nominal PV power, 48 V: 5800 W.
• Max. PV short circuit current: 70 A (max 30 A per MC4 conn.).
• Maximum PV open circuit voltage: 250 V absolute maximum coldest conditions, 245 V start-up, and operating maximum.
• Maximum efficiency: 99%.
• Self-consumption: less than 35 mA at 12 V / 20 mA at 48 V.

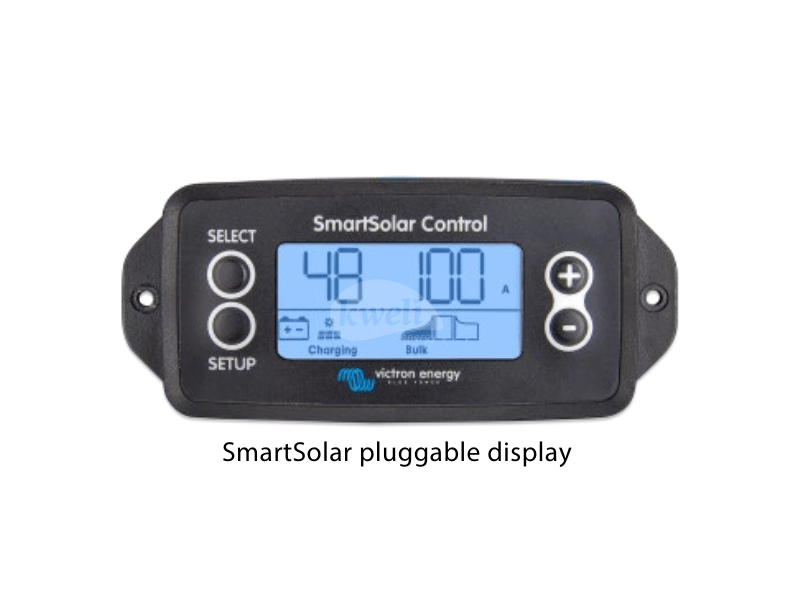

• Charge voltage ‘absorption’: Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable with rotary switch, display, VE.Direct, or Bluetooth).
• Charge voltage ‘float’: Default setting: 13,8 / 27,6 / 41,4 / 55,2 V (adjustable: rotary switch, display, VE.Direct, or Bluetooth).
• Charge voltage ‘equalisation’: Default setting: 16,2 V, 32.4 V, 48.6 V, and 64.8 V (adjustable).
• Charge algorithm: multi-stage adaptive (eight pre-programmed algorithms) or user-defined algorithm.
• Temperature compensation: -16 mV, -32 mV, -64 mV, °C.
• Protection: PV reverses polarity, output short circuit / Over-temperature.
• Operating temperature: -30 to +60 °C (full rated output up to 40 °C).
• Humidity: 95 %, non-condensing.
• Maximum altitude: 5000 m (full rated output up to 2000 m).
• Environmental condition: indoor, unconditioned.
• Pollution degree: PD3.
• Data communication: VE. Can, VE. Direct, and Bluetooth.
• Remote on/off: Yes (2 pole connectors).
• Programmable relay: DPST AC rating: 240 VAC/4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC.
• Parallel operation: Yes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units).

• Enclosure:

  • Colour: blue (RAL 5012).
  • PV terminals: 35 mm²/AWG² (Tr models), two pairs of MC4 connectors (MC4 models).
  • Battery terminals: 35mm²/AWG².
  • Protection category: IP43 (electronic components), IP22 (connection area).
  • Weight: 4.5 kg.
  • Dimensions (h x w x d) in mm: 246 x 295 x 103 (MC4 models).

  Standards:

  • Safety: EN/IEC 62109-1, UL 1741, CSA C22.2.

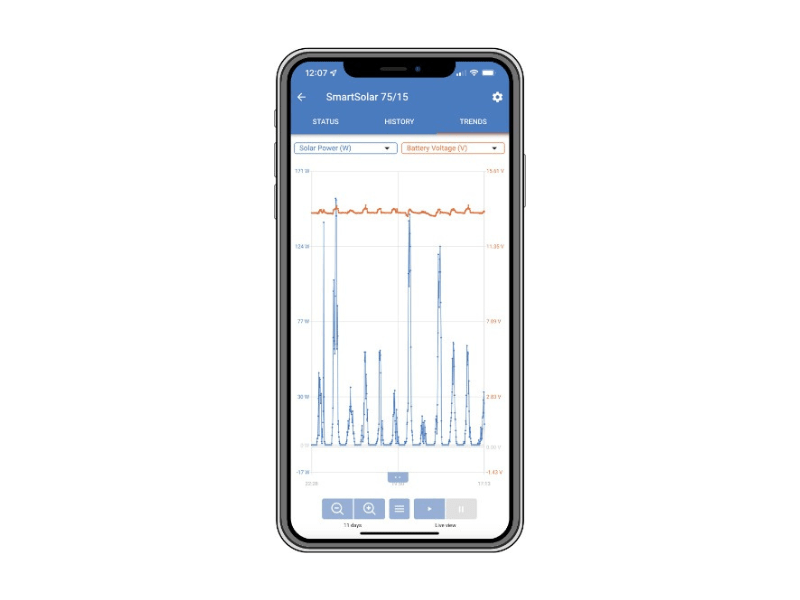

  Stored Trends:

  • Data stored: battery voltage, current, and temperature, as well as load output current, PV voltage, and PV current.
  • Number of days trend data is stored: 46.
