TBB SolarMate 250V 100A MPPT Solar Charge Controller SP250/100; 48V, Bluetooth LCD Display, High Efficiency, 5880W/7500W, 250Vpv Input

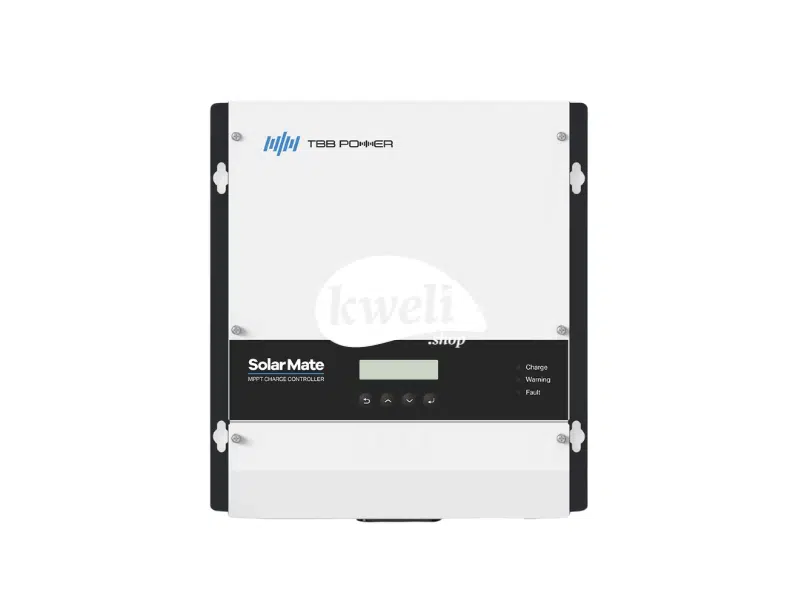

TBB SolarMate 250V 100A MPPT Solar Charge Controller SP250/100

• Nominal Battery Voltage: 48V
• Maximum Charging Current: 100A
• Maximum Charging Power:
  • 48V: 5,880W
• Maximum PV Input Power:
  • 48V: 7,500W
• Maximum PV Input Voltage (Voc): 250V
• MPPT Voltage Range: 65–245V
• Max PV Short Circuit Current: 80A
• Efficiency:
  • Maximum MPPT Efficiency: ≥99.9%
  • Overall Efficiency: Up to 98%
• Self-Consumption: 37mA @ 48V

Charging Parameters:

• Charge Voltage (Absorption): 57.6V
• Charge Voltage (Float): 54V
• Charging Algorithm: TBB Premium II multistage
• Temperature Compensation: -3mV/°C/cell (default)
• Equalization Charging: Programmable

• Display: LED + LCD
• Communication Port: RS485, with support for auxiliary contact and T-Bus communication
• Parallel Functionality: Up to 6 units can operate in parallel for scalability
• Data Logging: 365 days of historical records, including:
  • Real-time solar array voltage, battery voltage, and charging data
  • Logs for PV start charging time, transfer to float, power loss, and fault time
• Cooling: Forced fan
• Operating Temperature: -25°C to 60°C (power derated above 40°C)
• Storage Temperature: -40°C to 70°C
• Humidity: 5%–95% (non-condensing)
• Altitude: Up to 3,000m (fully rated up to 2,000m)

Physical:

• Protection Category: IP21
• Dimensions (L × W × H): 352.2 × 293 × 116.2 mm
• Weight: 7.8 kg

Certifications:

• EN61000-6-1, EN61000-6-3, EN62109-1

TBB SolarMate 250V 100A MPPT Solar Charge Controller SP250/100

• High Efficiency: MPPT efficiency >99.9%, overall efficiency up to 98%.
• Wide PV Range: Supports 250V input and 65–245V MPPT range.
• High Power Capacity: Up to 7,500W PV input, 5,880W charging for 48V systems.
• Battery Compatibility: Works with lead-acid and lithium-ion batteries, with advanced multistage charging.
• Data Logging: 365 days of system performance tracking.
• Parallel Operation: Supports up to 6 units for scalability.
• Advanced Communication: RS485 interface and T-Bus compatibility.
• User-Friendly Display: LED + LCD for real-time monitoring.
• Durable Design: Forced cooling, IP21 rating, and operation up to 60°C.
• Programmable Features: Includes equalization charging and temperature compensation.
