MPPT Charge controllers, Solar Charge ControllersFelicity 45A MPPT Solar Charge Controller SCCM4524-II; 95V/45A, up to 1250Wpv @24V, 625Wpv @12V

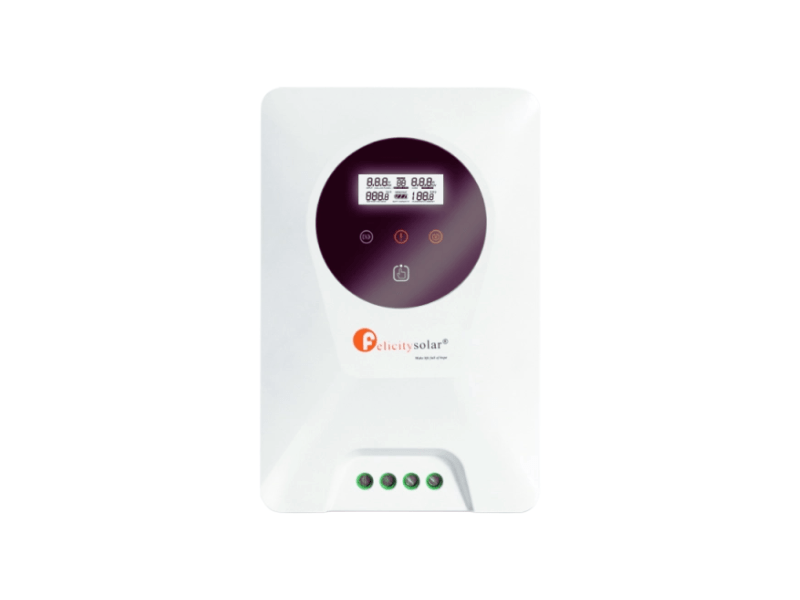

Felicity 45A MPPT Solar Charge Controller SCCM4524-II
- Compatible for PV systems in 12V, 24V
- Maximum charging current up to 45A
- Automatic battery voltage detection (lithium battery voltage needs to be set manually)
- Supports lithium battery and various lead-acid batteries, AGM and gel battery
- Integrated intelligent slot compatible with MODBUS communication
- Caution, risk of electric shock, energy storage timed discharge.
- Charging Stages: Bulk, Absorption, Float
- Temperature Compensation Coefficient: -5mV/℃/cell (25°C ref.)
- Temperature Compensation Range: 0°C to 50°C
- Transient Surge Protection: 4500 Watts/port
Specifications
- Maximum Solar Input Voltage: 95V
- PV Start-up Voltage: 15V
- System voltage: 12V/24V (Auto detection)
- Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
- Automatic battery voltage detection (12V/24V)
- Three-stage charging optimises battery performance
- Charging Stages: bulk, absorption, floatBulk, absorption, float
- Maximum charging current up to 45A
- Max PV Input Power @12V = 625W,
- Max PV Input Power @24V = 1,250W,
- PV Array MPPT Voltage Range: 15-80V DC/30-80V DC
- PV array: 12V DC/24V DC
- Maximum efficiency up to 98%• Battery temperature sensor (BTS) automatically provides temperature compensation
- Integrated intelligent slot compatible with SNMP/MODBUS communication
- Weight: 1.8kg
- Protections:
Solar High Voltage Disconnect
Solar High Voltage Reconnect
Battery High Voltage Disconnect
Battery High Voltage Reconnect
High Temperature Disconnect
High-Temperature Reconnect
UGX 490,000 UGX 569,000
