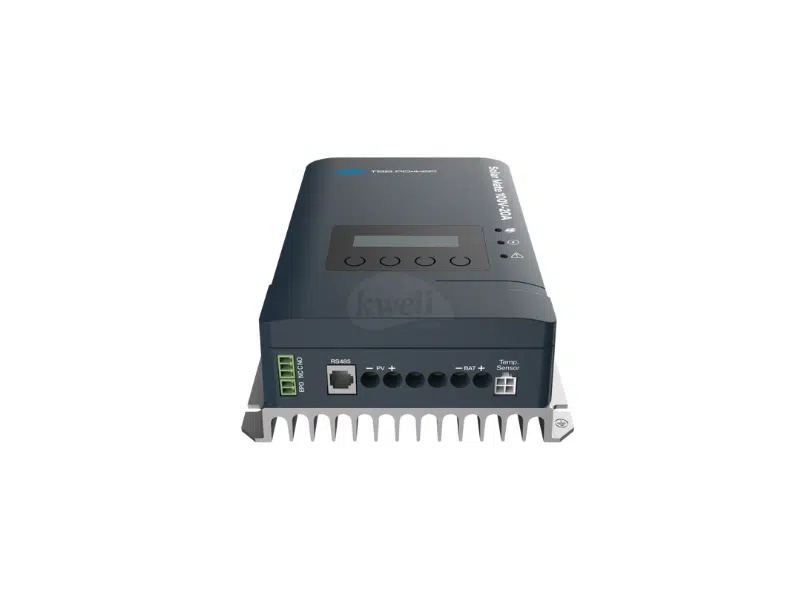

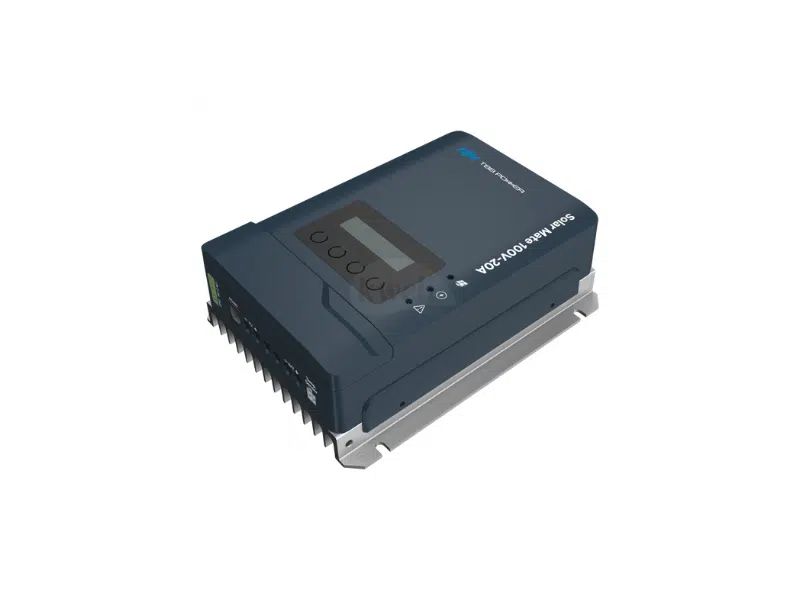

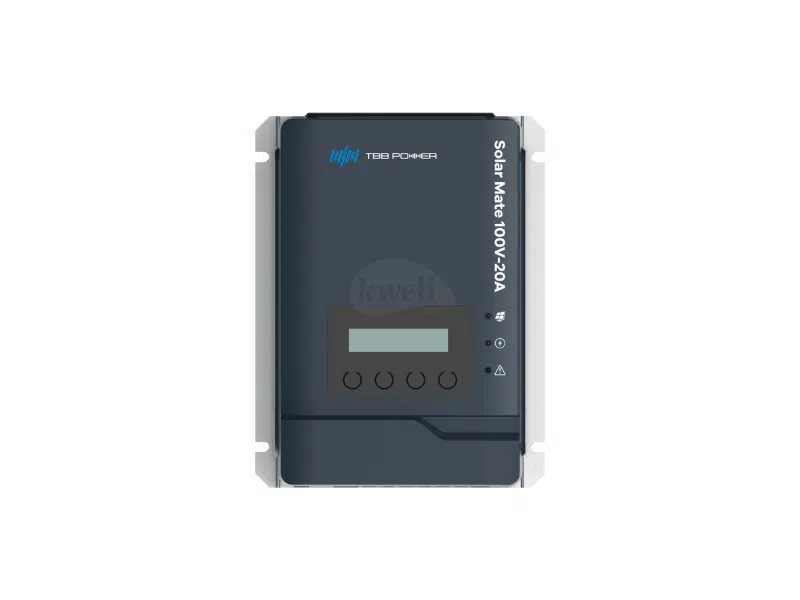

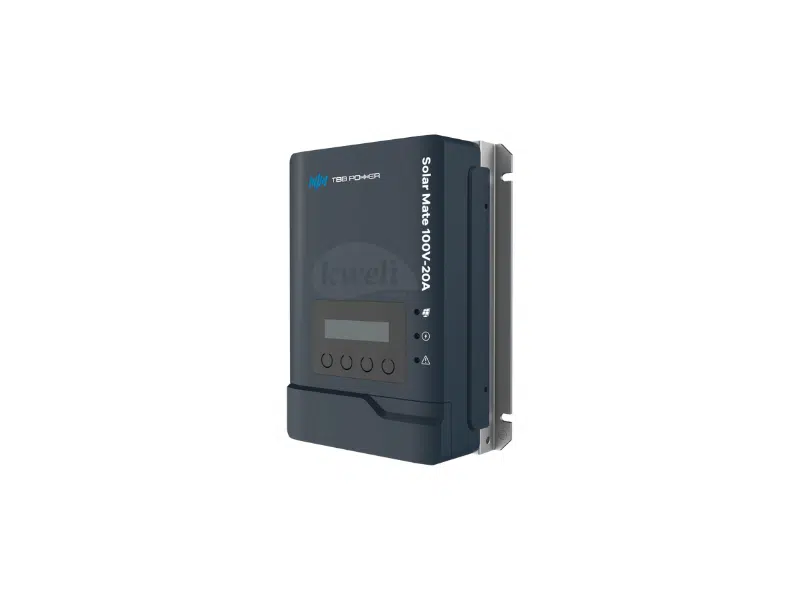

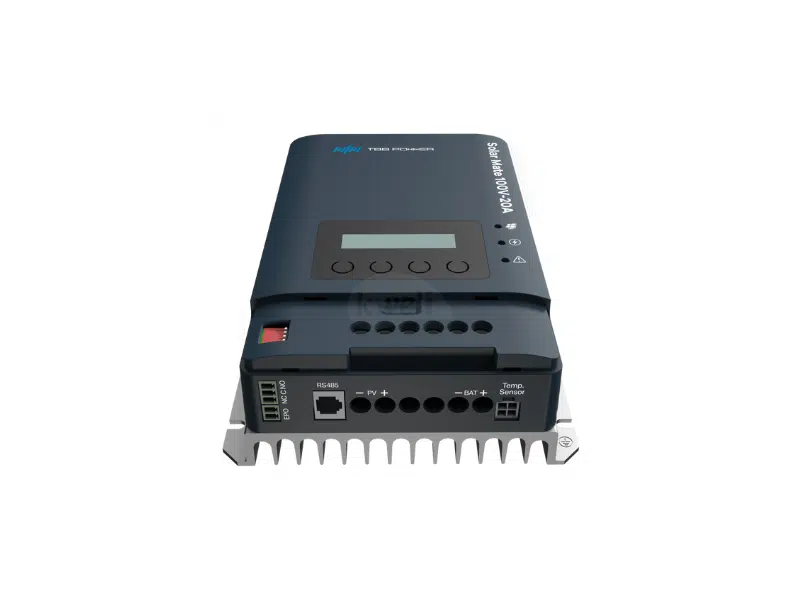

TBB SolarMate 100V 20A MPPT Solar Charge Controller SP100-20
- Nominal Battery Voltage: Compatible with 12V, 24V, and 48V systems.
- Maximum Charging Current: 20 Amperes.
- Maximum PV Input Power:
- 12V system: up to 294W
- 24V system: up to 588W
- 48V system: up to 1176W
- Maximum PV Input Voltage: 100V.
- Maximum Efficiency: Up to 98.2%.
- MPPT Efficiency: Up to 99%.
Charging Parameters:
- Absorption Charge Voltage:
- 12V system: 14.4V
- 24V system: 28.8V
- 48V system: 57.6V
- Float Charge Voltage:
- 12V system: 13.5V
- 24V system: 27.0V
- 48V system: 54.0V
- Charging Algorithm: TBB Premium II multistage charging, suitable for various lead-acid battery types.
Physical Specifications:
- Dimensions: 205 mm (H) x 160 mm (W) x 65 mm (D).
- Weight: 1.4 kg.
- Protection Class: IP31.
- Operating Temperature Range: -40°C to +70°C.
- Humidity: 5% to 95% (non-condensing).
Features:
- Bluetooth connectivity: allows monitoring and configuration via the TBB SolarMate app.
- LCD Display: Provides real-time system status and data.

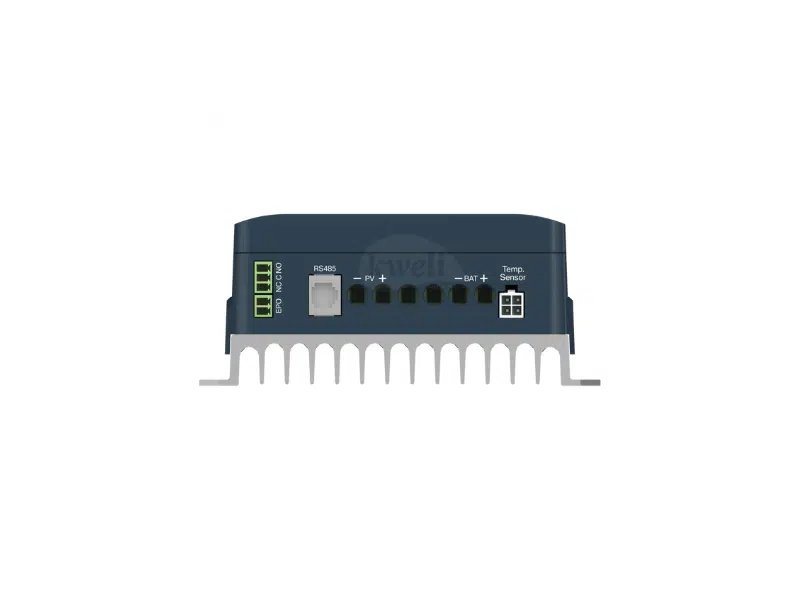

- Communication Port: RS485 interface for integration with other devices.
- Data Logging: Supports 365 days of historical data recording.
- Protection Features: Includes over-temperature, over-voltage, and over-current protections.
