Felicity 30A MPPT Solar Charge Controller SCCM3024-II; 95V/30A, up to 830Wpv @24V, 420Wpv @12V

Original price was: UGX 350,000.Current price is: UGX 349,000.

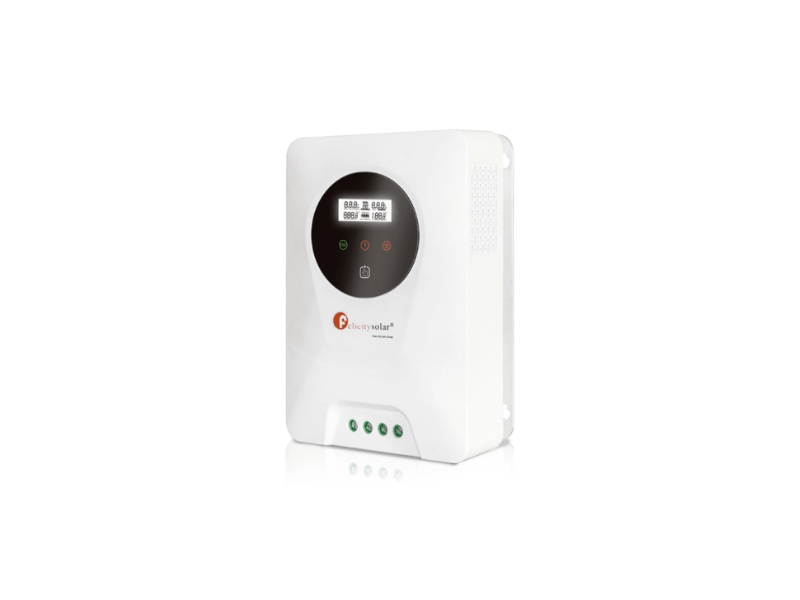

Felicity 30A MPPT Solar Charge Controller SCCM3024-II

  • Compatible for PV systems in 12V, 24V
  • Maximum charging current up to 30A
  • Automatic battery voltage detection (lithium battery voltage needs to be set manually)
  • Supports lithium battery and various lead-acid batteries, AGM and gel battery
  • Integrated intelligent slot compatible with MODBUS communication
  • Caution, risk of electric shock, energy storage timed discharge.
  • Charging Stages: Bulk, Absorption, Float
  • Temperature Compensation Coefficient: -5mV/℃/cell (25°C ref.)
  • Temperature Compensation Range: 0°C to 50°C
  • Transient Surge Protection: 4500 Watts/port

Specifications

  • Maximum Solar Input Voltage: 95V
  • PV Start-up Voltage: 15V
  • System voltage: 12V/24V (Auto detection)
  • Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
  • Automatic battery voltage detection (12V/24V)
  • Three-stage charging optimises battery performance
  • Charging Stages: bulk, absorption, floatBulk, absorption, float
  • Maximum charging current up to 30A
  • Max PV Input Power @12V = 420W,
  • Max PV Input Power @24V = 830W,
  • PV Array MPPT Voltage Range: 15-80V DC/30-80V DC
  • PV array: 12V DC/24V DC
  • Maximum efficiency up to 98%• Battery temperature sensor (BTS) automatically provides temperature compensation
  • Integrated intelligent slot compatible with SNMP/MODBUS communication
  • Weight: 1.2kg
  • Protections:
    Solar High Voltage Disconnect
    Solar High Voltage Reconnect
    Battery High Voltage Disconnect
    Battery High Voltage Reconnect
    High Temperature Disconnect
    High-Temperature Reconnect
  •
Categories , Brand:
Post on Faacebook
Post on X
Share via WhatsApp
Print
Send via Email

Description

Felicity 30A MPPT Solar Charge Controller SCCM3024-II

  • Compatible for PV systems in 12V, 24V
  • Maximum charging current up to 30A
  • Automatic battery voltage detection (lithium battery voltage needs to be set manually)
  • Supports lithium battery and various lead-acid batteries, AGM and gel battery
  • Integrated intelligent slot compatible with MODBUS communication
  • Caution, risk of electric shock, energy storage timed discharge.
  • Charging Stages: Bulk, Absorption, Float
  • Temperature Compensation Coefficient: -5mV/℃/cell (25°C ref.)
  • Temperature Compensation Range: 0°C to 50°C
  • Transient Surge Protection: 4500 Watts/port

Additional information

Weight 1.2 kg
