Felicity 80A 48V MPPT Solar Charge Controller SCCM8048-II; 145V/80A, up to 4400Wpv @ 48V, 2200Wpv @24V, 1100Wpv @12V

Original price was: UGX 949,000.Current price is: UGX 749,000.

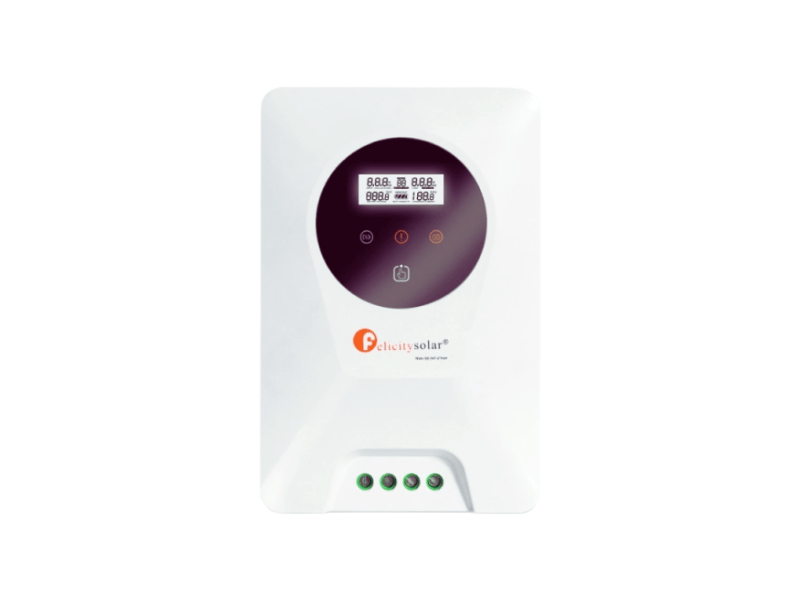

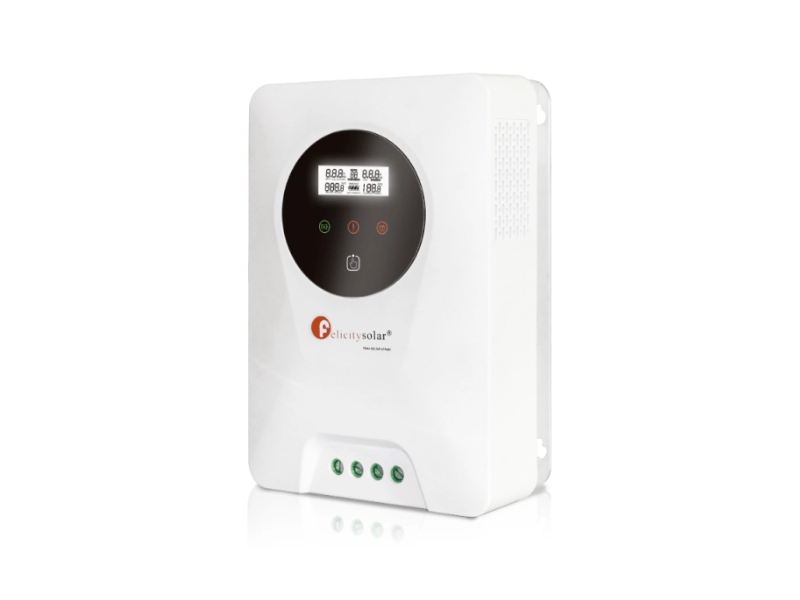

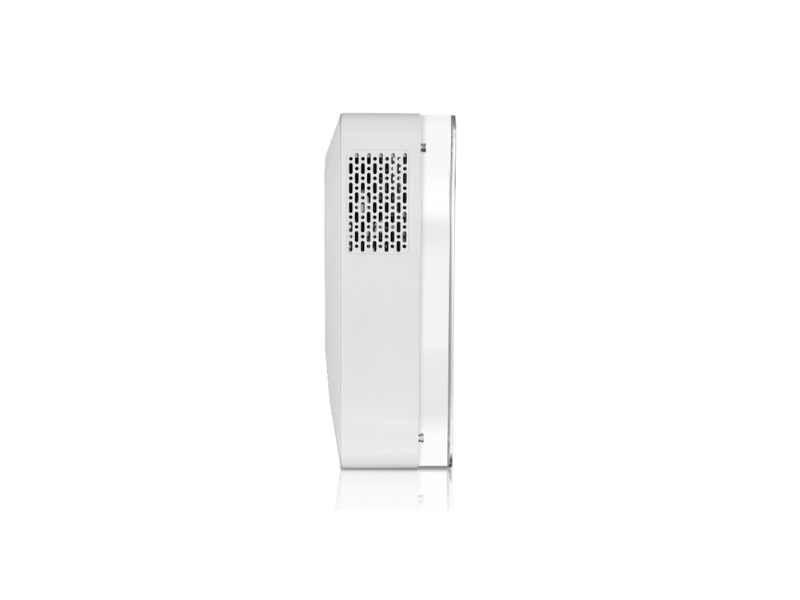

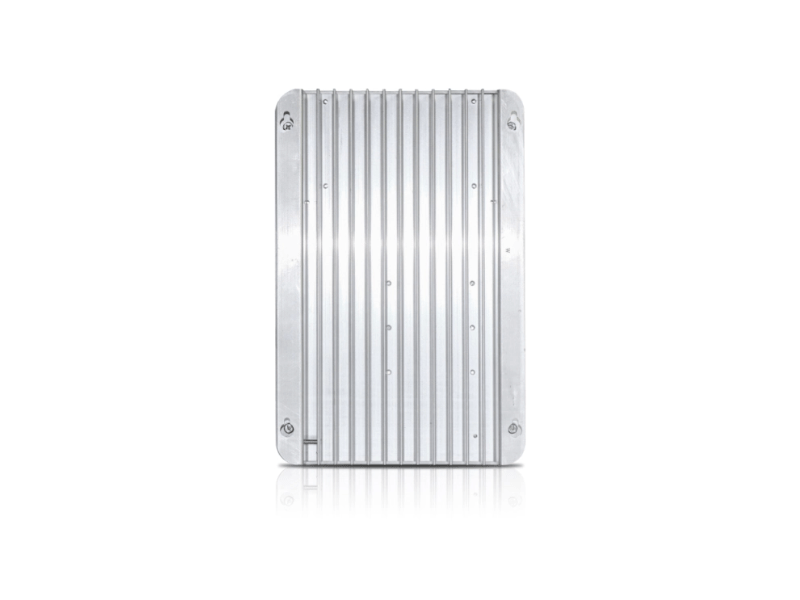

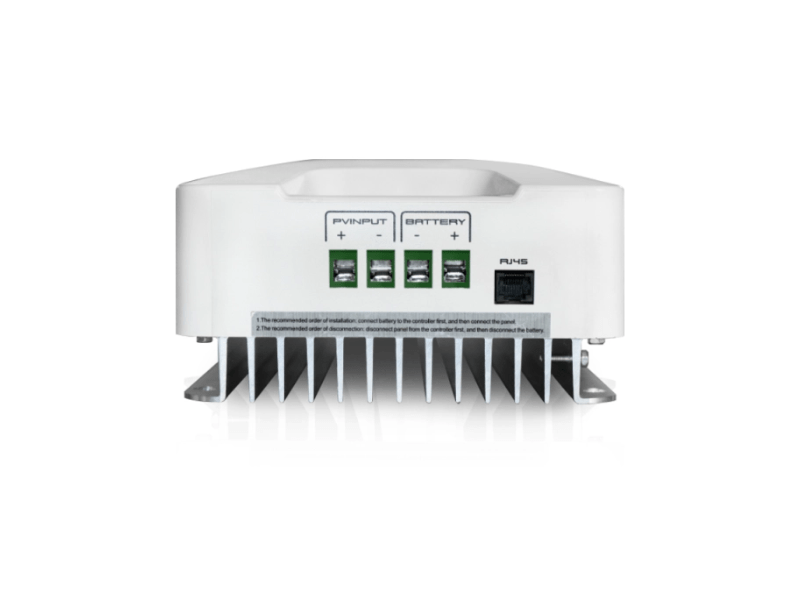

Felicity 80A 48V MPPT Solar Charge Controller SCCM8048-II

  • Maximum Solar Input Voltage: 145V
  • PV Start-up Voltage: 15V
  • PV Array MPPT Voltage Range: 15-130V DC/30-130V DC/ 60-130V DC
  • System voltage: 12V/24V/48/(Auto detection)
  • Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
  • Automatic battery voltage detection (12V/24V/48V)
  • Three-stage charging optimises battery performance
  • Charging Stages: bulk, absorption, floatBulk, absorption, float
  • Maximum charging current up to 80A
  • Max PV Input Power @12V = 1,100W,
  • Max PV Input Power @24V = 2,200W,
  • Max PV Input Power @48V = 4,400W
  • PV Array MPPT Vol Range: 15V-170V/ 30-170V/ 60-170V
  • Maximum efficiency up to 98%• Battery temperature sensor (BTS) automatically provides temperature compensation
  • Integrated intelligent slot compatible with SNMP/MODBUS communication
  • Weight: 5.9kg
  • Protections:
    Solar High Voltage Disconnect
    Solar High Voltage Reconnect
    Battery High Voltage Disconnect
    Battery High Voltage Reconnect
    High Temperature Disconnect
    High-Temperature Reconnect

Categories , Brand:
Flexible payments available

Apply to pay in instalments or save towards this item. Approval is required before the plan becomes active.

Flexible Deposit Purchase: approx. UGX 524,300 deposit 6 payments: approx. UGX 124,833 each 10 payments: approx. UGX 74,900 each Save Now, Buy Later: save gradually; delivery after full payment
View options
Post on Faacebook
Post on X
Share via WhatsApp
Print
Send via Email

Description

Felicity 80A 48V MPPT Solar Charge Controller SCCM8048-II



Additional information

Weight 5.9 kg
