Victron Quattro 48/15000/200-100/100 Inverter Charger; 48V 15kVA Inverter, 12kW @ 25 °C, Two AC inputs/outputs, Split phase

Description

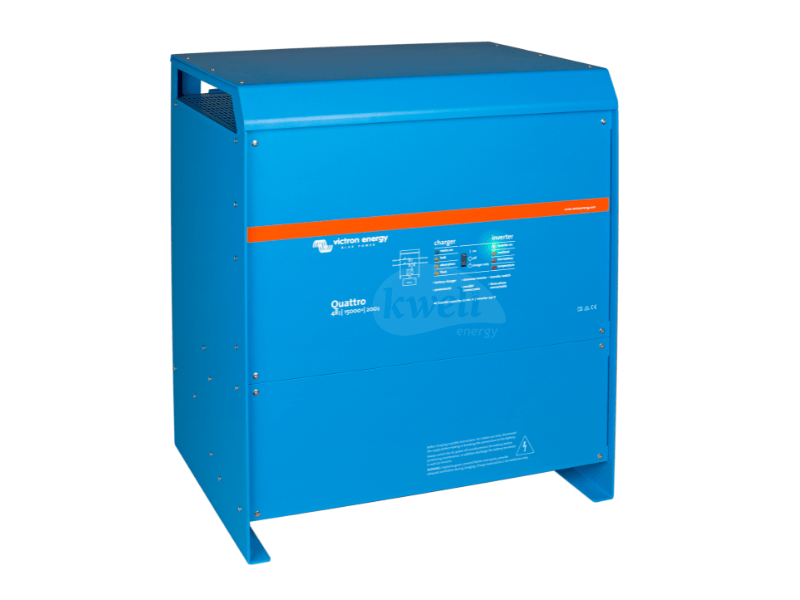

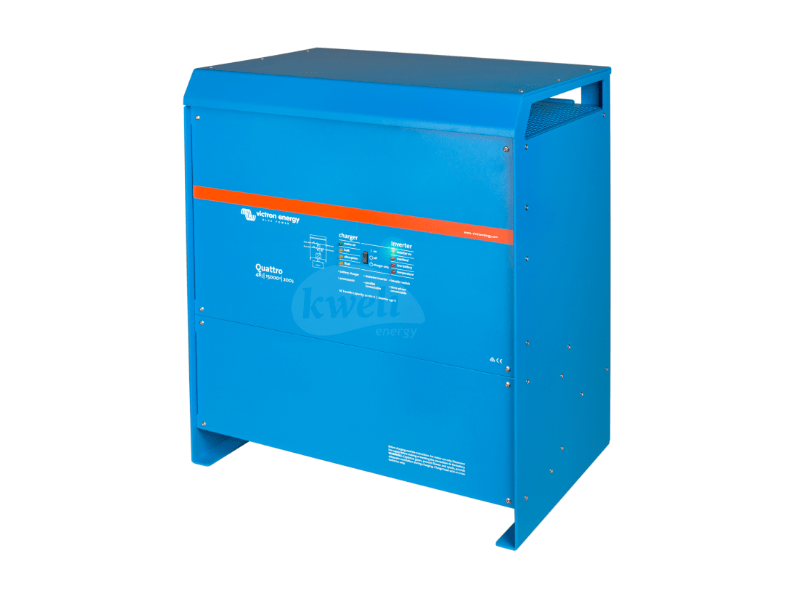

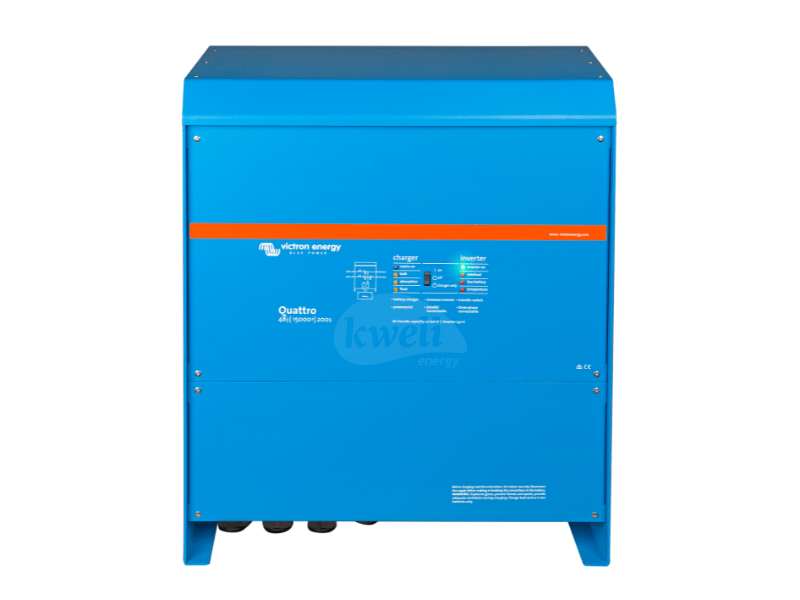

Victron Quattro 48/15000/200-100/100 Inverter Charger

The Victron Quattro 48/15000/200-100/100 is a powerful 15kVA inverter charger with dual AC inputs, split/three-phase capabilities, and PowerAssist to boost power. It supports solar integration, offers remote monitoring, and operates efficiently up to 96%, making it ideal for diverse energy needs.

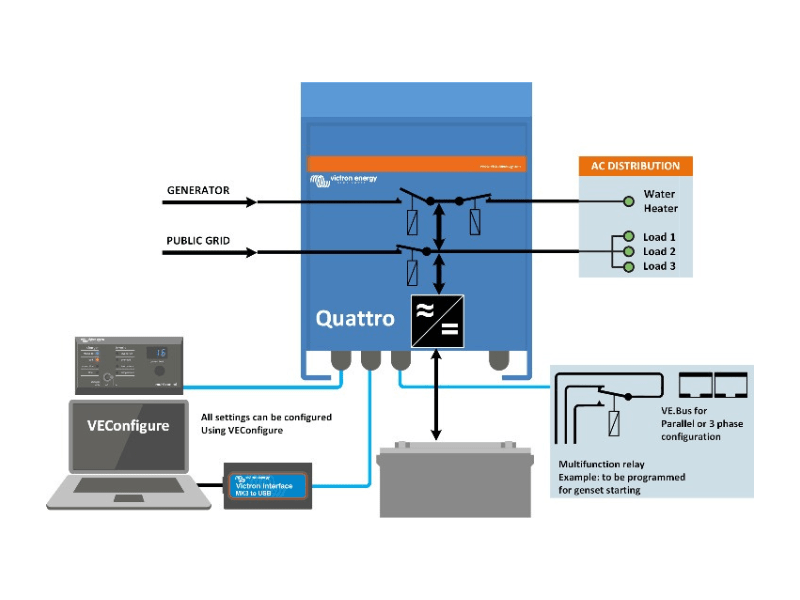

• Two AC inputs with integrated transfer switch
  The Quattro can be connected to two independent AC sources, for example, the public grid and a generator, or two generators.
  The Quattro will automatically connect to the active source.
• Two AC Outputs
  – The main output has no-break functionality. The Quattro takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
  – The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, like a water heater for example, can be connected to this output.
• Split phase option
  A split-phase AC source can be obtained by connecting our autotransformer (see data sheet on www.victronenergy.com) to a‘European inverter programmed to supply 240 V / 60 Hz.
• Three phase capability
  Three units can be configured for three-phase output. But that’s not all: up to 4 sets of three 15 kVA units can be parallel connected to provide 144 kW / 180 kVA inverter power and 2400 A charging capacity.
• PowerControl – Dealing with limited generator, shoreside, or grid power
  The Quattro is a very powerful battery charger. It will therefore draw a lot of current from the generator or shoreside supply (16 A per 5 kVA Quattro at 230 VAC). A current limit can be set on each AC input. The Quattro will then take account of other AC loads and use whatever is spare for charging, thus preventing the generator or mains supply from being overloaded.
• PowerAssist – Boosting shore or generator power
  This feature takes the principle of PowerControl to a further dimension allowing the Quattro to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the Quattro will make sure that insufficient mains or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.
• Solar energy: AC power available even during a grid failure
  The Quattro can be used in off grid as well as grid connected PV and other alternative energy systems. Loss of mains detection software is available.
• System configuring
  – In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.
  – Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software.
  – Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications).
• On-site Monitoring and control
  – Several options are available: battery monitor, multi-control panel, colour control GX or other GX devices, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).
• Remote Monitoring and Control

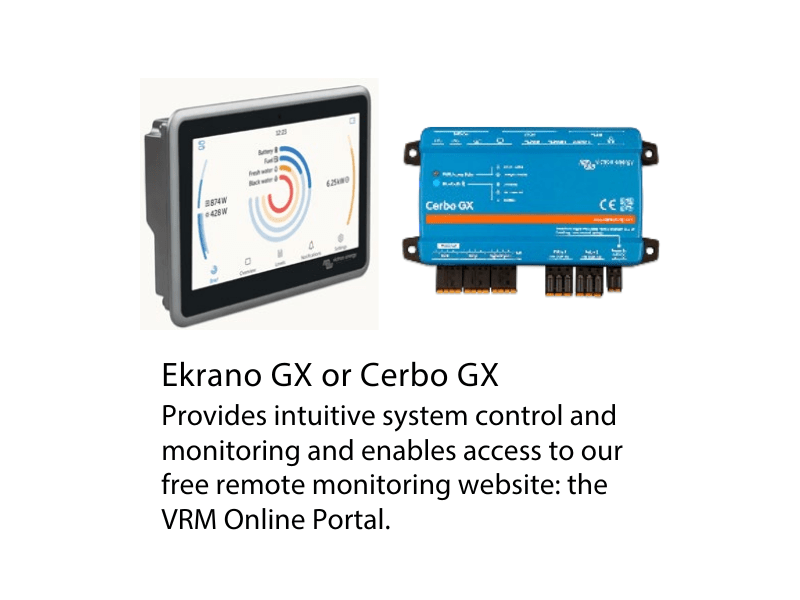

  – Color Control GX or other GX devices.
  – Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.
• Remote configuring
  When connected to the Ethernet, systems with a Color Control GX or other GX device can be accessed and settings can be
  changed remotely.
