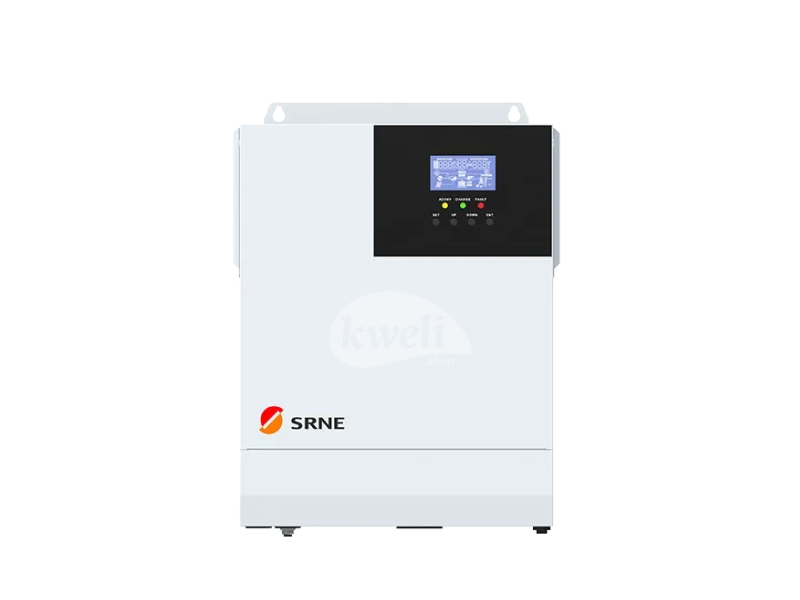

SRNE 3kVA/3kW 24V Hybrid Inverter HF2430S60-100
General Specifications
- Model: HF2430S60-100
- Rated Power: 3kVA / 3kW
- Nominal Battery Voltage: 24V
- Inverter Type: Pure Sine Wave
- Cooling: Forced air cooling with variable-speed fan
Inverter Mode
- Rated Output Voltage: 230Vac ±5%
- Output Frequency: 50Hz ±0.3Hz / 60Hz ±0.3Hz
- Efficiency: >92%
- Peak Power: 6,000W
- Overload Protection:
- 102% < Load < 125%: Shutdown after 5 minutes
- 125% < Load < 150%: Shutdown after 10 seconds
- Load >150%: Shutdown after 5 seconds
- Output Short Circuit Protection: Circuit breaker
AC Mode
- Rated Input Voltage: 220/230Vac
- Input Voltage Range: (170Vac~280Vac) ±2% / (90Vac-280Vac) ±2%
- Input Frequency: 50Hz / 60Hz (Auto Detection)
- Bypass Mode Efficiency: >95%
- Bypass Overload Current: 30A
- AC Reverse Protection: Available
- Conversion Time (Bypass to Inverter): 10ms (typical)
MPPT Solar Charge Controller
- Maximum PV Open Circuit Voltage (Voc): 100Vdc
- MPPT Operating Voltage Range: 30V - 95Vdc
- PV Input Voltage Range: 30V - 100Vdc
- Maximum PV Input Power: 1400W
- Maximum PV Input Current: 60A
- MPPT Efficiency: 99.9%
- PV Charging Short Circuit Protection: Blown fuse
- Reverse Polarity Protection: Available
Battery & Charging
- Battery Voltage Range: 18V - 33Vdc
- Battery Type Compatibility: Lead-acid and Lithium
- Maximum AC Charge Current: 60A
- Charge Current Accuracy: ±5A
- Overcharge Protection: Circuit breaker and blown fuse
- Lithium Battery Activation: Supported via both PV and Mains
Design & Connectivity
- User Interface: LCD Display + LED Indicators + Touch Buttons
- Communication Interfaces: USB, RS485 (Supports Bluetooth, WiFi, GPRS), CAN
- Dry Node Control: Available
- Dimensions (L × W × D): 378mm × 280mm × 103mm
- Net Weight: 6.2kg
Environmental & Safety
- Operating Temperature Range: -15°C to 55°C
- Storage Temperature Range: -25°C to 60°C
- Humidity Range: 5% to 95% (Conformal coating protection)
- Noise Level: ≤60dB
- Protection Features:
- Overload Protection
- Short Circuit Protection
- Over-Voltage/Under-Voltage Protection
- Battery Reverse Polarity Protection
- Intelligent Power Saving Mode
Certification
- Safety Standard: CE (EN62109-1)
- EMC Compliance: EN61000
