Inverter-Chargers, Victron MultiPlus Inverter/ChargersVictron MultiPlus 3kVA/2.4kW 24V Inverter Charger 24/3000/70-50 230; 2.4kW Continuous Load, Pure Sine Wave, 70A Battery Charger, 50A Transfer Switch

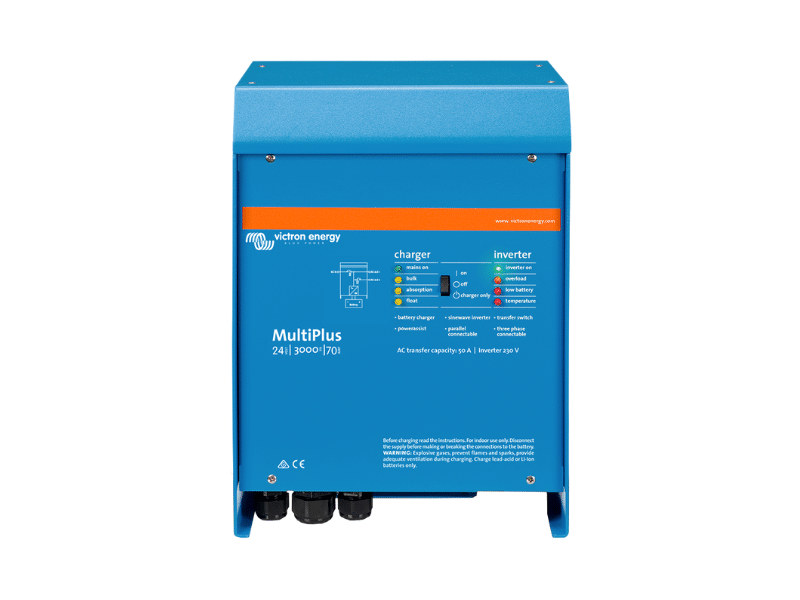

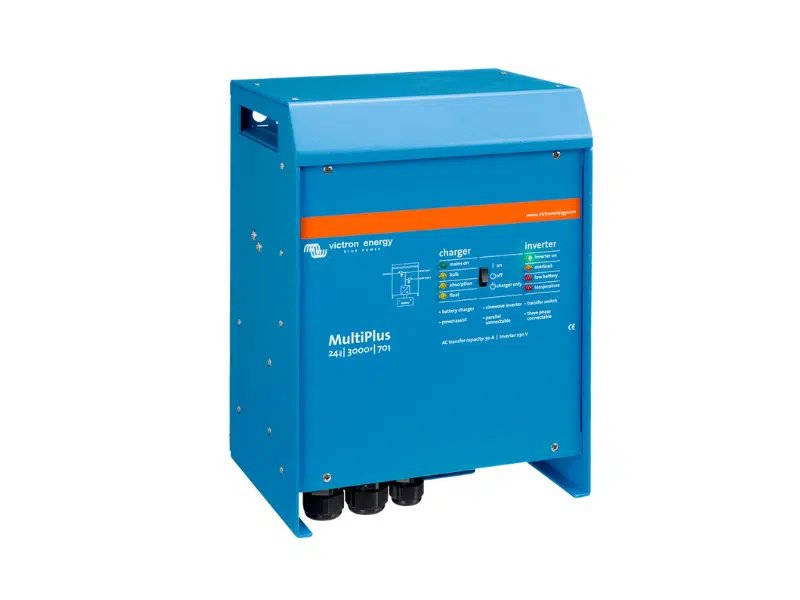

Victron MultiPlus 3kVA/2.4kW 24V Inverter Charger 24/3000/70-50 230
- Inverter Power Output (VA): 3,000 VA
- Continuous Output Power (W): 2,400 W (at 25°C)
- Peak Power: 6,000 W
- Input Voltage Range (DC): 19 – 33 V
- Nominal Battery Voltage: 24V
- Output Voltage (AC): 230 V ± 2%
- Output Frequency: 50 Hz or 60 Hz ± 0.1%
Battery Charger
- Charge Voltage (Absorption): 28.8 V
- Charge Voltage (Float): 27.6 V
- Storage Mode Voltage: 26.4 V
- Charge Current: 70 A
- Starter Battery Charge Current: 4 A
- Temperature Sensor: Included
Compatible Battery Types
- Lead-Acid Batteries: AGM, Gel, and Flooded types.
- Lithium-Ion Batteries: Compatible with lithium systems, supporting external Battery Management Systems (BMS).
Transfer Switch
- AC Transfer Capacity: 50 A
Efficiency
- Maximum Efficiency: 94%
- Zero Load Power Consumption:
- In AES Mode: 15 W
- In Search Mode: 8 W
Environmental Specifications
- Operating Temperature Range: -40°C to +65°C (fan-assisted cooling)
- Humidity (Non-condensing): Max. 95%
Physical Specifications
- Dimensions (HxWxD): 362 x 258 x 218 mm
- Weight: 19 kg
- Enclosure Material & Colour: Aluminium, Blue (RAL 5012)
- Protection Category: IP21
UGX 4,690,000 UGX 6,000,000
