Description

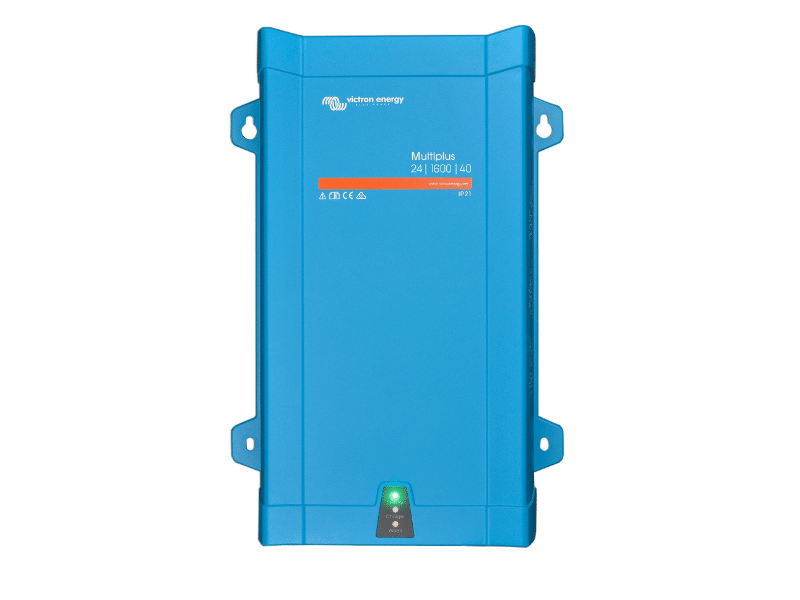

Victron MultiPlus 24/1600/40-16 230V Inverter/Charger
Technical Specifications
General / Inverter
- Nominal Battery Voltage: 24V DC
- Continuous Output Power: 1600VA / 1300W at 25 °C
- Continuous Output Power: 1200W at 40 °C; 800W at 65 °C
- Peak Power: 3000W (1 sec)
- Output Voltage: 230V ±2%
- Output Frequency: 50Hz ±0.1%
- Waveform: Pure Sine Wave
- Efficiency: 93–94%
- No-load Power Consumption: ~10W (8W in Search Mode)
Battery Charger
- Maximum Charge Current: 40A
- Absorption Voltage: 28.8V
- Float Voltage: 27.6V
- Storage Voltage: 26.4V
- Battery Temperature Sensor: Included
AC Input / Transfer Switch
- AC Input Voltage Range: 187–265V AC
- AC Input Frequency: 45–65Hz
- Maximum Input/Pass-through Current: 16A
- Transfer Time: <20ms
Communication & Control
- Interface: VE.Bus (parallel & 3-phase ready)
- Programmable Relay: Yes
- Remote On/Off: Yes
- Monitoring: GX devices (Cerbo GX, Color Control, etc.), VRM Portal, VictronConnect
Design & Protection
- Cooling: Fan assisted
- Enclosure: Aluminium, IP20
- Operating Temperature: –40 °C to +65 °C (derating above 40 °C)
- Humidity: Up to 95% (non-condensing)
- Altitude: Up to 2000m
- Protections: Overload, short circuit, battery high/low, over-temperature
Dimensions & Weight
- Size (H × W × D): 362 × 258 × 218 mm
- Net Weight: ~10 kg
Compliance & Standards
- Safety: EN-IEC 60335-1 / 60335-2-29, IEC 62109-1
- EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1/2
- Automotive: ECE R10 (24V models)
