-17%
Bifacial Solar Panels, Monocrystalline Solar Panels, Solar Panels
TW Solar 620‑Watt N‑type Monocrystalline Half‑cell Bifacial Solar Panel 66HD620; Voc 48.30 V, Vmp 41.55 V, Imp 14.93 A, Isc 15.95 A, 23.0 % Efficiency
Availability:
Out of stock

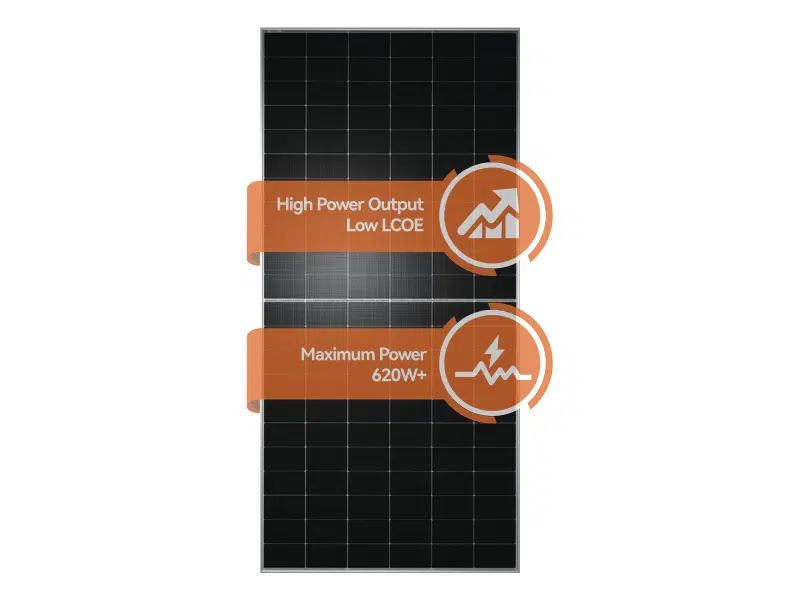

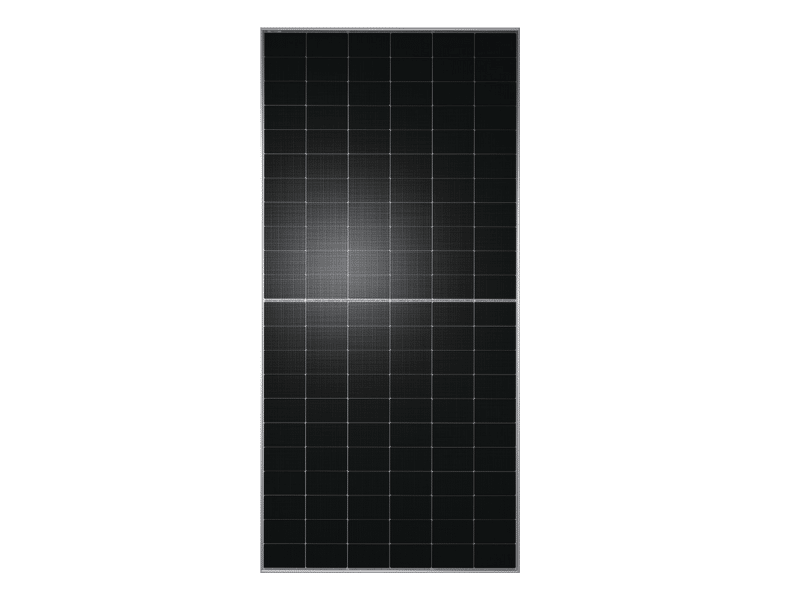

TW Solar 620‑Watt N‑type Monocrystalline Half‑cell Bifacial Solar Panel
Electrical Characteristics (STC):
- Maximum Power (Pₘₐₓ): 620 Wp
- Open‑Circuit Voltage (Vₒc): 48.30 V
- Voltage at Maximum Power (Vmp): 41.55 V
- Current at Maximum Power (Imp): 14.93 A
- Short‑Circuit Current (Isc): 15.95 A
- Module Efficiency: 23.0 %
Mechanical Parameters:
- Cell type: TNC (N‑type monocrystalline) in a 132‑cell (6×22 half‑cell) layout
- Dimensions: 2382 × 1134 × 30 mm (±2 mm)
- Weight: 32.5 kg
- Front glass: 2.0 mm AR‑coated, heat‑strengthened
- Rear glass: 2.0 mm heat‑strengthened
- Frame: Anodised aluminium alloy
- Junction box: IP68 rated with 3 diodes
- Output cable: 4.0 mm² (standard length +400 mm/–200 mm; custom ±1400 mm available)
- Wind load: 2400 Pa; Snow load: 5400 Pa
- Packaging: 36 panels per pallet; 720 panels per 40′ HC container
Key Features:
- N‑type cells for negligible LID and superior low‑light performance
- Half‑cell design to reduce resistive losses and improve shade tolerance
- Bifacial capability for up to +30 % additional rear‑side energy
- Robust build with tempered glass and IP68 junction box for harsh environments
- Excellent temperature coefficient (–0.30 %/°C) for higher yield in hot climates
UGX 490,000 UGX 590,000
Out of stock
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
Related products
-
Bifacial Solar Panels, Monocrystalline Solar Panels, Solar Panels
TW Solar 610-Watt N-type Monocrystalline Half-cell Bifacial Solar Panel 66HD610; Voc 48.70 V, Vmp 40.48 V, Imp 15.07 A, Isc 15.94 A, 22.6 % Efficiency
Bifacial Solar Panels, Monocrystalline Solar Panels, Solar PanelsTW Solar 610-Watt N-type Monocrystalline Half-cell Bifacial Solar Panel 66HD610; Voc 48.70 V, Vmp 40.48 V, Imp 15.07 A, Isc 15.94 A, 22.6 % Efficiency
TW Solar 610-Watt N-type Monocrystalline Half-cell Bifacial Solar Panel
- N-type bifacial half-cell technology delivers higher energy yield and superior efficiency.
- Dual-glass construction enhances module strength and long-term durability.
- Lower LCOE achieved through reduced degradation and excellent temperature performance.
- Performs reliably in hot, humid, and dusty conditions.
- Engineered for utility-scale, commercial, and industrial solar applications.
Technical Specifications
- Model: TWMNH-66HD610
- Cell Type: N-type Monocrystalline (TNC)
- Cell Configuration: 132 (6×22) Half-cells
- Maximum Power (Pmax): 610 W
- Open-Circuit Voltage (Voc): 48.70 V
- Voltage at Maximum Power (Vmp): 40.48 V
- Current at Maximum Power (Imp): 15.07 A
- Short-Circuit Current (Isc): 15.94 A
- Module Efficiency: 22.6 %
- Power Tolerance: 0 ~ +3 %
- Maximum System Voltage: 1500 V DC
- Maximum Series Fuse Rating: 30 A
- Operating Temperature: –40 °C to +70 °C
Mechanical Data
- Dimensions: 2382 × 1134 × 30 mm
- Weight: 32.5 kg
- Front Glass: 2.0 mm AR-coated semi-tempered glass
- Rear Glass: 2.0 mm semi-tempered glass
- Frame: Anodised aluminium alloy
- Junction Box: IP68 with 3 bypass diodes
- Cable: 4.0 mm² (+400 mm / –200 mm, customisable length)
- Wind / Snow Load: 2400 Pa / 5400 Pa
- Modules per Pallet: 36 pcs
- Modules per 40′ HC Container: 720 pcs
Performance & Reliability
- Temperature Coefficient of Pmax: –0.28 % / °C
- Temperature Coefficient of Voc: –0.24 % / °C
- Temperature Coefficient of Isc: +0.046 % / °C
- Bifaciality Coefficient (Pmax): 80 ± 5 %
- First-Year Power Degradation: ≤ 1 %
- Annual Degradation (after first year): ≤ 0.4 %
Expected Power Retention after 30 Years: ≈ 87.4 %
-
Certifications: IEC 61215 (2021), IEC 61730 (2023), IEC 62804 (PID), IEC 61701 (Salt Mist), IEC 62716 (Ammonia), IEC 60068-2-68 (Sand); ISO 9001, ISO 14001, ISO 45001, ISO 50001
SKU: n/a -
FREE DELIVERYMonocrystalline Solar Panels, Portable Solar Panels, Solar Panels
EcoFlow 110-Watt Portable Solar Panel; Foldable Design, IP68 Waterproof Rating, Adjustable Kickstand Case, 21.7V Voc, 18.5V Vmp, 6.0A Imp
-12%
Monocrystalline Solar Panels, Portable Solar Panels, Solar PanelsEcoFlow 110-Watt Portable Solar Panel; Foldable Design, IP68 Waterproof Rating, Adjustable Kickstand Case, 21.7V Voc, 18.5V Vmp, 6.0A Imp
EcoFlow 110-Watt Portable Solar Panel
- High Conversion Efficiency: With an industry-leading conversion rate of up to 23%, the panel maximizes energy capture from sunlight.
- Portable and Foldable Design: Weighing approximately 6 kg and featuring a foldable structure, it is easy to transport and set up, making it ideal for camping, hiking, and other outdoor adventures.
- Durable and Waterproof: The panel is constructed with durable materials and has an IP68 waterproof rating, ensuring it can withstand various weather conditions.
- Adjustable Kickstand Case: The included carrying case doubles as a kickstand, allowing users to position the panel at the optimal angle for maximum solar exposure.
- Rated Power: 110W
- Open Circuit Voltage (Voc): 21.7V
- Short Circuit Current (Isc): 6.3A
- Maximum Power Voltage (Vmp): 18.5V
- Maximum Power Current (Imp): 6.0A
- Dimensions (Unfolded): 20.2 x 62.5 x 1.0 inches
- Dimensions (Folded): 20.2 x 16.5 x 1.0 inches
- Weight: Approximately 6 kg
SKU: n/a -
Monocrystalline Solar Panels, Solar Panels
Jinko Solar 440‑Watt Monocrystalline Solar Panel JKM440N‑54HL4R‑V; Vmp 32.81 V, Imp 13.41 A, Voc 39.38 V, Isc 13.86 A, Module efficiency of 22.02 %
Monocrystalline Solar Panels, Solar PanelsJinko Solar 440‑Watt Monocrystalline Solar Panel JKM440N‑54HL4R‑V; Vmp 32.81 V, Imp 13.41 A, Voc 39.38 V, Isc 13.86 A, Module efficiency of 22.02 %
Jinko Solar 440‑Watt Monocrystalline Solar Panel JKM440N‑54HL4R‑V
Key Electrical Specifications (STC):
- Maximum Power (Pₘₐₓ): 440 Wp
- Maximum Power Voltage (Vₘₚ): 32.81 V
- Maximum Power Current (Iₘₚ): 13.41 A
- Open‑Circuit Voltage (Vₒc): 39.38 V
- Short‑Circuit Current (Iₛc): 13.86 A
- Module Efficiency: 22.02 %
Performance and Warranty:
- Positive power tolerance: 0 to +3 %
- Annual degradation: 0.40 % over 30 years
Mechanical Characteristics:
- Dimensions: 1,762 × 1,134 × 30 mm
- Weight: 22 kg
- Cell type: N‑type monocrystalline, 108 cells (2 × 54)
Key Features:
- SMBB technology for enhanced light trapping and reliability
- Hot 2.0 technology for lower LID/LETID and improved long‑term performance
- Excellent PID resistance
- Certified for 4,000 Pa wind load and 6,000 Pa snow load
SKU: n/a -
FREE DELIVERYMonocrystalline Solar Panels, Solar Panels
Jinko Solar 475-Watt 24V Monocrystalline Solar Panel JKM475N-60H; Voc 42.54V, Vmp 35.21V, Imp 13.49A, Isc 14.23A, Module efficiency of 22.01%
-24%Monocrystalline Solar Panels, Solar PanelsJinko Solar 475-Watt 24V Monocrystalline Solar Panel JKM475N-60H; Voc 42.54V, Vmp 35.21V, Imp 13.49A, Isc 14.23A, Module efficiency of 22.01%
Jinko Solar 475-Watt 24V Monocrystalline Solar Panel JKM475N-60H
- High Module Efficiency: 22.01% efficiency, optimising power generation on limited space.
- N-type Monocrystalline Cells: Enhanced performance and reduced degradation over time.
- SMBB (Small Multi-Busbar) Technology: Improves power efficiency by reducing internal resistance losses.
- Enhanced Durability: Resistant to high wind loads (up to 2400 Pa) and snow loads (up to 5400 Pa).
- PID Resistance: Anti-Potential Induced Degradation technology for long-term reliability.
- Advanced Temperature Coefficients: Minimises power loss in higher temperatures (-0.29%/°C for Pmax).
- Robust Construction: Features IP68-rated junction box, anodized aluminium frame, and anti-reflection coated glass.
- Extended Warranties: 12-year product warranty and 30-year linear power warranty.
Key data:
- Maximum Power (Pmax): 475 Wp
- Module Efficiency: 22.01%
- Maximum Power Voltage (Vmp): 35.21 V
- Maximum Power Current (Imp): 13.49 A
- Open-Circuit Voltage (Voc): 42.54 V
- Short-Circuit Current (Isc): 14.23 A
Mechanical Characteristics:
- Dimensions: 1903 mm x 1134 mm x 30 mm
- Weight: 24.2 kg
- Cell Type: N-type monocrystalline
- Number of Cells: 120 (6×20)
- Front Glass: 3.2 mm, anti-reflection coating, high transmission, low iron, tempered glass
- Frame: Anodized aluminium alloy
- Junction Box: IP68 rated
- Output Cables: TUV 1×4.0 mm², with lengths of (+): 400 mm and (-): 200 mm (customizable)
Performance Under Standard Test Conditions (STC):
- Operating Temperature Range: -40°C to +85°C
- Maximum System Voltage: 1000/1500 VDC (IEC)
- Maximum Series Fuse Rating: 25 A
- Power Tolerance: 0~+3%
- Temperature Coefficients:
- Pmax: -0.29%/°C
- Voc: -0.25%/°C
- Isc: +0.045%/°C
SKU: n/a
