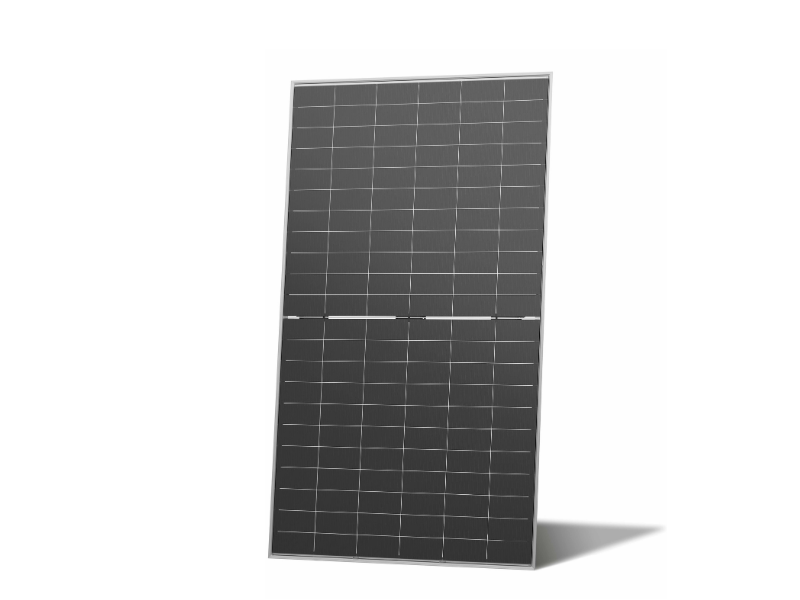

Jinko 725W Tiger Neo N-Type TOPCon Bifacial Dual Glass Solar Panel JKM725N-66HL5-BDV; 49.20Voc, 41.00Vmp, 17.69A Imp, 18.74A Isc, 23.34% Efficiency

• 725W rated maximum power
• 23.34% module efficiency
• Jinko Tiger Neo series
• N-Type TOPCon cell technology
• Bifacial power generation
• Dual-glass module construction
• 49.20V open-circuit voltage
• 41.00V maximum power voltage
• 17.69A maximum power current
• 18.74A short-circuit current
• HOT 3.0 technology
• SMBB cell technology
• 0 to +3% positive power tolerance
• 1500VDC maximum system voltage
• IP68-rated junction box

The Jinko JKM725N-66HL5-BDV is a 725W Tiger Neo solar panel built using N-Type TOPCon technology and a bifacial dual-glass construction.

It delivers 725W at standard test conditions, with a module efficiency of 23.34%. Its electrical characteristics include a 49.20V Voc, 41.00V Vmp, 17.69A Imp and 18.74A Isc, making these figures important when matching the panel with inverter MPPT voltage and current limits.

The bifacial design allows the rear of the module to generate additional energy from reflected sunlight. Under JinkoSolar's specified BNPI test condition, the 725W module reaches 800W, although its standard front-side nameplate rating remains 725W.

The panel combines 2.0mm anti-reflective front glass, 2.0mm heat-strengthened rear glass, an anodised aluminium frame and an IP68-rated junction box for long-term outdoor operation.

Electrical Specifications - STC

STC values are measured at 1000W/m² irradiance, 25°C cell temperature and AM 1.5.

Bifacial Performance

Under JinkoSolar's BNPI conditions of 1000W/m² front irradiance plus 135W/m² rear irradiance, the module is rated at:

Bifaciality coefficients are specified as 98 ±5% for Voc, 80 ±5% for Isc and 80 ±5% for Pmax.

Mechanical Characteristics

MC4 and MC4-EVO2 connectors are available upon request and subject to availability.

Operating Conditions

The module is certified to withstand a maximum static test load of 5400Pa on the front and 2400Pa on the rear.

Warranty and Long-Term Performance

JinkoSolar warranty:

• 12-year product warranty
• 30-year linear power warranty
• 1% first-year degradation
• 0.40% annual degradation thereafter
• 87.4% stated power retention after 30 years

Applications

The Jinko 725W Tiger Neo is suitable for:

• Commercial and industrial solar systems
• Ground-mounted solar plants
• Agricultural and productive-use installations
• Large hybrid solar and battery systems
• Solar carports and canopies
• Utility-scale PV installations

The panel has a relatively high operating current of 17.69A, so the inverter or charge controller must support the required current per MPPT or string input.

Its 49.20V Voc should also be considered when calculating the maximum number of panels that can be connected in series without exceeding the inverter's maximum DC input voltage.

At 2384 × 1303mm and 37.5kg, mounting structures should also be designed for the module's size and weight.

Because it is bifacial, rear-side energy gain depends on installation conditions such as mounting height, spacing, rear shading and the reflectivity of the surface beneath the panels.
