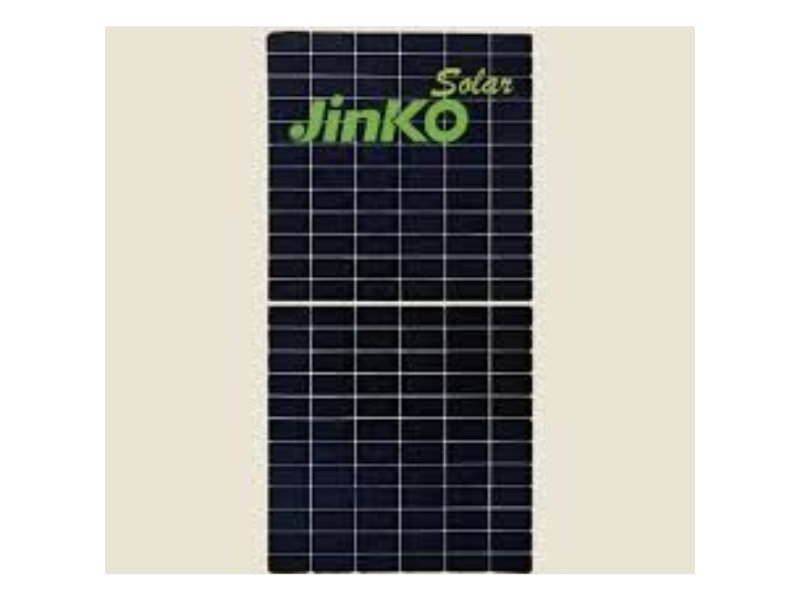

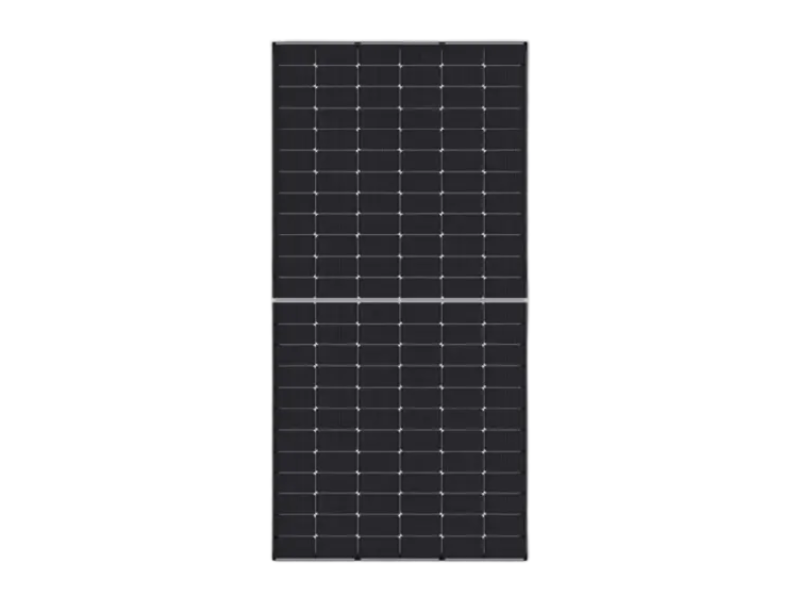

Jinko 585W Monocrystalline Solar Panel
The 585W N-Type TOPCon Monocrystalline Solar Panel is a high-efficiency photovoltaic module designed for reliable and large-scale solar energy generation. It is built to deliver strong power output while maintaining stable performance across different weather conditions and installation environments.
Using advanced N-Type TOPCon cell technology, the panel achieves higher efficiency, lower degradation rates, and better heat resistance compared to conventional P-type panels. This ensures more consistent energy production over the long term, even in hot climates like Uganda.
The half-cell architecture improves current flow within the panel, reducing power losses and enhancing performance under partial shading. This makes it more efficient in real-world installations where perfect sunlight conditions are not always available.
With a 585W output rating, fewer panels are required to build a high-capacity solar system, reducing installation space and balance-of-system costs. This makes it ideal for both residential and commercial solar projects.
Built with a robust aluminum frame, tempered glass, and IP68-rated junction box, the panel is engineered for durability in harsh outdoor environments, including strong wind, heavy rain, and high UV exposure.
General
- Solar panel type: Monocrystalline N-Type TOPCon
- Rated power: 585W
- Cell configuration: 144 half-cell layout (72×2)
- System voltage: up to 1500V DC
- Installation type: rooftop, ground-mount, solar farms
Electrical Performance (STC)
- Maximum power (Pmax): 585W
- Open circuit voltage (Voc): 51.7V – 54.7V
- Voltage at max power (Vmp): 42.7V – 44.9V
- Short circuit current (Isc): 14.0A – 14.4A
- Current at max power (Imp): 13.1A – 13.7A
- Module efficiency: ~22.6%
Construction
- Cell type: N-Type monocrystalline silicon
- Technology: TOPCon half-cell
- Front glass: Tempered anti-reflective glass
- Frame: Anodized aluminum alloy
- Junction box: IP68 waterproof rated
- Cables: UV-resistant solar cables
Dimensions & Weight
- Approx. size: 2170 × 1300 × 30–35 mm
- Weight: ~28–32 kg
Durability & Safety Features
- IP68 waterproof junction box for all-weather protection
- High wind load resistance for strong structural stability
- Snow load resistance for heavy environmental conditions
- Anti-PID degradation protection for long-term performance
- Corrosion-resistant aluminum frame
- Stable output under high-temperature conditions
- Fire-resistant construction materials
Use
- Residential rooftop solar systems
- Commercial and industrial solar installations
- Off-grid battery charging systems
- Hybrid inverter solar systems
- Solar farms and mini-grid projects
- High-capacity energy generation setups
Installation & Compatibility
- Compatible with MPPT charge controllers
- Works with hybrid and on-grid inverters
- Suitable for series and parallel string configurations
- Designed for 1500V DC solar systems
- Requires professional solar installation
- Ideal for large-scale solar arrays
