TBB RiiO Sun II 3kVA/3kW 24V All-in-One Solar Inverter; Built-in MPPT Charge Controller (3.6kWp/150Voc), Battery Charger, Pure Sine Wave Output, Transformer-Based Design.

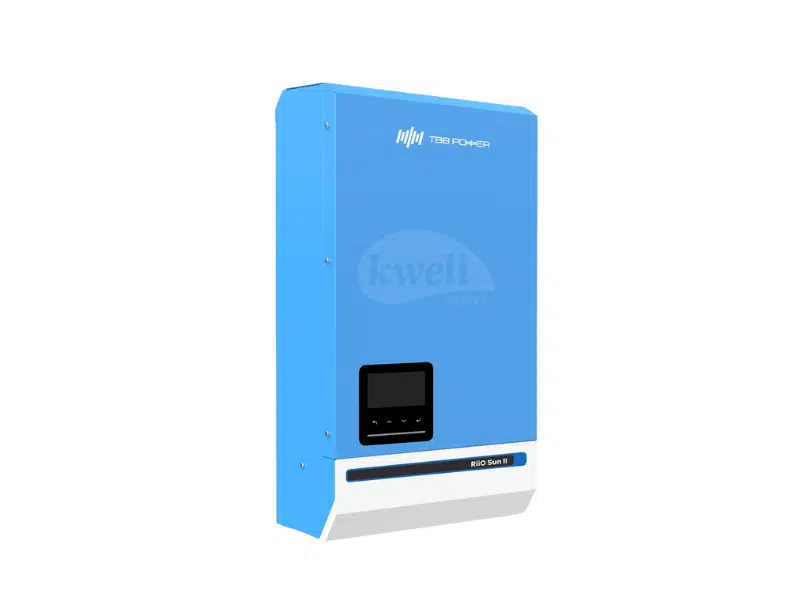

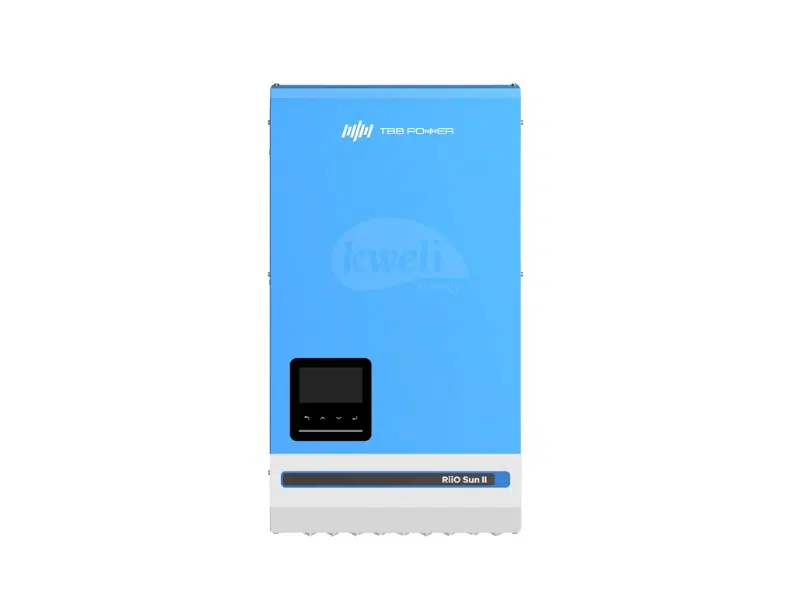

TBB RiiO Sun II 3kVA/3kW 24V All-in-One Solar Inverter

General Specifications:

• Nominal Battery Voltage: 24V
• Continuous Output Power: 3,000 VA (3kVA)
• Maximum Output Power: 3,000 W
• Peak Power: 6,000 W
• Surge Capacity: 200%
• AC Output Voltage: 230V ± 2%
• AC Output Frequency: 50 Hz / 60 Hz
• Harmonic Distortion: <2%
• Load Power Factor: 1.0

MPPT Solar Charge Controller:

• Maximum PV Open Circuit Voltage (Voc): 150V
• MPPT Voltage Range: 40–145V
• Maximum PV Input Current: 36A
• Maximum PV Short Circuit Current: 40A
• Maximum PV Input Power: 3,600 W
• MPPT Efficiency: 98%

Charger:

• Charge Voltage:
  • Absorption: 28.8V
  • Float: 27.6V
• Battery Compatibility: AGM, GEL, OPzV, Lead-Carbon, Li-ion, Flooded, Traction, Lithium
• Maximum AC Charge Current: 80A
• Temperature Compensation: Yes

Additional Features:

• Protection: Short circuit, overload, high/low battery voltage, high temperature, input voltage out of range, fan block.
• Transfer Time: 4 ms (<15 ms in energy-saving mode).
• Efficiency: 91% inverter efficiency.

Design and Usability:

• Cooling: Forced fan
• Protection Index: IP21
• Dimensions: 499 x 272 x 144 mm
• Net Weight: 18 kg
• Operating Temperature: -20°C to 65°C
• Relative Humidity: 95% (non-condensing)
