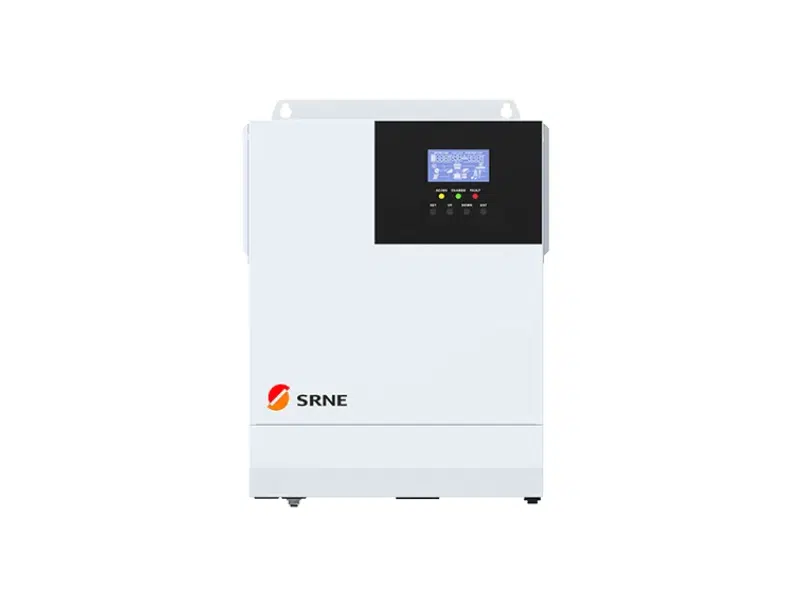

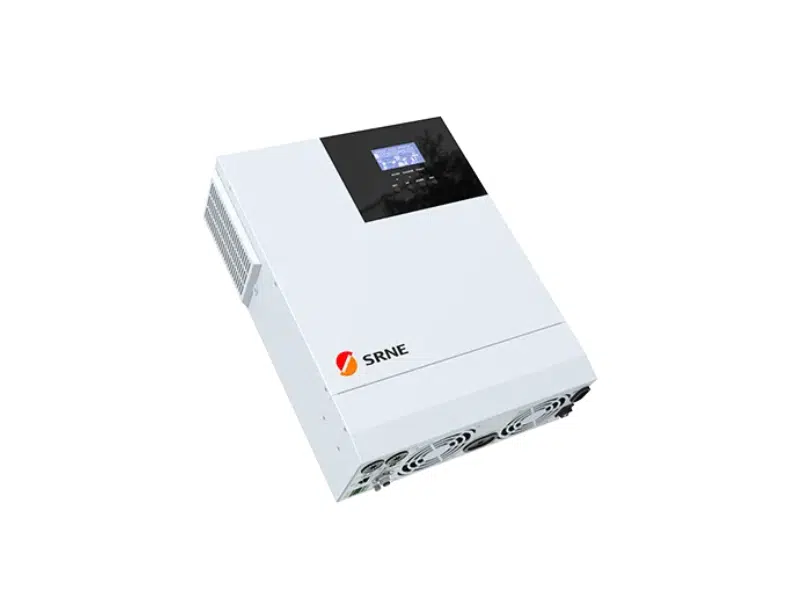

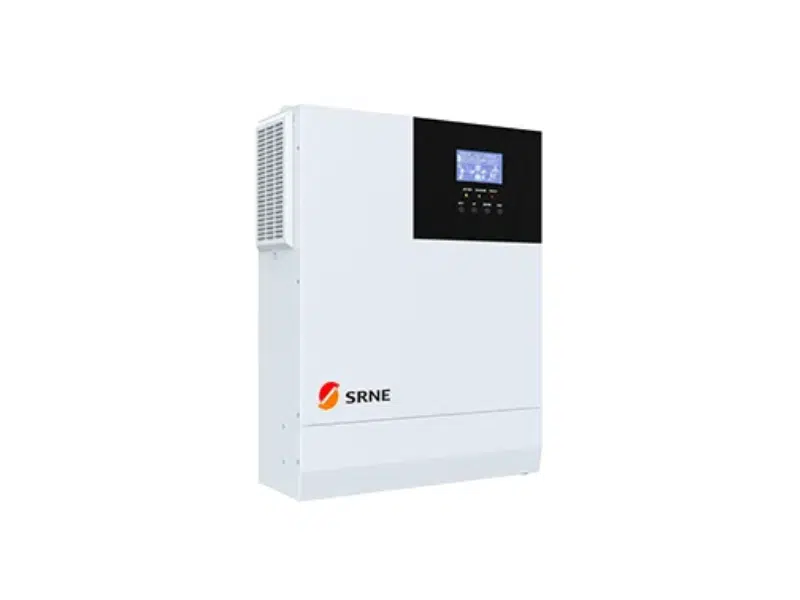

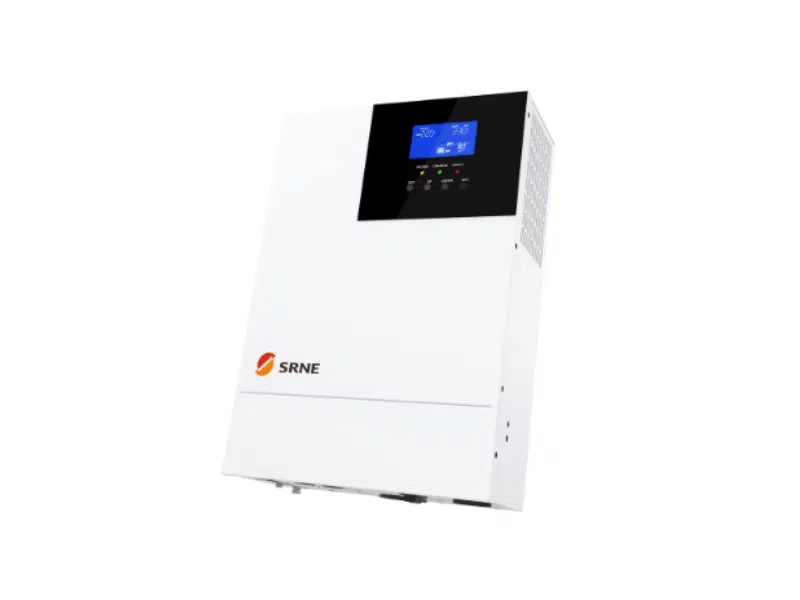

SRNE 1.5kVA/1.5kW 12V Hybrid Solar Inverter HF1215S60-108; Built-in 60A MPPT Solar Charge Controller 1000Wp/108Voc/15–90V, Pure Sine Wave Output

SRNE 1.5kVA/1.5kW 12V Hybrid Solar Inverter HF1215S60-108

• Rated Output Power: 1.5kW / 1.5kVA
• Battery Voltage: 12V (Compatible with Lead-Acid and Lithium batteries)
• Built-in MPPT Charge Controller: 60A
• Maximum PV Input Power: 1000W
• Maximum PV Open Circuit Voltage (Voc): 108Vdc
• MPPT Voltage Range: 15–90VDC
• Waveform: Pure Sine Wave Output
• Maximum AC/Generator Charging Current: 60A
• Switch Time (UPS Mode): 10ms typical
• Remote Monitoring Support: RS485, CAN, USB, Dry Contact (Wi-Fi/GPRS optional)
• 1 year free warranty

SRNE 1.5kVA/1.5kW 12V Hybrid Inverter HF1215S60-108

• Rated Output Power: 1,500W
• Maximum Peak Power: 3,000VA
• Output Voltage: 230Vac (Single-Phase)
• Output Frequency: 50/60Hz
• Waveform: Pure Sine Wave
• Switch Time: 10ms (typical)
• Load Motor Capacity: 1HP
• Topology: Transformerless

Battery

• Battery Type: Lead-Acid / Lithium / User-Defined
• Nominal Battery Voltage: 12V
• Battery Voltage Range: 10.5–15.5Vdc
• Maximum Solar Charging Current: 60A
• Maximum AC Charging Current (Grid/Generator): 60A
• Maximum Hybrid Charging Current: 120A

MPPT Solar Charge Controller

• Number of MPPTs: 1
• Maximum PV Array Power: 1000W
• Maximum PV Input Current: 28.5A
• Maximum PV Open Circuit Voltage (Voc): 108Vdc
• MPPT Voltage Range: 15–90Vdc
• MPPT Tracking Efficiency: 99.9%

Grid/Generator Input

• Input Voltage Range: 170–280Vac
• Input Frequency Range: 50/60Hz
• Bypass Overload Current: 9.7A

Efficiency & Protection

• Maximum Inverter Efficiency: 92%
• Protections:
  - PV current & power limit
  - Anti-reverse charging at night
  - Over/Under voltage (AC & battery)
  - Output short-circuit protection

Design & Connectivity

• Dimensions (mm): 357.5 × 235 × 103
• Weight: 5.5 kg
• Cooling: Fan Cooling
• Protection Degree: IP20 (Indoor use only)
• Operating Temperature: –10°C to 55°C
• Humidity: 0–100%
• Communication Ports: RS485 / CAN / USB / Dry Contact
• Optional Modules: Wi-Fi / GPRS
