SRNE 6.2kW 48V Hybrid Solar Inverter HYP4860S100-H; 2 MPPT, 9000W PV, 120-480V MPPT, 550V Voc, 100A, 6-Unit Parallel, WiFi/GPRS, IP20

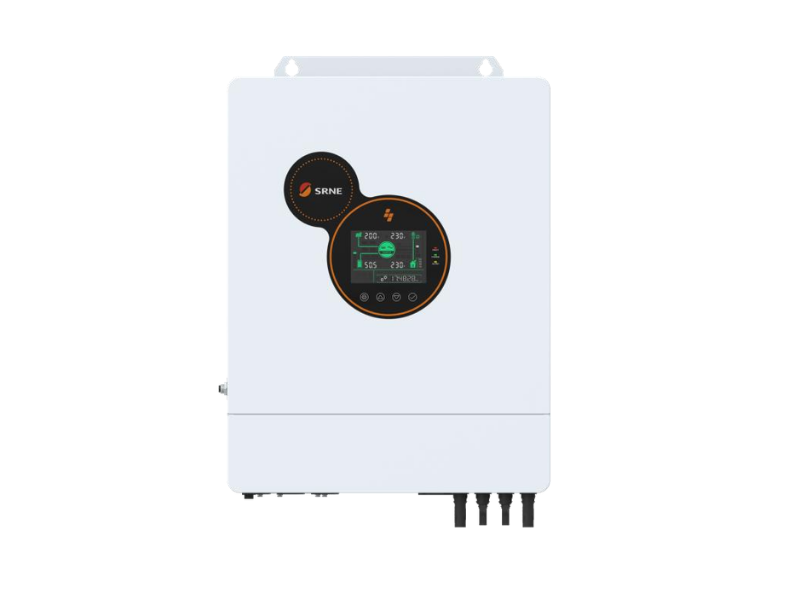

SRNE 6.2kW 48V Hybrid Solar Inverter HYP4860S100-H

• 6.2kW hybrid solar inverter for 48V battery systems
• Pure sine wave output for sensitive electronics
• 12,400VA peak power for short surge loads
• Supports lithium, lead-acid and user-defined battery settings
• 100A maximum solar charging current
• Dual MPPT solar input for flexible panel string design
• Supports up to 9000W PV input - 4500W + 4500W
• 120Vdc - 480Vdc MPPT operating voltage range
• High PV voltage support with 550Vdc + 550Vdc maximum Voc
• Parallel support, WiFi/GPRS monitoring option and IP20 indoor rating

SRNE 6.2kW 48V Hybrid Solar Inverter HYP4860S100-H

The SRNE HYP4860S100-H 6.2kW 48V Hybrid Solar Inverter is a high-capacity solar storage inverter for homes, offices, shops, clinics and small businesses that need reliable backup power, solar charging and battery management in one unit.

It delivers 6200W rated output power, 12,400VA peak power, and supports 48V lithium, lead-acid and user-defined batteries. With 2 MPPT trackers, up to 9000W total PV input, and a wide 120Vdc - 480Vdc MPPT operating range, it is suitable for stronger solar systems that need better PV design flexibility.

The inverter supports grid/generator charging, solar charging, BMS communication, external WiFi/GPRS monitoring options and parallel operation for expandable single-phase or three-phase system designs.

This is an inverter only. Batteries, solar panels and installation accessories are sold separately.

Best For

The SRNE HYP4860S100-H is best for homes, offices, shops, clinics, small businesses and solar backup systems that need a stronger 48V hybrid inverter with high solar input capacity. It is suitable for lights, TVs, fridges, routers, CCTV, computers, office equipment, selected pumps and other appliances within the inverter’s output limits.

Inverter Output

• Brand: SRNE
• Model: HYP4860S100-H
• Product type: Hybrid solar inverter / solar storage inverter
• Rated output power: 6200W / 6.2kW
• Peak power: 12,400VA
• Rated output voltage: 230Vac, L/N/PE single-phase
• Settable output voltage: 200/208/220/240Vac
• Rated AC frequency: 50Hz / 60Hz
• Output waveform: Pure sine wave
• Power factor: 1
• Maximum output current: 27A
• Transfer time: 10ms typical
• Motor load capacity: Up to 5HP
• Maximum inverter efficiency: More than 92%

Battery & Charging

• Rated battery input voltage: 48Vdc
• Minimum starting battery voltage: 44Vdc
• Battery voltage range: 40Vdc - 60Vdc
• Battery compatibility: Lithium battery, lead-acid battery and user-defined battery settings
• Maximum solar charging current: 100A
• Maximum grid/generator charging current: 80A
• Maximum hybrid charging current: 100A
• AC charging current: 0A - 80A, settable
• PV charging current: 0A - 100A, settable
• BMS communication: Supported for compatible lithium batteries

Solar Input

• MPPT trackers: 2
• Maximum PV array power: 4500W + 4500W
• Total PV input support: Up to 9000W
• Maximum PV input current: 18A + 18A
• Maximum PV open-circuit voltage: 550Vdc + 550Vdc
• MPPT operating voltage range: 120Vdc - 480Vdc
• MPPT tracking efficiency: Up to 99.9%
• PV reverse-polarity protection: Supported
• PV current/power limiting protection: Supported

Grid / Generator Input

• Rated AC input voltage: 220/230Vac
• Input voltage range: 90Vac - 280Vac / 170Vac - 280Vac, depending on operating mode
• Input frequency: 50Hz / 60Hz auto detection
• Maximum bypass overload current: 40A
• Generator input: Supported
• Generator charging current setting: 0A - 60A
• Generator input power setting: Up to 6000W

Parallel, Monitoring & Communication

• Parallel capacity: 1-6 units
• Single-phase parallel support: Yes
• Three-phase parallel support: Yes, with correct parallel configuration
• Communication: USB / RS485 / WiFi/GPRS / Dry contact
• CAN communication: Supported for compatible battery BMS
• WiFi/GPRS monitoring: External module option
• Dry contact: Supported for generator control

General Specifications

• Protection degree: IP20, indoor only
• Cooling method: Forced air cooling with variable-speed fan
• Operating temperature range: -10°C to 55°C
• Storage temperature range: -25°C to 60°C
• Humidity range: 5% to 95%, conformal coating protection
• Noise level: ≤60dB
• Dimensions: 510 × 350 × 133mm
• Weight: 12.45kg
• Certification: EN 62109-1, EN 62109-2, NRS097-2-1
• EMC certification: EN IEC61000-6-3

• This is an inverter only. Batteries and solar panels are not included.
• It requires a compatible 48V battery bank.
• Solar panels must be sized within the 9000W PV input, 550Vdc + 550Vdc Voc, 18A + 18A input current and 120Vdc - 480Vdc MPPT range.
• The IP20 rating means the inverter should be installed indoors or in a protected equipment room.
• WiFi/GPRS monitoring depends on the supplied or compatible external monitoring module.
• For lithium batteries, confirm BMS communication compatibility with the battery brand and model.
• Parallel and three-phase systems require careful design, correct settings and proper wiring.
• Heavy loads such as cookers, heaters, welding machines, large pumps and large motors should be assessed before connection.
• Installation should include correct DC/AC breakers, surge protection, earthing, cable sizing and inverter settings.
• Use a qualified solar technician for installation and configuration.
