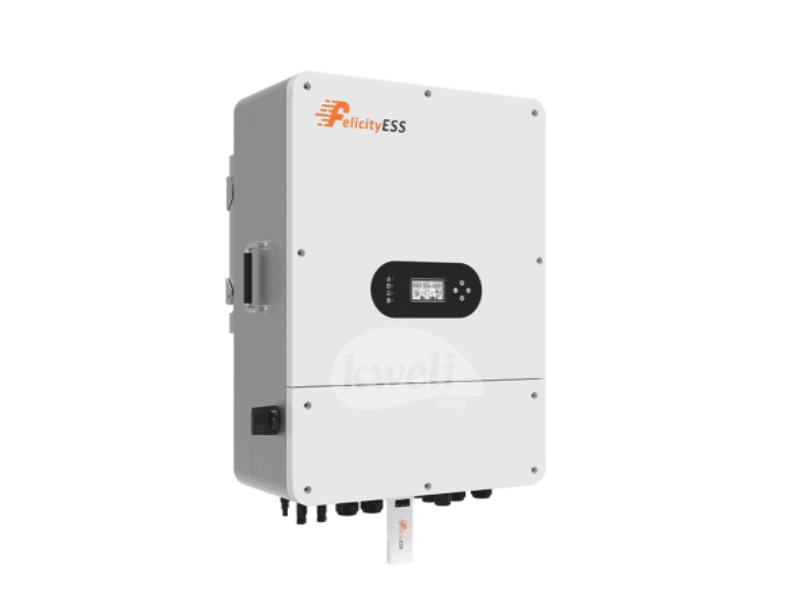

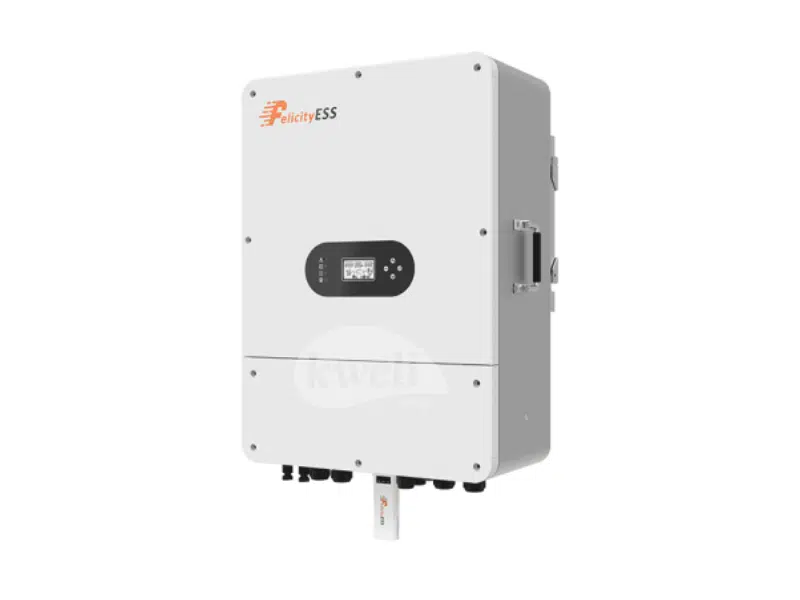

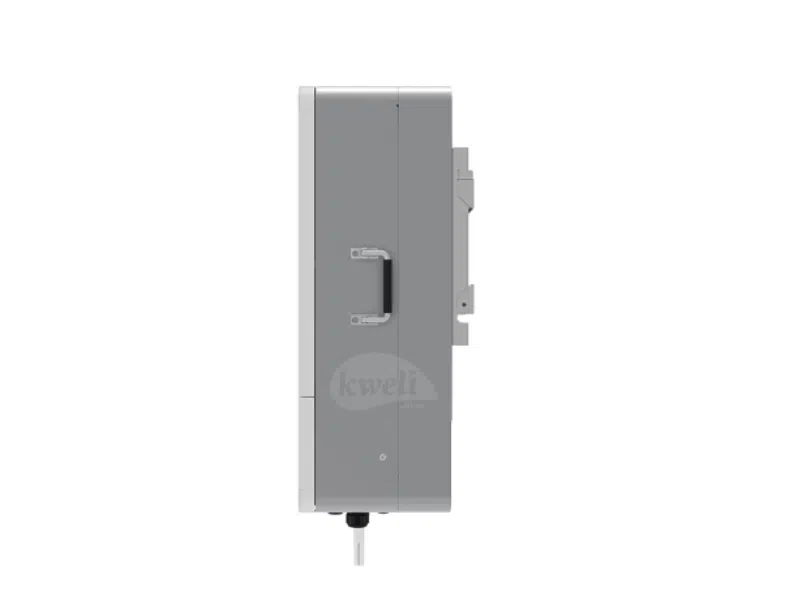

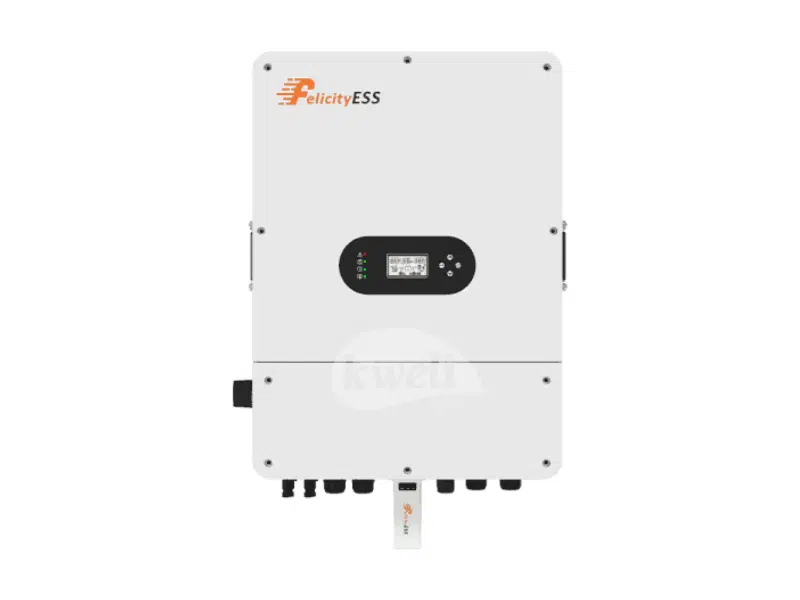

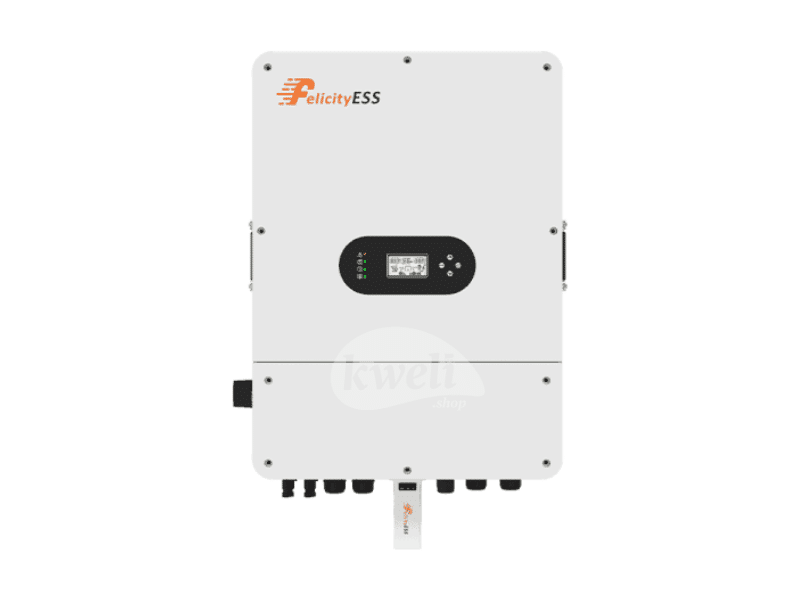

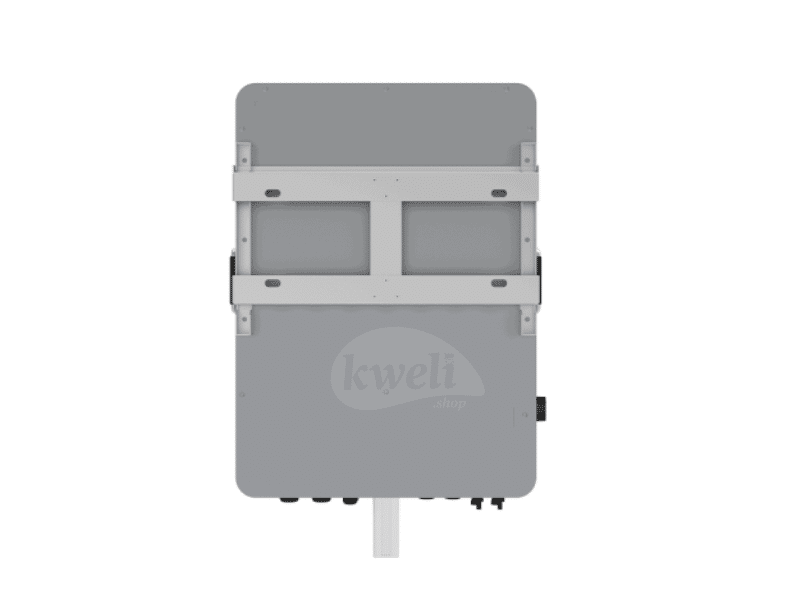

Felicity T-REX 10kVA/10kW 48V Three-Phase Hybrid Solar Inverter T-REX-10KLP3G01; 13kW Recommended PV, 900V Voc, 200–850V MPPT Range, 15A × 2 PV Input, Dual MPPT, 200A Battery Charge/Discharge, IP65

• Rated AC output: 10000VA / 10000W
• Battery voltage range: 40–60V (48V nominal)
• Phase: Three-phase
• Maximum recommended PV power: 13000W
• Maximum PV input voltage: 900V
• PV working voltage range: 160–900V
• MPPT operating voltage range: 200–850V
• Maximum PV input current: 15A + 15A
• MPPT trackers: 2
• Maximum battery charging current: 200A

Felicity T-REX 10kVA/10kW 48V Three-Phase Hybrid Solar Inverter T-REX-10KLP3G01 integrates solar PV charging, battery management and AC power conversion. Review the verified model-specific ratings below when sizing solar strings, battery systems and protection equipment.

General Specifications

• Rated AC output: 10000VA / 10000W
• Battery voltage range: 40–60V (48V nominal)
• Phase: Three-phase

Solar PV Input

• Maximum recommended PV power: 13000W
• Maximum PV input voltage: 900V
• PV working voltage range: 160–900V
• MPPT operating voltage range: 200–850V
• Maximum PV input current: 15A + 15A
• MPPT trackers: 2

Battery & Charging

• Maximum battery charging current: 200A
• Maximum battery discharging current: 200A

AC Input & Output

• Nominal AC output: 230/400Vac, three-phase

Key Functions

• IP65 protection
• Wi-Fi monitoring
• Generator energy storage
• Grid-tied and off-grid modes

Match the actual array cold-weather Voc, operating voltage, string current and PV wattage to these limits. Select compatible batteries, charge/discharge current capability, AC wiring, DC protection, surge protection and earthing. Confirm the exact hardware revision before commissioning.
