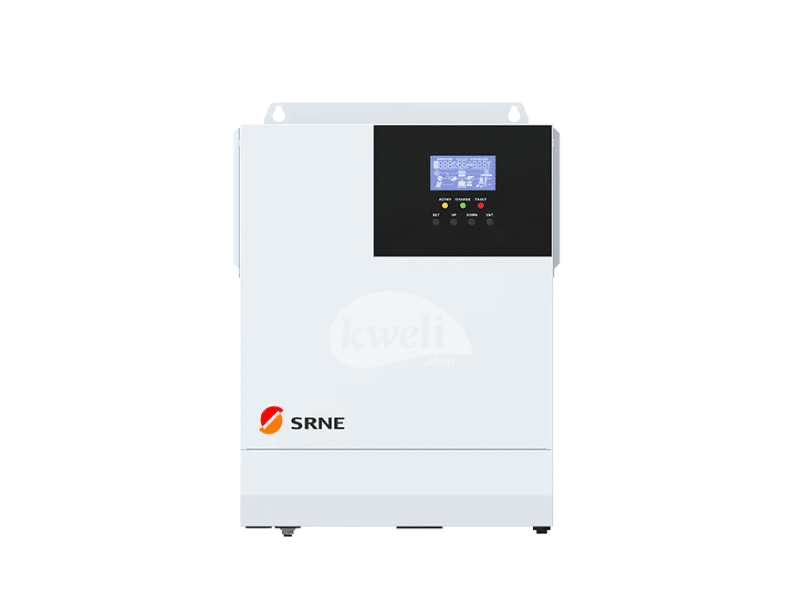

SRNE 3.3kW 24V Hybrid Solar Inverter HF2430S80-H
The SRNE HF2430S80-H is a 3.3kW single-phase off-grid solar storage inverter designed for small home, shop, office and backup power systems. It combines inverter output, solar charging and grid/generator battery charging in one unit, with pure sine wave 230Vac output and a 24V battery system.
It supports a high-voltage solar input of up to 500Vdc, 4,000W maximum PV array power and an 80A charging current, making it suitable for compact solar systems that need stable battery-backed power. SRNE also lists optional WiFi/GPRS monitoring support for remote system monitoring.
Inverter Output
- Model: HF2430S80-H
- Rated Output Power: 3,300W
- Maximum Peak Power: 6,000VA
- Rated Output Voltage: 230Vac, single-phase
- Load Motor Capacity: 2HP
- Rated Frequency: 50/60Hz
- Output Waveform: Pure sine wave
- Switch Time: 10ms typical
Battery
- Battery Type: Lead-acid / Lithium-ion / User-defined
- Rated Battery Voltage: 24V
- Battery Voltage Range: 20-33Vdc
- Maximum Grid/Generator Charging Current: 80A
- Maximum Hybrid Charging Current: 80A
Solar Input
- Number of MPPTs: 1
- Maximum PV Array Power: 4,000W
- Maximum PV Input Current: 13A
- Maximum PV Open Circuit Voltage: 500Vdc
- MPPT Voltage Range: 120-500Vdc
- MPPT Tracking Efficiency: 99.9%
Grid/Generator Input
- Input Voltage Range: 170-280Vac
- Input Frequency Range: 50/60Hz
- Bypass Overload Current: 30A
Efficiency
- MPPT Tracking Efficiency: 99.9%
- Maximum Efficiency: 92%
General Data
- Dimensions: 378 x 280 x 103mm
- Weight: 7.4kg
- Cooling Method: Fan cooling
- Protection Degree: IP20 - indoor use only
- Operating Temperature: -10°C to 55°C
- Moisture: 0-100%
- Communication: RS485 / CAN / USB / Dry Contact
- External Module: WiFi / GPRS optional
- Topology: Transformerless
- Warranty: 2 years
Protection Features
- PV current limit protection
- PV power limit protection
- PV night anti-reverse charging protection
- Utility input over-voltage protection
- Utility input under-voltage protection
- Battery over-voltage protection
- Battery under-voltage protection
- Load output short-circuit protection
- Radiator over-temperature protection
- Overload protection
- PV anti-reverse protection
- AC back-filling protection
- Bypass overcurrent protection
- Battery input overcurrent protection
- Charging short-circuit protection
Best For
The SRNE HF2430S80-H is best for small homes, shops, offices and light backup systems running moderate loads such as lights, TVs, routers, computers, small fridges and other basic appliances. Heavy appliances should be sized carefully before installation.
