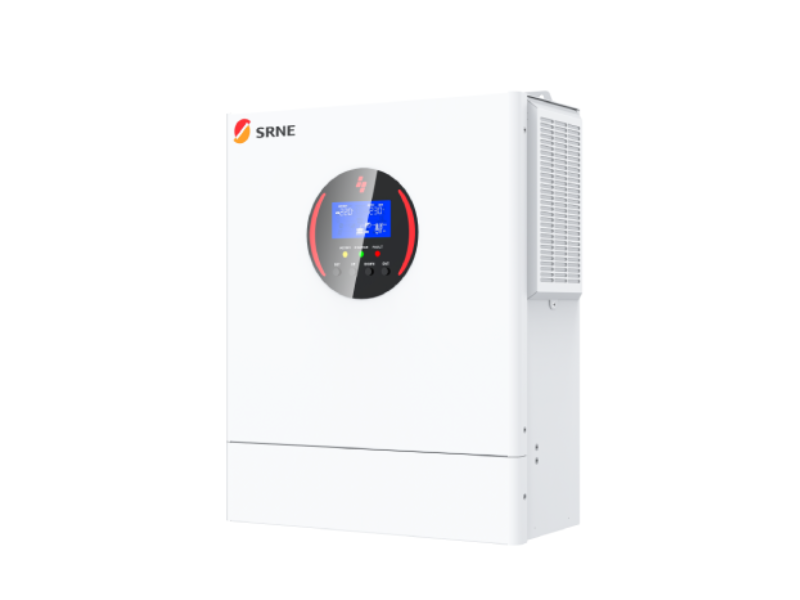

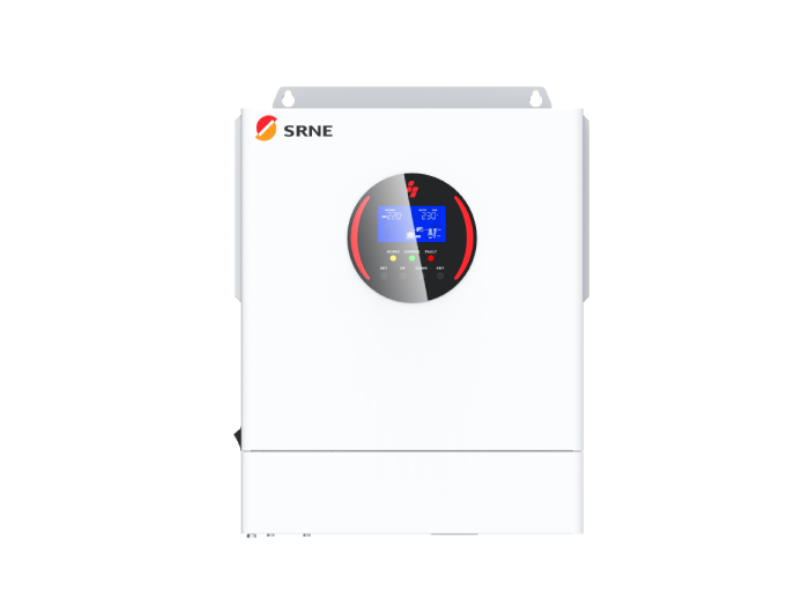

SRNE 5kW 48V Single-Phase Off-Grid Solar Inverter AFP4850S100-H; 7.5kW PV Input, 500V Voc, 60–450V MPPT Range, 22A PV Input, 100A Max Combined Charging

• Rated output: 5000W
• Nominal battery voltage: 48V
• Phase: Single-phase
• Waveform: Pure sine wave
• Maximum PV input power: 7500W
• Maximum PV open-circuit voltage: 500V
• MPPT operating voltage range: 60–450V
• Maximum PV input current: 22A
• MPPT trackers: 1
• Maximum combined PV + grid/generator charging: 100A

SRNE 5kW 48V Single-Phase Off-Grid Solar Inverter AFP4850S100-H integrates solar PV charging, battery power conversion and AC supply management. The model-specific ratings below must be observed when sizing the solar array and battery bank.

General Specifications

• Rated output: 5000W
• Nominal battery voltage: 48V
• Phase: Single-phase
• Waveform: Pure sine wave

Solar PV Input

• Maximum PV input power: 7500W
• Maximum PV open-circuit voltage: 500V
• MPPT operating voltage range: 60–450V
• Maximum PV input current: 22A
• MPPT trackers: 1

Battery & Charging

• Maximum combined PV + grid/generator charging: 100A
• Maximum grid/generator charging: 60A

AC Input & Output

• Nominal AC output: 230Vac

Key Functions

• Pure sine wave output
• MPPT solar charging
• Generator charging

Confirm actual PV array cold-weather Voc, PV power, MPPT operating voltage and input current, and ensure compatible battery voltage, battery current capacity, AC wiring and protective devices. Match the manufacturer datasheet to the supplied model revision.
