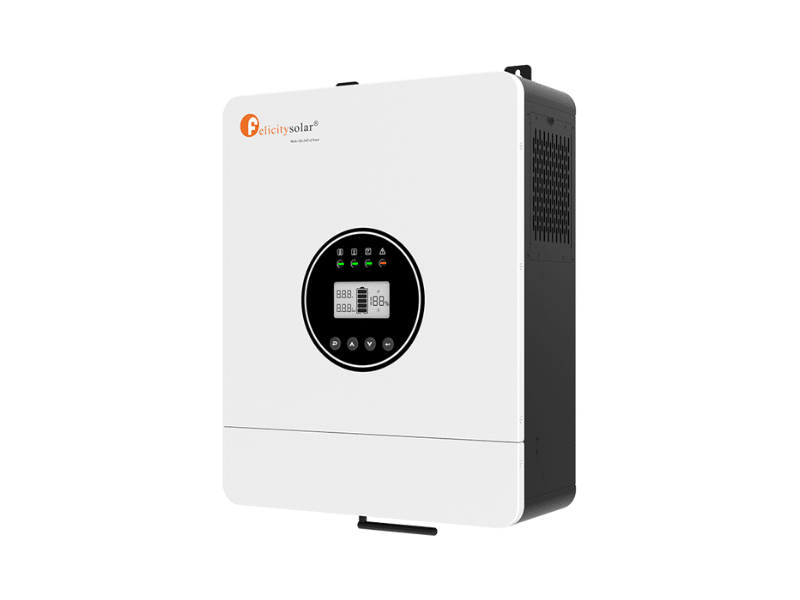

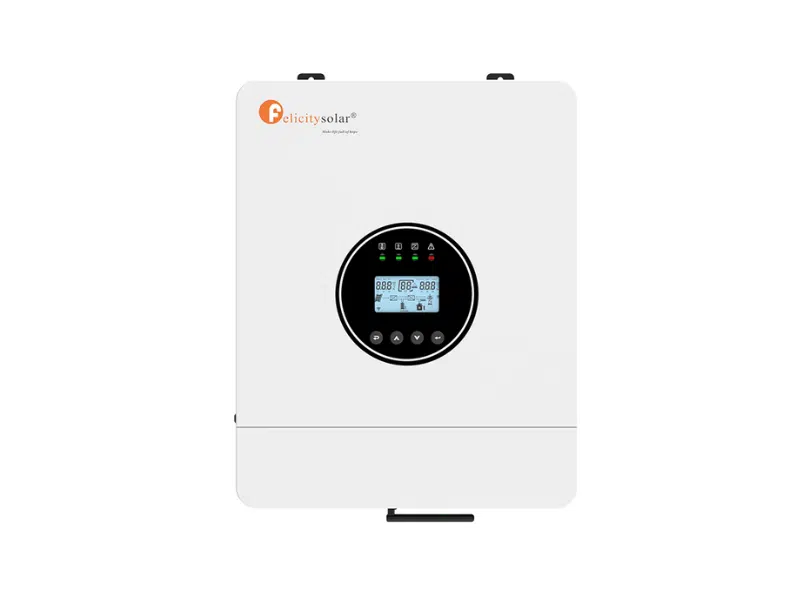

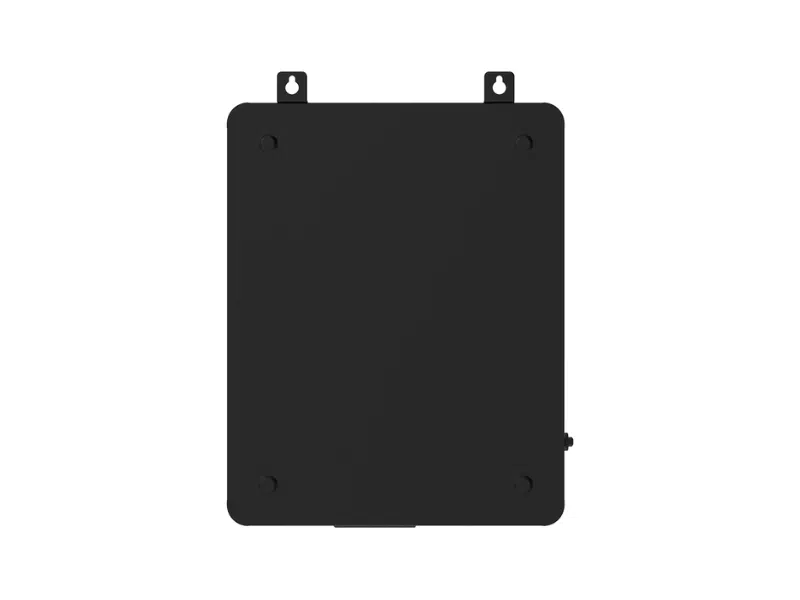

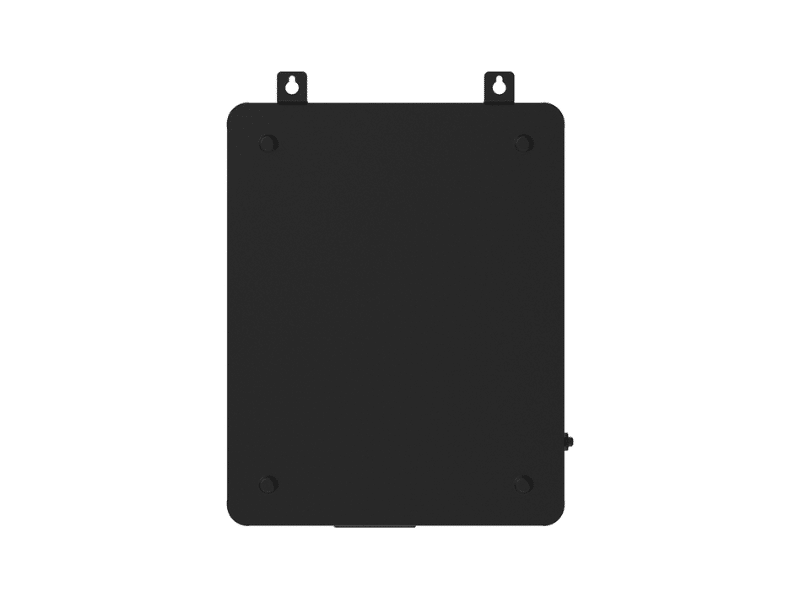

Felicity 6kVA/6kW 48V Single-Phase Off-Grid Solar Inverter IVEM6048-II; 7.5kW PV Input, 500V Voc, 90–500V PV Working Range, 27A PV Input, 120A Max Combined Charging, Built-in Wi-Fi

• Rated output power: 6000VA / 6000W
• Nominal battery voltage: 48V
• Phase: Single-phase
• Output waveform: Pure sine wave
• Maximum PV input power: 7500W
• Maximum PV open-circuit voltage: 500V
• PV working voltage range: 90–500V
• Maximum PV input current: 27A
• Solar charge controller: Built-in MPPT
• Maximum combined PV + grid charging current: 120A

Felicity 6kVA/6kW 48V Single-Phase Off-Grid Solar Inverter IVEM6048-II integrates solar PV charging, battery management and AC power conversion. Review the verified model-specific ratings below when sizing solar strings, battery systems and protection equipment.

General Specifications

• Rated output power: 6000VA / 6000W
• Nominal battery voltage: 48V
• Phase: Single-phase
• Output waveform: Pure sine wave

Solar PV Input

• Maximum PV input power: 7500W
• Maximum PV open-circuit voltage: 500V
• PV working voltage range: 90–500V
• Maximum PV input current: 27A
• Solar charge controller: Built-in MPPT

Battery & Charging

• Maximum combined PV + grid charging current: 120A

AC Input & Output

• Nominal AC output: 230Vac
• AC input: Utility / generator

Key Functions

• Built-in Wi-Fi monitoring
• Parallel capability up to 12 units with a battery connected
• Lithium battery activation
• Battery-free operation where supported
• Generator / smart output port

Match the actual array cold-weather Voc, operating voltage, string current and PV wattage to these limits. Select compatible batteries, charge/discharge current capability, AC wiring, DC protection, surge protection and earthing. Confirm the exact hardware revision before commissioning.
