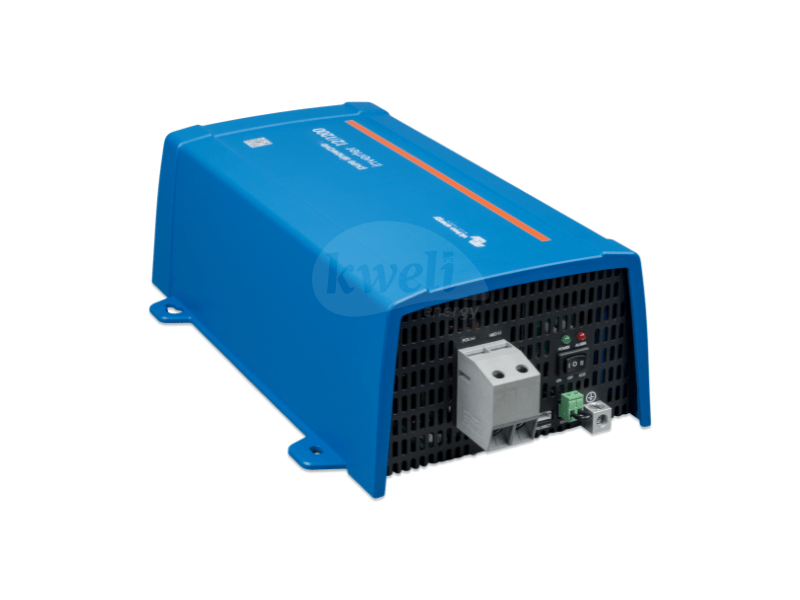

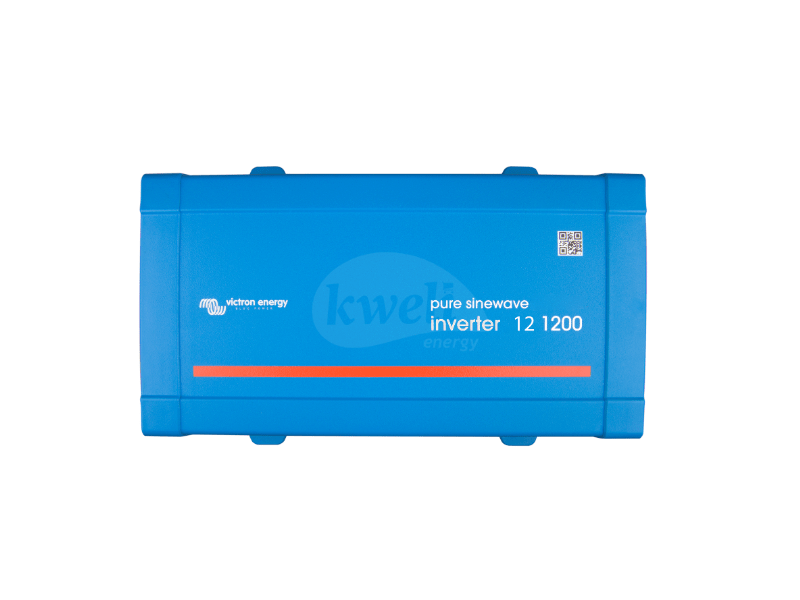

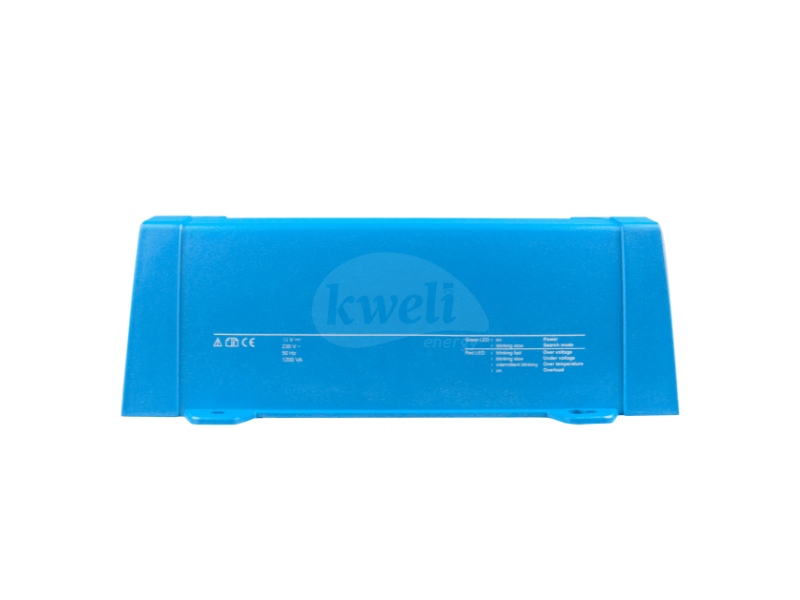

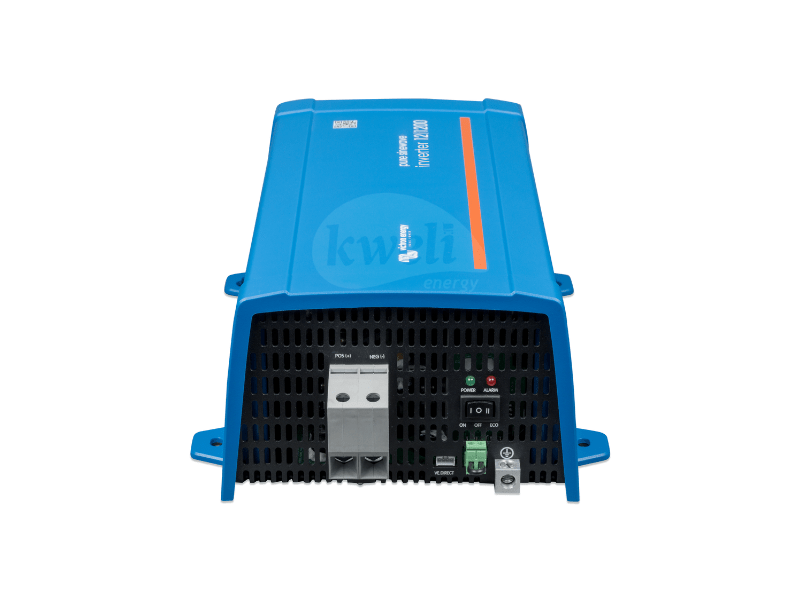

Victron Energy Phoenix Inverter 12V 1200 VA, 230V AC; 1kW at 25°C, Pure Sinewave Inverter, NEMA GFCI, Metal Casing

Victron Quattro 48/10000/140-100/100 Inverter Charger

• Two AC Inputs with Integrated Transfer Switch: This can be connected to two independent AC sources (e.g., a public grid and a generator) and will automatically connect to the active source.
• Two AC outputs:
  • The main output has no-break functionality, ensuring an uninterrupted power supply to connected loads.
  • The second output is active only when AC is available, useful for non-critical loads.
• Split Phase and Three Phase Capabilities:
  • Can be configured for split-phase AC output.
  • Can be connected in a three-phase configuration, with up to 4 sets of three 15 kVA units for extensive power requirements.
• PowerControl and PowerAssist Features:
  • PowerControl manages limited generator or grid power.
  • PowerAssist boosts power by supplementing it with battery power during peak loads.
• Solar Integration: Can be used in off-grid or grid-connected PV systems, providing AC power even during a grid failure.
• Remote Monitoring and Control: Supports various monitoring and control options via smartphone, tablet, laptop, or the VRM online portal.

Specifications:

• Battery Voltage: 48 V
• Continuous Output Power:
  • At 25 °C: 10,000 VA / 8,000 W
  • At 40 °C: 6,500 W
  • At 65 °C: 4,500 W
• Peak Power: 20,000 W
• Maximum Continuous Output Current: 37 A
• Efficiency: Up to 96%
• Charger Output:
  • Charge Voltage Absorption: 57.6 V
  • Charge Voltage Float: 55.2 V
  • Storage Mode: 52.8 V
  • Charge Current: 140 A
• Dimensions: 470 x 350 x 280 mm
• Weight: 51 kg
• Operating Temperature: -20 to +60 ˚C
• Protection: Includes protection features such as short circuit, overload, battery voltage too high/low, and temperature protection.
