-17%
FREE DELIVERY
Hybrid Inverters, Inverters, Luminous Inverters, Solar, Backup & UPS

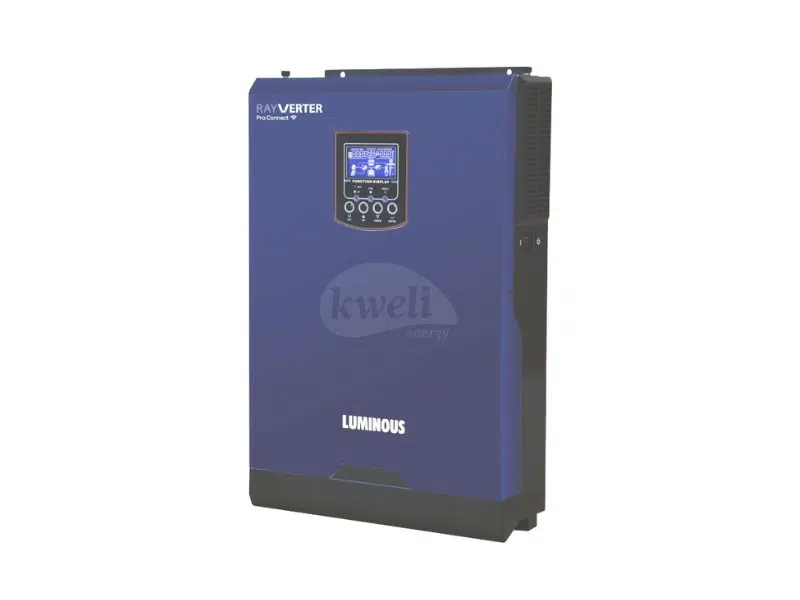

Luminous Rayverter Pro Connect 5KVA/5KW 48V Off-Grid Solar Inverter; Built-in 100A MPPT Solar Charge Controller, 5000W PV Input, 500V Voc, 120-450V MPPT Range, Pure Sine Wave Output
Luminous Rayverter Pro Connect 5KVA/5KW 48V Off-Grid Solar Inverter Specifications:
- Rated Power: 5000VA / 5000W
- AC Output Voltage: 230VAC ± 5%
- Output Waveform: Pure Sine Wave
- Frequency Range: 50Hz/60Hz (Auto Sensing)
- Efficiency (Peak): 93%
- Transfer Time:
- 10ms (For Personal Computers)
- 20ms (For Home Appliances)
Battery & Charging:
- Nominal Battery Voltage: 48VDC
- Overcharge Protection: 63VDC
- Maximum AC Charge Current: 100A
- Battery Equalization Function: Yes (Optimizes Battery Performance & Extends Lifecycle)
MPPT Solar Charge Controller:
- MPPT Charge Controller Type: MPPT
- Maximum PV Input Power: 5000W
- MPPT Voltage Range: 120-450VDC
- Maximum PV Open Circuit Voltage (Voc): 500VDC
- Maximum PV Input Current: 100A
- Maximum Solar Charge Current: 100A
Input & Protection:
- Selectable Voltage Range:
- 90-280VAC (For Home Appliances)
- 170-280VAC (For Personal Computers)
- Surge Power: 10,000VA
- Protection Features:
- Overload Protection
- Short Circuit Protection (Air Switch Protection)
- Built-in Anti-Dust Kit
Design & Usability:
- Cooling System: Air Cooling
- Communication Interface: RS232 / RS485 (Optional WiFi)
- Operating Temperature: -10°C to 50°C
- Storage Temperature: -15°C to 60°C
- Humidity: 5% to 95% Relative Humidity (Non-Condensing)
- Dimensions (D × W × H): 120 × 300 × 440 mm
- Net Weight: 10.0 kg
UGX 2,490,000 UGX 3,000,000
