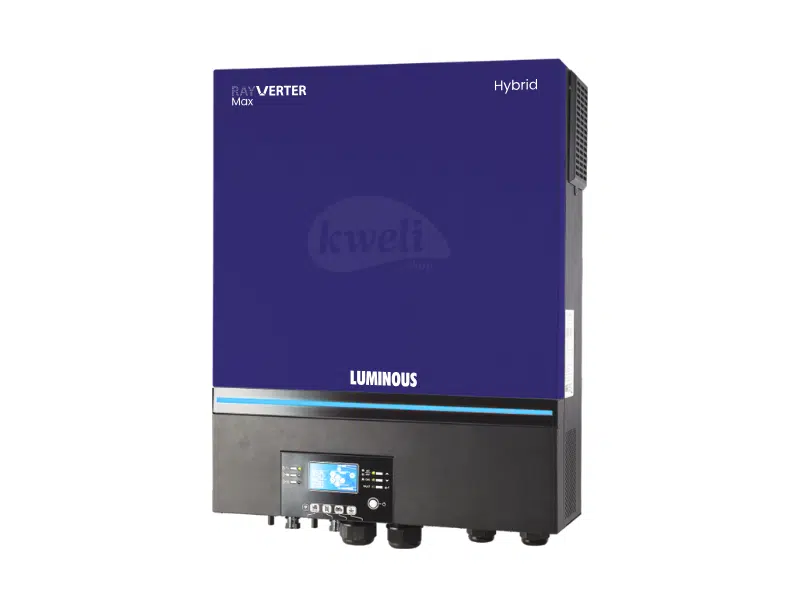

Luminous Rayverter MAX 11KVA/11KW 48V Hybrid Solar Inverter; Built-in 150A MPPT Solar Charge Controller, 11000W PV Input, 500V Voc, 90-450V MPPT Range, Pure Sine Wave Output

Luminous Rayverter MAX 11KVA/11KW 48V Hybrid Solar Inverter Specifications:

General Specifications:

• Rated Power: 11000VA / 11000W
• AC Output Voltage: 230VAC ± 5%
• Output Waveform: Pure Sine Wave
• Frequency Range: 50Hz/60Hz (Auto Sensing)
• Efficiency (Peak): 93%
• Transfer Time:
  • 10ms (For Personal Computers)
  • 20ms (For Home Appliances)
• No Load Power Consumption: <70W
• Surge Power: 22000VA

Battery & Charging:

• Nominal Battery Voltage: 48VDC
• Floating Charge Voltage: 54VDC
• Overcharge Protection: 63VDC
• Maximum AC Charge Current: 150A
• Maximum Charge Current: 150A
• Battery Compatibility: Lead-Acid, GEL, Flooded, Lithium

MPPT Solar Charge Controller:

• MPPT Charge Controller Type: MPPT
• Maximum PV Input Power: 11000W
• MPPT Voltage Range: 90-450VDC
• Maximum PV Open Circuit Voltage (Voc): 500VDC
• Maximum PV Input Current: 150A
• Maximum Solar Charge Current: 150A

Input & Protection:

• Selectable Voltage Range:
  • 90-280VAC (For Home Appliances)
  • 170-280VAC (For Personal Computers)
• Parallel Capability: Yes, up to 6 units
• Protection Features:
  • Overload Protection
  • Short Circuit Protection
  • Smart Battery Management
  • Cold Start Function

Design & Usability:

• Cooling System: Air Cooling
• Communication Interface: USB / RS232 / RS485 / WiFi / Dry Contact
• Operating Temperature: -10°C to 50°C
• Storage Temperature: -15°C to 60°C
• Humidity: 5% to 95% Relative Humidity (Non-Condensing)
• Compliance: CE Certified

Physical Specifications:

• Dimensions (D×W×H): 147.4 × 432.5 × 553.6 mm
• Net Weight: 18.4 kg
