Description

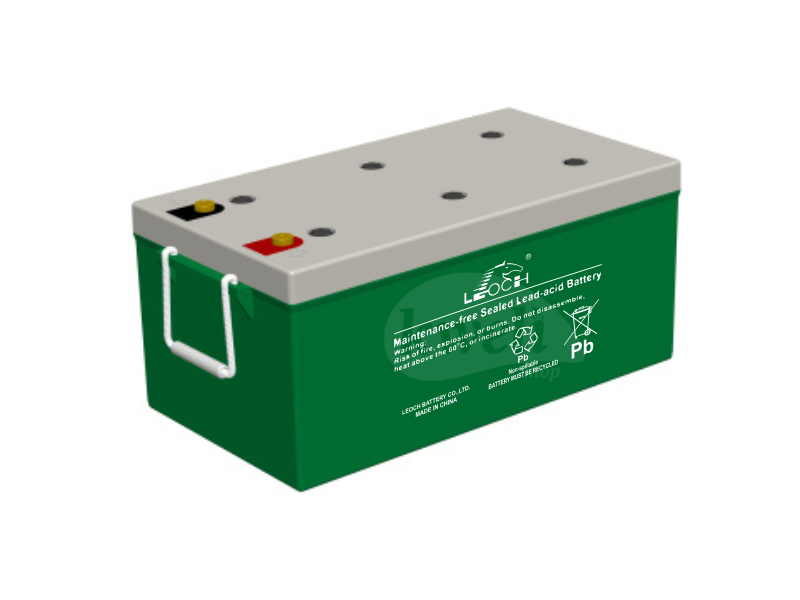

Leoch 200AH 12V Lead-Carbon Battery LRC12-200 LRC Series
-
Voltage & capacity:
- Rated Voltage: 12V
- Nominal Capacity: 200Ah
-
Dimensions & Weight:
- Length: 522mm
- Width: 268mm
- Height (including terminal): 226mm
- Approx. Weight: 75.6kg (166.7lbs)
-
Performance:
- Depth of Discharge (DoD):
- Optimised for 60% DoD, delivering 3,200 cycles.
- Suitable for Partial State of Charge (PSoC) operations, enabling enhanced cycle life even under irregular charging/discharging conditions.
- Shallower DoDs significantly improve cycle life, while deeper DoDs provide higher capacity usage but reduced cycles.
- Self-Discharge Rate: ≤3.5% per month at 25°C
- Operating Temperature Range:
- Discharge: -20°C to 55°C
- Charge: -20°C to 40°C
- Storage: -20°C to 50°C
- Depth of Discharge (DoD):
-
Charging:
- Maximum Charging Current: 60A (0.3C)
- Charge Voltage (Cycle Use): 2.35-2.40V/cell
- Temperature Coefficient: -5mV/cell/°C
-
Applications:
- Renewable energy storage for solar, wind, and hybrid systems.
- Uninterruptible Power Supplies (UPS).
- Peak load shifting and grid frequency adjustment systems.
- New energy communication base stations and IDC applications.
-
Construction & Standards:
- Case Material: ABS (UL94 HB or V-0 optional)
- Compliance: IEC 61427, BS EN 61427
- Certifications: ISO 9001, ISO 14001, IATF16949, ISO 45001
-
Safety & Durability:
- Enhanced with Super Carbon technology to support improved performance under high cycling and PSoC conditions.
- Leak-proof design and high-strength, high-temperature-resistant casing.
- 100% tested for sealing integrity to ensure safety.
-
Cycle Life:
- 3,200 cycles at 60% DoD, making it highly durable for long-term energy storage applications.
- Designed for optimal performance in systems where deep cycling or frequent charging/discharging is required.
