Description

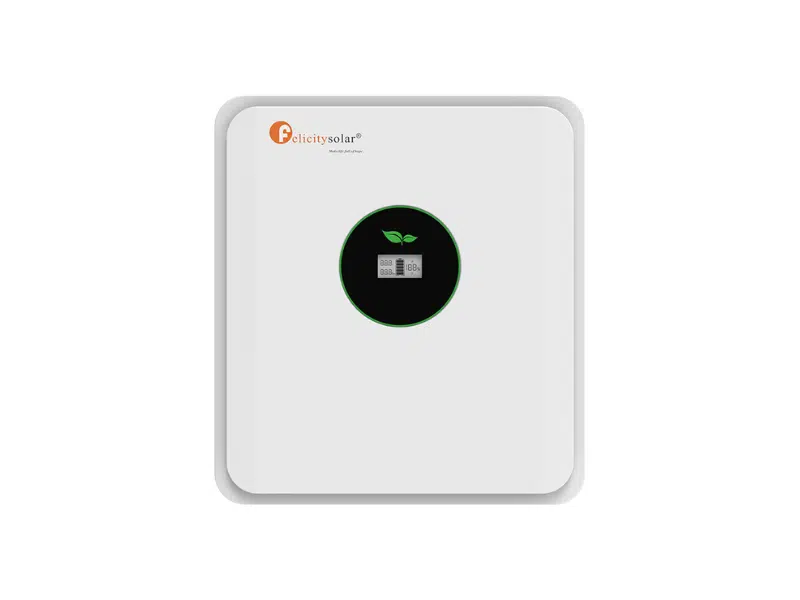

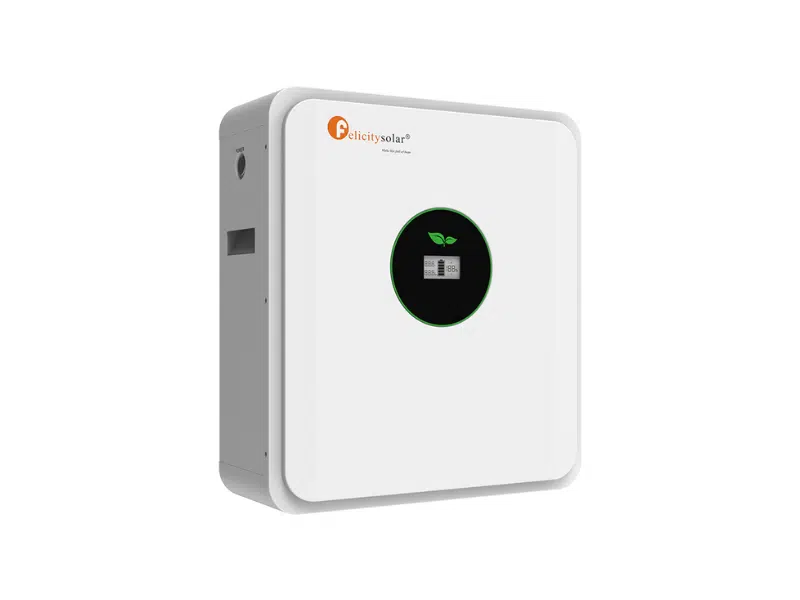

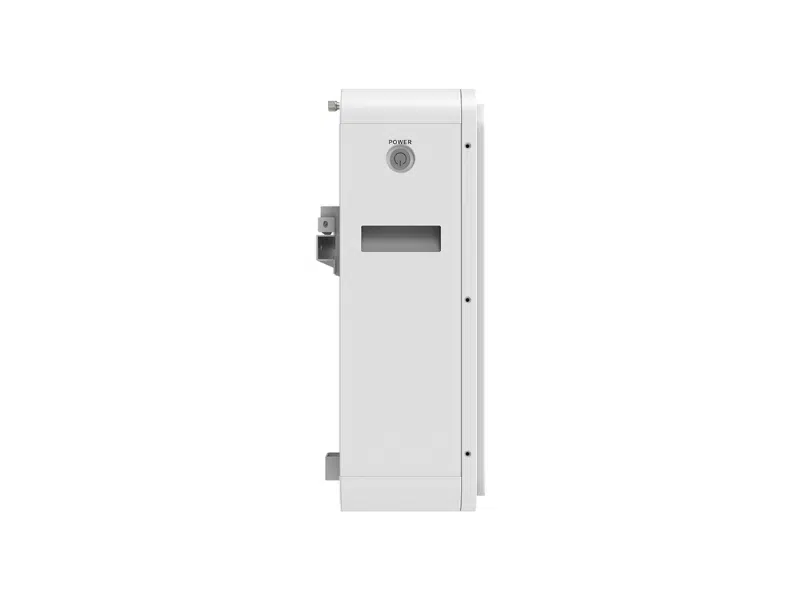

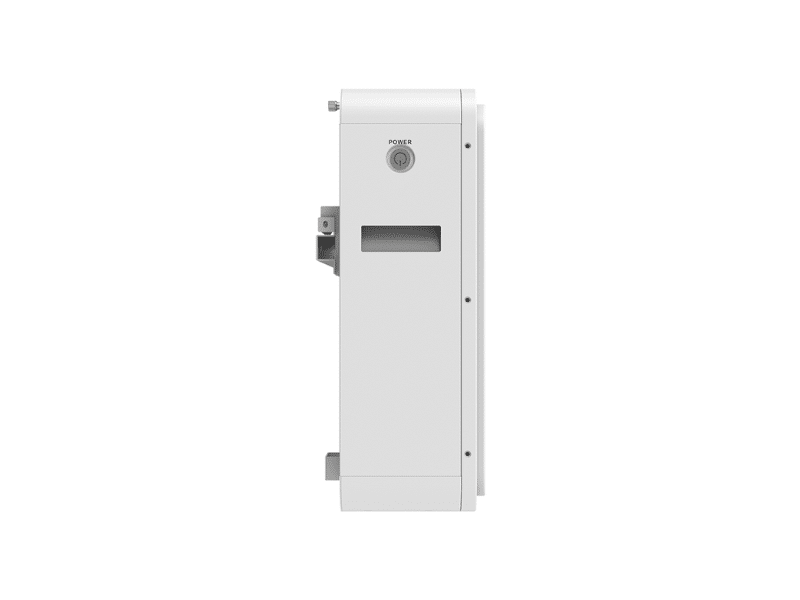

Felicity 100Ah 24V 2.56kWh Lithium Solar Battery FLA24100

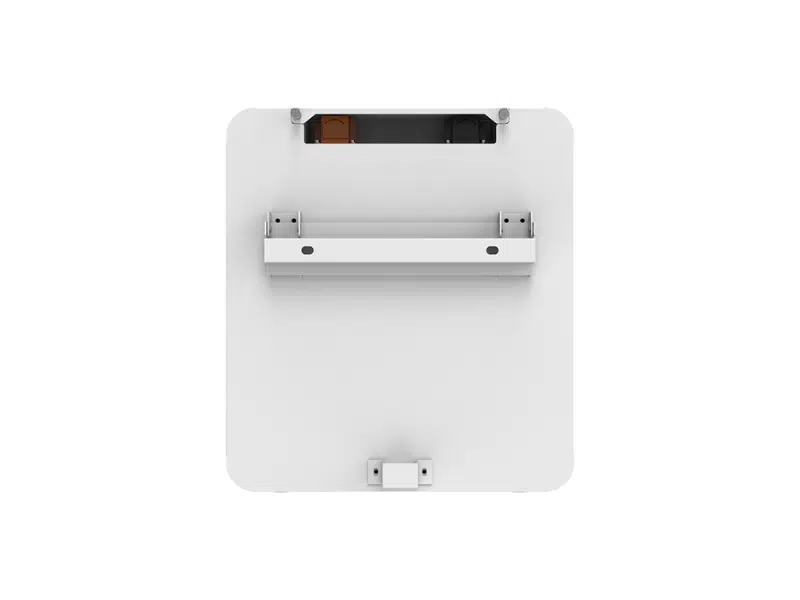

- Installation: Wall-mounted or Floor-mounted
- Display: LCD + LED indicators

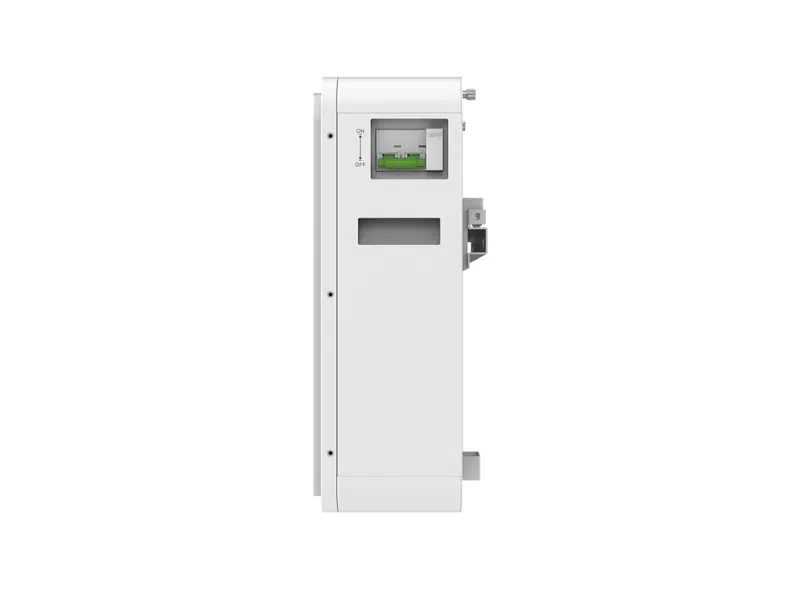

- Protection: Built-in smart BMS, breaker, and fuse
- Protection Level: IP21 (indoor use)
- Net Weight: 28kg
- Gross Weight: 31kg
- Product Dimensions: 454 × 380 × 154mm
- Package Dimensions: 525 × 445 × 225mm
Technical Specifications
- Model: FLA24100
- Capacity: 2.56kWh
- Battery Type: LiFePO₄ (Lithium Iron Phosphate)
- Nominal Voltage: 25.6V (24V system)
- Operating Voltage: 22.4V – 28.8V
- Recommended Charge/Discharge Current: ≤100A
- Recommended Charge/Discharge Power: ≤2,500W
- Maximum Charge/Discharge Current (15s): 150A
- Maximum Power (15s): 3,750W
- Depth of Discharge (DoD): ≥95%
- Cycle Life: ≥6,000 cycles @25°C, 0.2C, 80% DoD
- Scalability: Up to 15 units in parallel (38.4kWh total)
- Communication: RS485 / CAN, Built-in WiFi
Recommended Settings
- Max Charging Voltage: 28.8V
- Floating Charging Voltage: 28.8V
- Max Charging Current: 100A × N (N = number of batteries in parallel)
- Cut-off Voltage: 24V
Design & Usability
- Installation: Wall-mounted or Floor-mounted
- Display: LCD + LED indicators
- Protection: Built-in smart BMS, breaker, and fuse
- Protection Level: IP21 (indoor use)
- Net Weight: 28kg
- Gross Weight: 31kg
- Product Dimensions: 454 × 380 × 154mm
- Package Dimensions: 525 × 445 × 225mm
Operating Conditions
- Charging Temperature Range: 0°C – 55°C
- Discharging Temperature Range: –20°C – 55°C
Warranty
-
7 Years Standard Warranty
