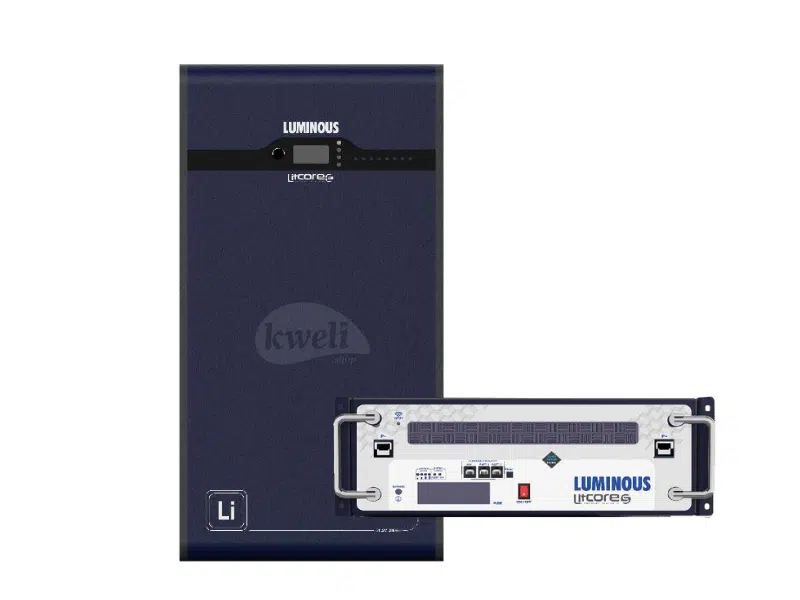

Luminous 230AH 48V 11kWh Lithium Phosphate (LiFePO₄) Solar Battery specs.
General Specifications
- Battery Type: Lithium Iron Phosphate (LiFePO₄)
- Rated Capacity: 230Ah
- Nominal Voltage: 48V
- Usable Energy: 11kWh
- Cycle Life: ≥5000 Cycles at 80% DoD
Electrical Specifications
- Operating Voltage Range: 41.6V - 57.6V
- Charge Voltage: 57.6V
- Max Continuous Charge Current: 100A
- Max Continuous Discharge Current: 200A
- Efficiency: ≥90%
Communication & Protection
- Communication Ports: USB, RS485, CAN
- Protection Features: Overvoltage (OV), Undervoltage (UV), Overcurrent (OC), Over-temperature (OT), Short Circuit (SC)
Environmental & Design
- Operating Temperature Range: Charge: 0°C to 45°C, Discharge: -20°C to 55°C
- Storage Temperature: Up to 8 months: -10°C to 35°C, Up to 3 months: -10°C to 45°C, Up to 7 days: -10°C to 65°C
- Humidity: ≤95% Relative Humidity (Non-Condensing)
- Monthly Self-Discharge: ≤3%
Physical Specifications
- Weight: 87 ± 2 kg
- Scalability: Supports up to 12 batteries in parallel
- Display: LCD
- Terminal Type: Positive & Negative M6 OT Terminal, Communication RJ45
