Bifacial Solar Panels, Monocrystalline Solar Panels, Solar Panels
Jinko Solar 615‑Watt Monocrystalline Solar Panel JKM615N‑78HL4; Voc 55.40V, Vmp 45.69V, Imp 13.46A, Isc 14.18A, Module efficiency of 22.00 %

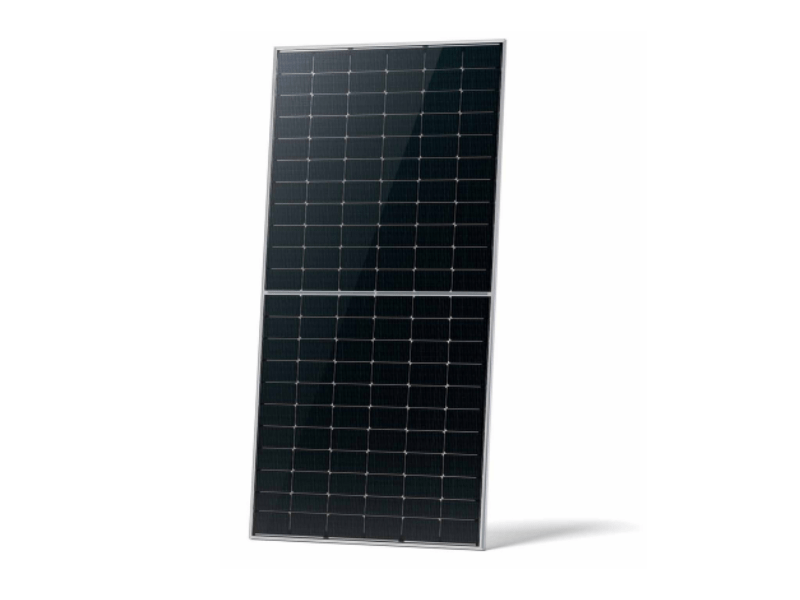

Jinko Solar 615‑Watt Monocrystalline Solar Panel JKM615N‑78HL4
Electrical Characteristics
- Maximum Power (Pₘₐₓ): 615 W
- Maximum Power Voltage (Vₘₚ): 45.69 V
- Maximum Power Current (Iₘₚ): 13.46 A
- Open‑circuit Voltage (Vₒc): 55.40 V
- Short‑circuit Current (Iₛc): 14.18 A
- Module Efficiency (STC): 22.00 %
- Power Tolerance: 0 % to +3 %
- Temperature Coefficients:
- Pₘₐₓ: –0.30 %/°C
- Vₒc: –0.25 %/°C
- Iₛc: +0.046 %/°C
- Nominal Operating Cell Temperature (NOCT): 45 ± 2 °C
Mechanical Characteristics
- Cell Type / Count: N‑Type mono‑crystalline, 156 cells (2 × 78)
- Dimensions (L × W × H): 2 465 × 1 134 × 35 mm
- Weight: 30.6 kg
- Front Glass: 3.2 mm tempered low‑iron, high‑transmission glass
- Frame: Anodised aluminium alloy
- Junction Box: IP68 rated
- Output Cables: 1 × 4.0 mm² (+): 400 mm, (–): 200 mm
System Limits & Durability
- Maximum System Voltage: 1 500 V DC
- Maximum Series Fuse Rating: 30 A
- Operating Temperature Range: –40 °C to +85 °C
- Wind Load Capacity: 2,400 Pa
- Snow Load Capacity: 5,400 Pa
- High salt mist & ammonia resistance
Key Features & Warranty
- SMBB Technology for enhanced light trapping and current collection
- Hot 2.0 Technology minimising LID/LETID
- Excellent anti‑PID performance
- 12-year product warranty
UGX 390,000
