Jinko 490Wp N-Type Solar Panel JKM490N-60HL4-(V); 43.91Voc, 36.43Vmp, 13.45A Imp, 14.01A Isc, 22.67% Efficiency, TOPCon Technology, 1500V System

• N-Type TOPCon Technology – Higher efficiency and lower degradation.
• SMBB Technology – Better current collection and improved module reliability.
• HOT 2.0 Technology – Improved module efficiency and reliability.
• Anti-PID Protection – Reduces long-term power loss.
• High Mechanical Strength – Certified for heavy environmental loads.
• Excellent Low-Light Performance – Produces more energy in cloudy conditions.

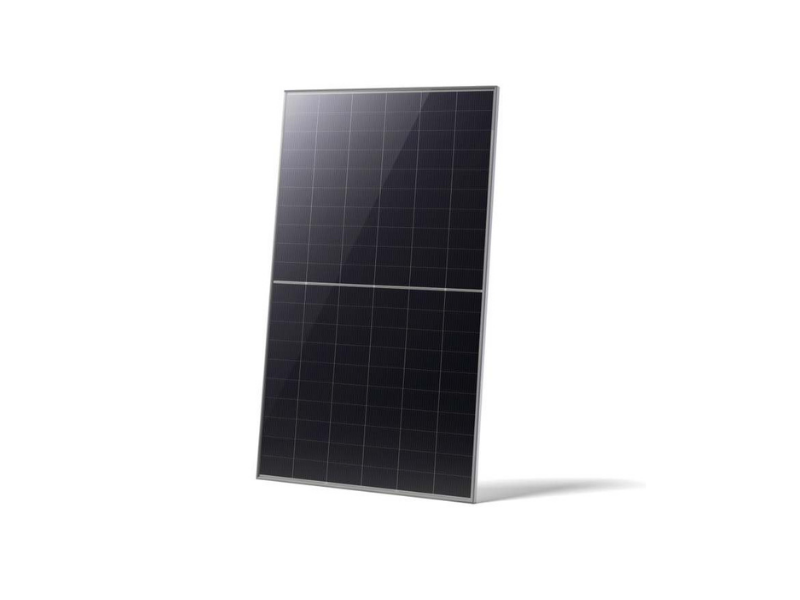

Jinko 490Wp N-Type Solar Panel JKM490N-60HL4

The Jinko 490Wp N-Type Solar Panel JKM490N-60HL4-(V) is a high-efficiency monofacial solar module built using advanced TOPCon N-type technology. Designed for residential, commercial, and hybrid solar power systems, this module delivers strong performance, lower degradation, and improved reliability compared to conventional P-type solar panels.

Thanks to N-type cell architecture, the module offers better low-light performance and significantly lower long-term degradation, ensuring higher energy production throughout its lifetime. The module also incorporates SMBB (Super Multi Busbar) technology, which improves current collection and enhances overall power output.

Engineered for durability, the panel is certified to withstand 5400Pa front load and 2400Pa rear load, making it suitable for demanding environments including areas with strong winds or heavy rain. Combined with Anti-PID protection and high environmental resistance, this panel delivers reliable long-term solar energy generation.

With a compact format and strong efficiency, the Jinko 490W Tiger Neo panel is ideal for residential rooftops, commercial installations, and hybrid solar systems using modern solar inverters.

Electrical Performance (STC)

• Maximum Power (Pmax): 490W
• Maximum Power Voltage (Vmp): 36.43V
• Maximum Power Current (Imp): 13.45A
• Open Circuit Voltage (Voc): 43.91V
• Short Circuit Current (Isc): 14.01A
• Module Efficiency: 22.67%
• Power Tolerance: 0 ~ +3%

Mechanical Characteristics

• Cell Type: N-Type Monocrystalline (TOPCon)
• Number of Cells: 120 (60 × 2)
• Dimensions: 1906 × 1134 × 30 mm
• Weight: 22.5 kg
• Front Glass: 3.2 mm anti-reflection tempered glass
• Frame: Anodised aluminium alloy
• Junction Box: IP68 rated
• Output Cable: 4 mm²

Operating Conditions

• Operating Temperature: −40°C to +85°C
• Maximum System Voltage: 1000V / 1500V DC
• Maximum Series Fuse Rating: 25A
• Nominal Operating Cell Temperature (NOCT): 45 ± 2°C
