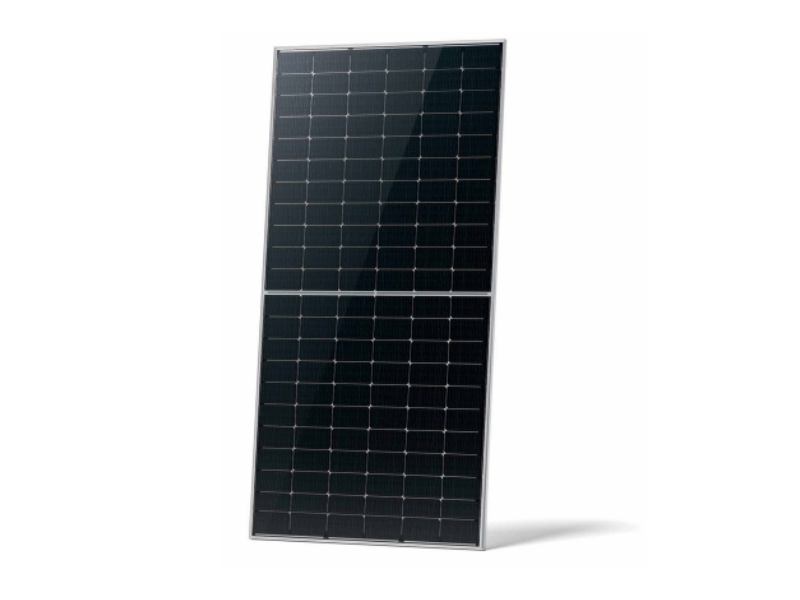

Jinko Solar 480‑Watt Monocrystalline Solar Panel JKM480N‑60HL4‑V
Technical Specifications:
- Model: JKM480N-60HL4-V
- Rated Power (Pmax): 480 W
- Module Efficiency: 22.24%
- Cell Type: N-Type Monocrystalline
- Number of Cells: 120 (6×20)
- Maximum Power Voltage (Vmp): 35.38 V
- Maximum Power Current (Imp): 13.57 A
- Open-Circuit Voltage (Voc): 42.71 V
- Short-Circuit Current (Isc): 14.31 A
- Power Tolerance: 0 ~ +3%
- Temperature Coefficient (Pmax): –0.29% / °C
- Temperature Coefficient (Voc): –0.25% / °C
- Temperature Coefficient (Isc): +0.045% / °C
- Nominal Operating Cell Temperature (NOCT): 45 ± 2°C
- Operating Temperature Range: –40°C ~ +85°C
- Maximum System Voltage: 1000 / 1500 VDC (IEC)
- Maximum Series Fuse Rating: 25 A
Mechanical Specifications:
- Dimensions: 1903 × 1134 × 30 mm
- Weight: 24.2 kg
- Front Glass: 3.2 mm tempered, anti-reflective, high-transmittance, low-iron glass
- Frame: Anodised Aluminium Alloy
- Junction Box: IP68 Rated
- Output Cables: 4.0 mm²; (+) 400 mm, (–) 200 mm (Customisable)
Key Features:
- High Efficiency: Up to 22.24% module efficiency for greater space savings and output.
- N-Type Cell Technology: Offers lower degradation, higher performance in low-light conditions, and better reliability over time.
- SMBB (Small Multi-Busbar) Technology: Enhances light absorption and current collection.
- HOT 2.0 Technology: Reduces light-induced degradation (LID) and light/elevated temperature-induced degradation (LETID).
- PID Resistance: Excellent anti-PID performance through advanced materials and process control.
- Robust Design: Certified to withstand wind loads up to 2400 Pa and snow loads up to 5400 Pa.
- Extended Lifespan: Backed by a 12-year product warranty and a 30-year linear power warranty (87.4% guaranteed output at year 30).
- Environmental Durability: High resistance to salt mist, ammonia, and extreme weather conditions.
- Certifications: IEC61215, IEC61730, ISO9001, ISO14001, ISO45001
