Jinko Solar 100Ah 48V 4.8kWh Lithium Solar Battery JKS-B48100-HI-D1; Built-in BMS, Over 6,000 Cycles @25°C, 80% DoD

Description

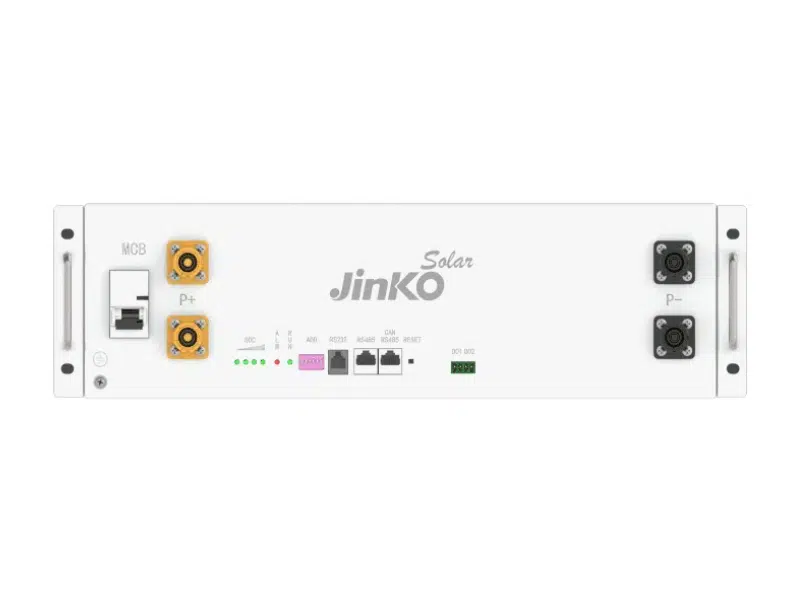

Jinko Solar 100Ah 48V 4.8kWh Lithium Solar Battery

• Model: JKS-B48100-HI-D1
• Battery Type: Lithium Iron Phosphate (LFP, LiFePO4)
• Nominal Voltage: 48V
• Operation Voltage Range: 40.5 – 54V
• Nominal Capacity: 100Ah
• Energy Capacity: 4.8kWh
• Usable Capacity: >4.5kWh (at 25°C)
• Cycle Life: >6000 cycles @ 80% DOD (0.5C, 25°C, EOL70%)
• Warranty: 10 years
• Weight: 41 ± 2 kg
• Dimensions: 442 × 430 × 130.5 mm (±2)
• Enclosure Protection: IP20
• Certifications: IEC62619, CE, UN38.3

Performance

• Recommended Charge Current: 50A
• Recommended Discharge Current: 50A
• Max. Charge Current: 100A
• Max. Discharge Current: 100A
• Peak Discharge Current: 300A

Operating Conditions

• Charging Temperature Range: 0°C to 55°C
• Discharging Temperature Range: -20°C to 60°C
• Storage Temperature: 0°C to 30°C
• Humidity: 5% – 95%

Features & Benefits

• Long Life: 6000+ cycles backed by a 10-year warranty
• Safe Chemistry: LiFePO4 cells with stable thermal performance
• Modular & Scalable: 4.8kWh per unit, easily expandable for larger systems
• Smart BMS: Built-in management system for protection and performance monitoring
• Wide Application: Suitable for on-grid, off-grid, and hybrid systems
• Compact & Lightweight: Just 41kg with slim rack-mount design

Highlights

• 48V, 100Ah (4.8kWh) per module
• Usable capacity >4.5kWh
• Over 6000 cycles @ 80% DOD
• 10-year warranty
• Stackable, modular design for easy expansion
• Safe LFP technology with built-in BMS
