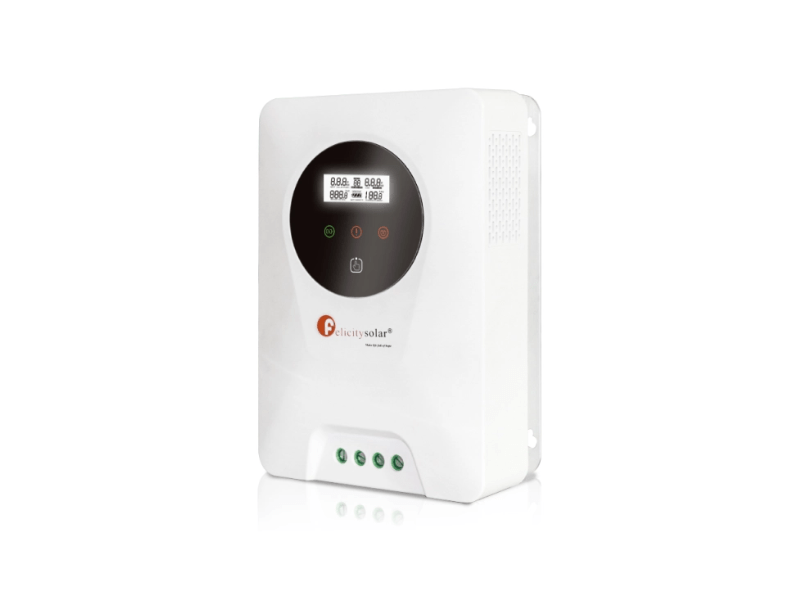

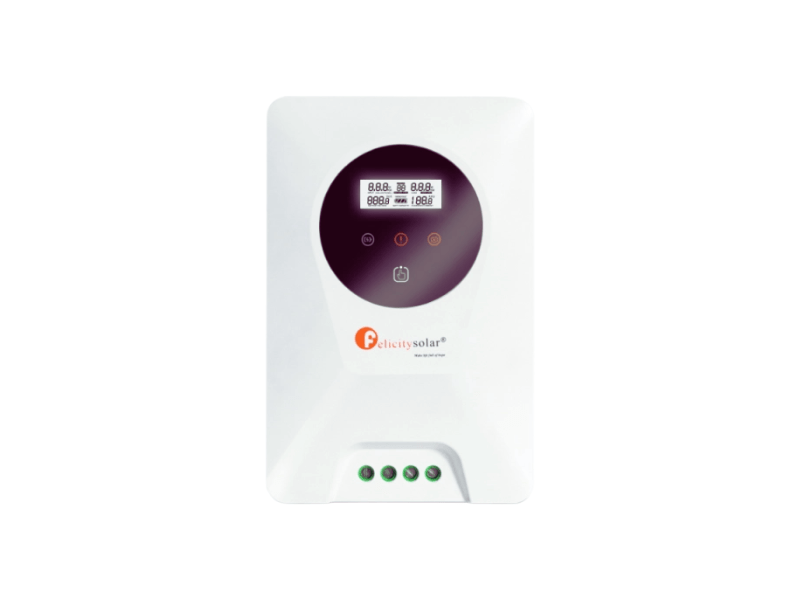

Felicity 60A MPPT Solar Charge Controller SCCM6048-II; 145V/60A, up to 3300Wpv @ 48V, 1650Wpv @24V, 825Wpv @12V

Victron SmartSolar Charge Controller MPPT RS 450 100 – Tr

• Rated charge current: 100 amps
• Maximum PV Open Circuit Voltage: 450 volts
• Ultra-fast Maximum Power Point Tracking (MPPT) Solar Charge Controller
  The MPPT RS SmartSolar is a 48V solar charge controller with up to 450 VDC PV input and 100 A output. It is used in on-grid and off-grid solar applications where maximum battery charging power is required.
• Multiple independent MPPT tracking inputs: With multiple MPPT trackers, you can optimise your solar panel design for maximum performance for your specific location.
• Isolated PV connections for additional safety: Full galvanic isolation between PV and battery connections provides additional overall system safety.
• Wide MPPT voltage range: 65–450 VDC PV operating range, with a 120 VDC PV startup voltage.
• Lightweight, efficient and quiet: Thanks to high-frequency technology and a new design this powerful charger weighs only 7.9 kg for the 100 A model. In addition to this, it has excellent efficiency, low standby power, and a very quiet operation.
• Display and Bluetooth: The display reads battery and controller parameters. The parameters can be accessed with a smartphone or other Bluetooth-enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect.
• PV isolation resistance monitoring for peace of mind at higher voltages: The MPPT RS continuously monitors the PV array and can detect if there are faults that reduce the isolation of the panels to unsafe levels.
• VE.Can and VE.Direct port: for connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Can allows for up to 25 units to be connected together in parallel and synchronise their charging.
• I/O Connections: programmable relay, temperature sensor, auxiliary, digital input and voltage sensor connections. The remote input can accept the Victron smallBMS, and other BMS with an allow-to-charge signal.
