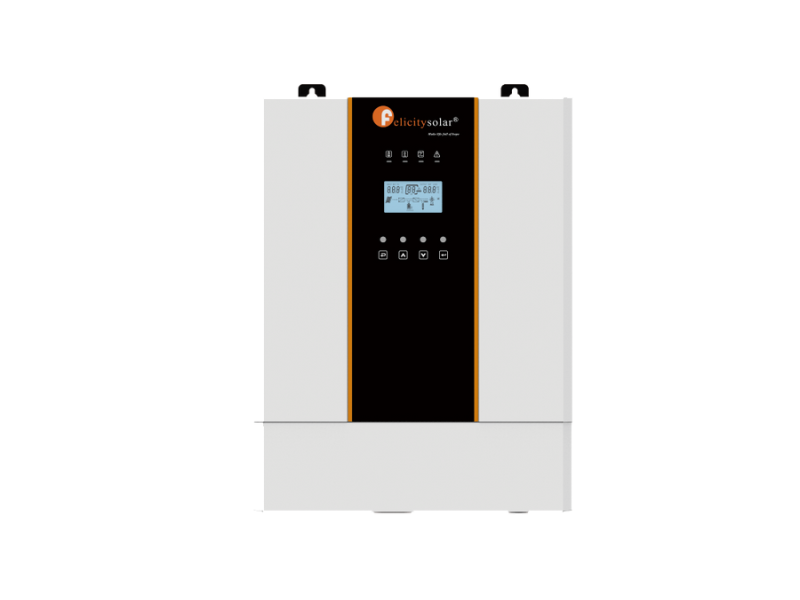

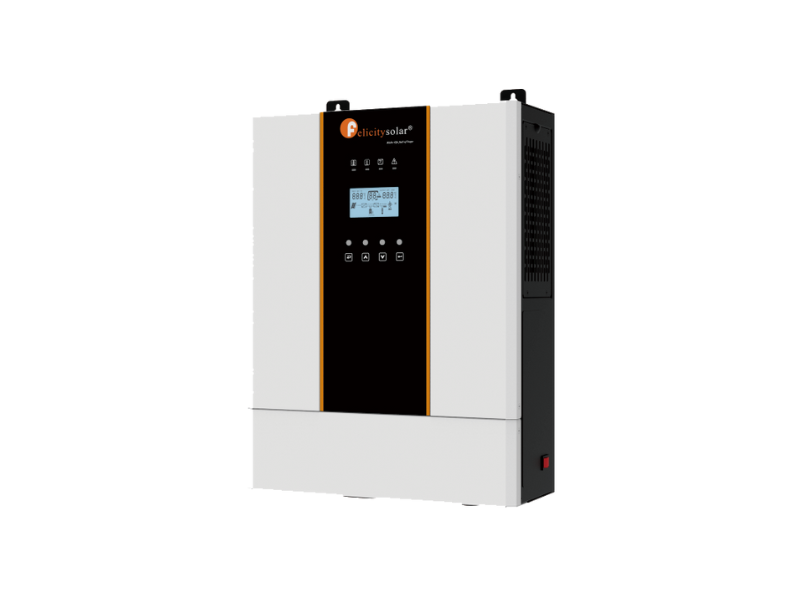

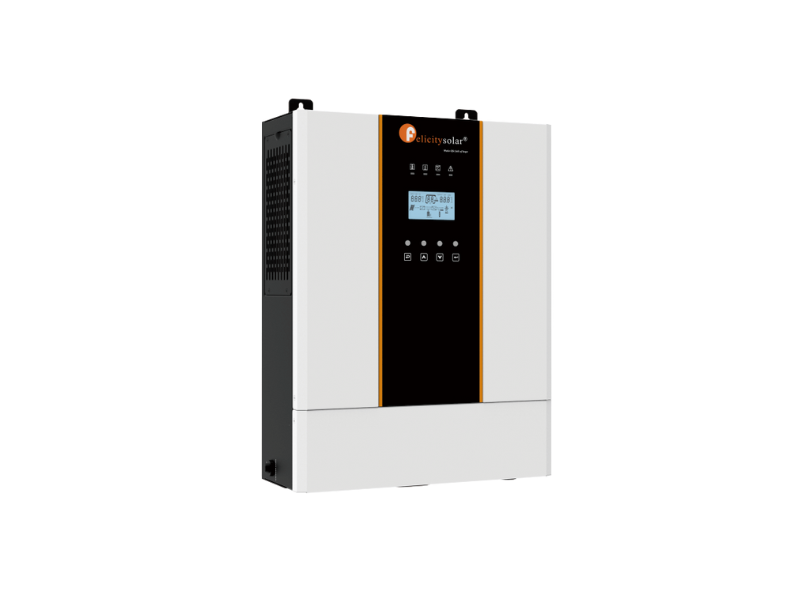

Felicity 3kVA/3kW 24V Hybrid Inverter IVEM3024; 4kWp/500Voc/120–450VDC/100A Built-in MPPT Charge Controller, 230Vac Pure Sine Wave Output, LCD Display

General Specifications

• Model: IVEM3024
• Rated Output Power (VA): 3,000VA
• Rated Output Power (W): 3,000W
• Nominal DC Input Voltage: 24VDC
• Output Voltage: 230Vac ± 5%
• Output Frequency: 50Hz / 60Hz (auto-sensing)
• Output Waveform: Pure Sine Wave
• Parallel Capability: Up to 12 units

MPPT Solar Charge Controller

• Type: Built-in MPPT Solar Charge Controller
• Maximum PV Input Power: 4,000W
• Maximum PV Open Circuit Voltage (Voc): 500VDC
• MPPT Voltage Range: 120–450VDC
• Maximum PV Input Current: 100A
• MPPT Efficiency: ≥98%

Battery Charging

• Battery Voltage: 24V
• Maximum Charge Current: 80A (combined solar + AC)
• Charger Source Priority: Configurable (Solar, Grid, Solar Priority)
• Battery Compatibility: Lithium, Gel, AGM, Flooded

Protection Features

• Overload Protection: Yes
• Short Circuit Protection: Yes
• Overtemperature Protection: Yes
• Overcharge and Deep Discharge Protection: Yes
• Surge Protection: Yes
• Cold Start Function: Yes
• Automatic Restart on AC Recovery: Yes

Communication & Display

• Display Interface: LCD + LED indicators
• Communication Ports: RS232, optional WiFi/SNMP/Bluetooth
• Monitoring Support: External BMS or mobile app (optional)

Design and Usability

• Cooling Method: Intelligent Fan
• Mounting: Wall-mount
• Dimensions (W × H × D): 300 × 400 × 130 mm (approx.)
• Net Weight: 10.8 kg
• Operating Temperature: –10°C to 50°C
• Humidity: 5%–95% RH (non-condensing)
