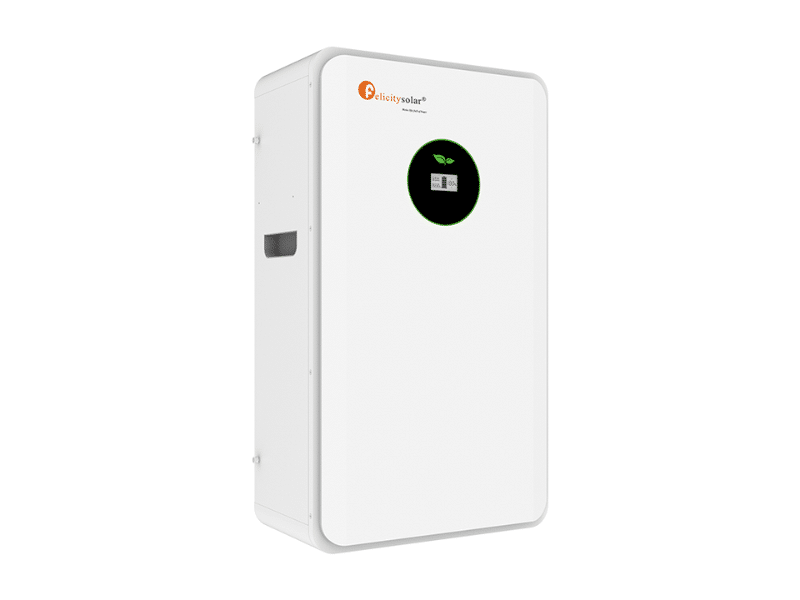

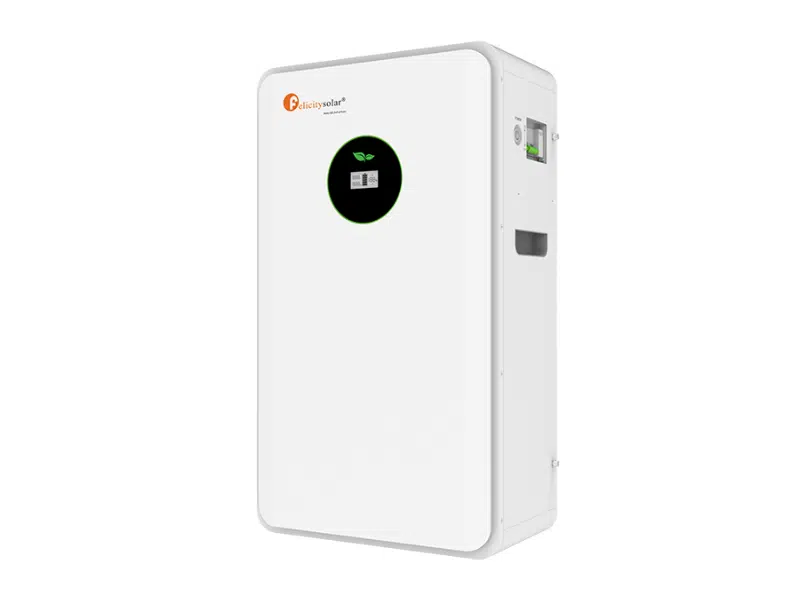

Technical Specifications
- Model: FLA48200
- Capacity: 10kWh
- Battery Type: LiFePO₄ (Lithium Iron Phosphate)
- Nominal Voltage: 51.2V (48V system)
- Operating Voltage: 44.8V – 57.6V
- Recommended Charge/Discharge Current: ≤200A
- Recommended Charge/Discharge Power: ≤10,000W
- Maximum Charge/Discharge Current (15s): 250A
- Maximum Power (15s): 12,800W
- Depth of Discharge (DoD): ≥95%
- Cycle Life: ≥6,000 cycles @25°C, 0.2C, 80% DoD
- Scalability: Up to 15 units in parallel (150kWh total)
- Communication: RS485 / CAN, Built-in WiFi
Recommended Settings
- Max Charging Voltage: 57.6V
- Floating Charging Voltage: 57.6V
- Max Charging Current: 200A × N (N = number of batteries in parallel)
- Cut-off Voltage: 48V
Design & Usability

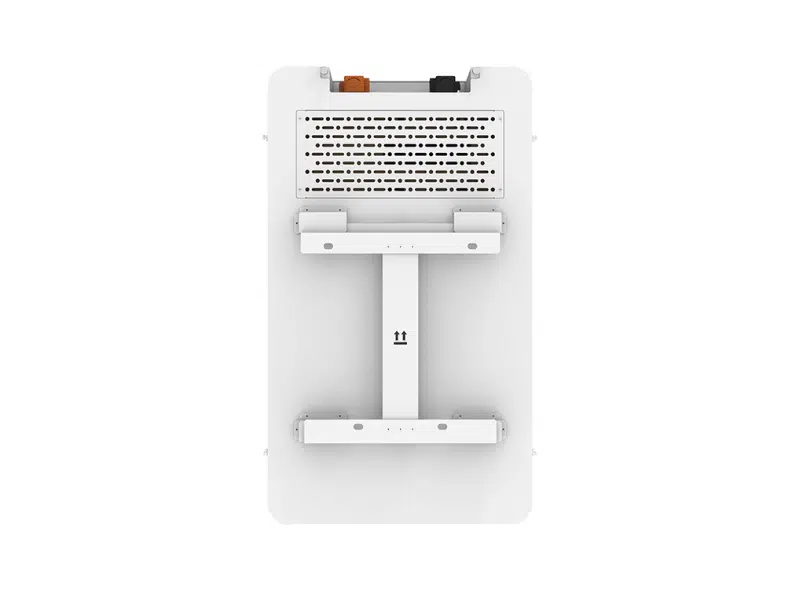

- Installation: Wall-mounted or Floor-mounted

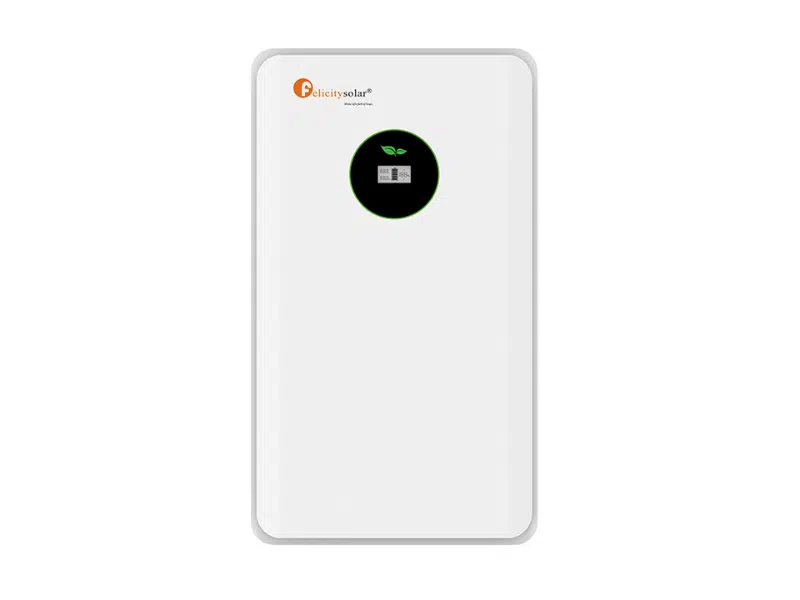

- Display: LCD + LED indicators

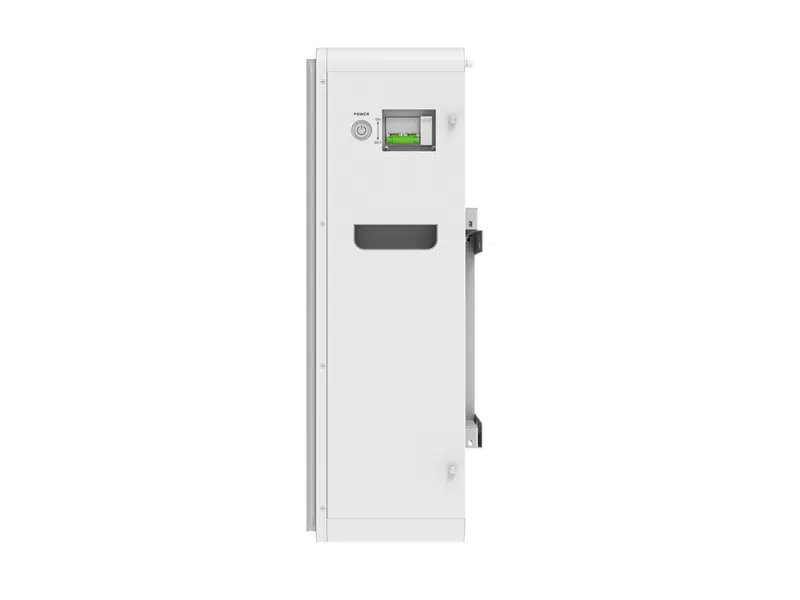

- Protection: Built-in smart BMS, breaker, and fuse
- Protection Level: IP21 (indoor use)
- Net Weight: ~82kg
- Gross Weight: ~88kg
- Product Dimensions: 620 × 450 × 220mm (typical)
- Package Dimensions: ~690 × 510 × 290mm
Operating Conditions
- Charging Temperature Range: 0°C – 55°C
- Discharging Temperature Range: –20°C – 55°C
Warranty
- 7 Years Standard Warranty
Highlights
- 10kWh high-capacity LiFePO₄ battery for 48V solar systems.
- Long life span with ≥6,000 cycles at 80% DoD.
- Smart monitoring with RS485, CAN, and built-in WiFi.
- Enhanced safety with integrated BMS, breaker, and fuse.
- Flexible installation: wall or floor mount.
- Expandable up to 150kWh with 15 units in parallel.
