Description

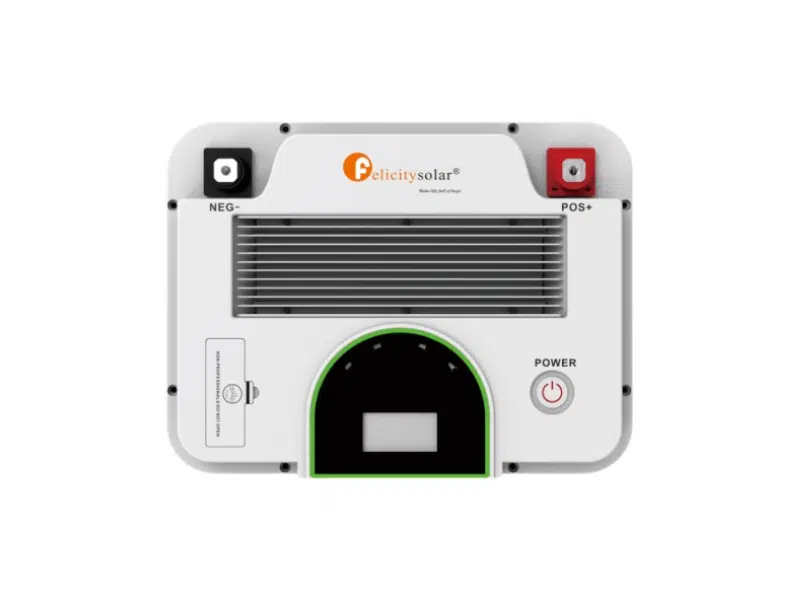

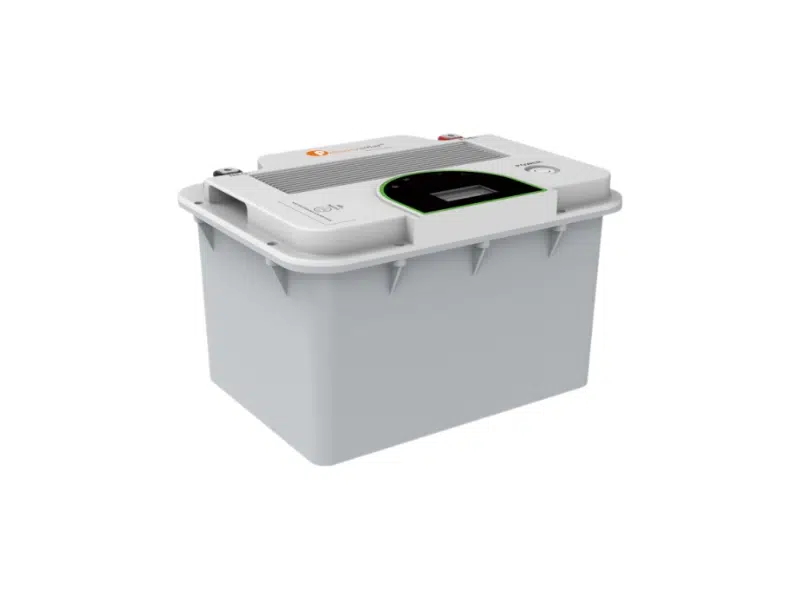

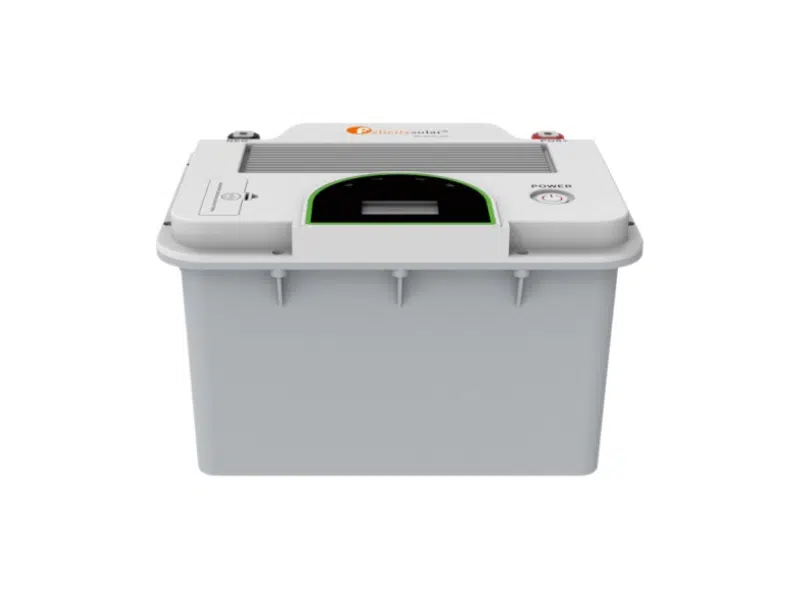

Felicity 200Ah 12V 2.56kWh Lithium Iron Phosphate (LiFePO₄) Solar Battery FLA12200
Electrical Specifications
- Nominal Voltage: 12.8V
- Nominal Capacity: 200Ah
- Energy Storage Capacity: 2.56kWh
- Voltage Range: 10.8V – 14.6V
- Max Charging Voltage: 14.6V
- Recommended Charging Voltage: 14.2V – 14.6V
- Standard Charging Current: 40A
- Maximum Charging Current: 100A
- Standard Discharge Current: 100A
- Maximum Continuous Discharge Current: 150A
- Charge Cut-off Voltage: 14.6V
- Discharge Cut-off Voltage: 10.8V
- Cycle Life: ≥6,000 cycles @ 25°C, 80% Depth of Discharge (DoD)
Features & Protections
- Cell Type: LiFePO₄ (Lithium Iron Phosphate)
- Built-in Battery Management System (BMS)
Protection Functions:
- Overcharge Protection
- Over-discharge Protection
- Over-current Protection
- Short Circuit Protection
- Temperature Protection
- Balance Function
Design & Installation
- Mounting Type: Floor-Mounted
- Dimensions (L×W×H): 522 × 238 × 218 mm
- Net Weight: Approx. 22.8 kg
- Terminal Type: M8
- Casing Material: Metal
Environmental Conditions
-
Operating Temperature Range:
- Charge: 0°C to +55°C
- Discharge: –20°C to +60°C
- Storage Temperature: –10°C to +50°C
- Humidity Range: 5% – 95% RH (non-condensing)
Warranty & Certifications
- Warranty: 5 Years
- Certifications: CE, UN38.3, MSDS (varies by batch
