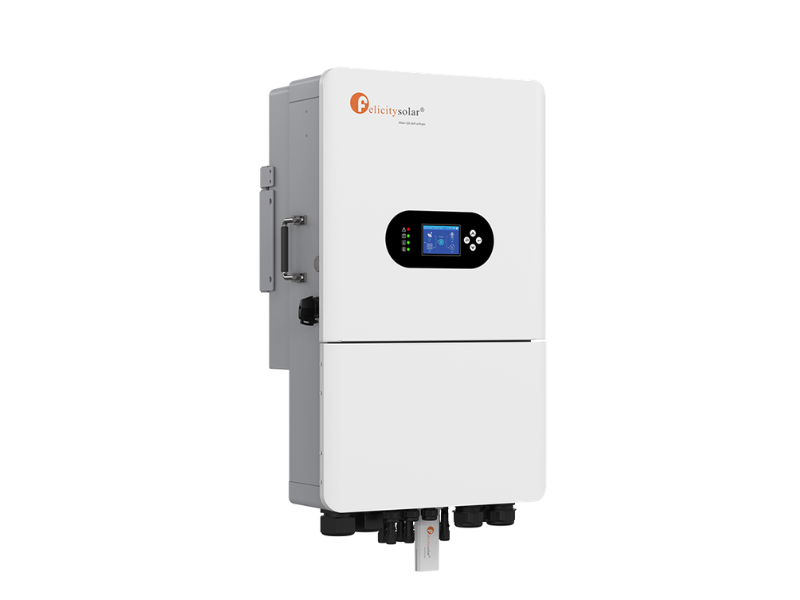

Felicity 12kW 48V 3-Phase Hybrid Solar Inverter IVGM12KLP3G1
The Felicity IVGM12KLP3G1 is a 12kW 48V three-phase hybrid solar inverter for homes, offices, schools, clinics, farms, workshops and small commercial sites that need solar power, battery backup, generator integration and remote monitoring.
It supports up to 18kW PV input, 800V max PV voltage, 160V – 650V MPPT range, 2 MPPTs, and 240A battery charge/discharge current, making it suitable for three-phase solar backup systems with lithium or lead-acid battery storage.
Specifications
General
- Brand: Felicity Solar
- Model: IVGM12KLP3G1
- Product type: Hybrid solar inverter
- Rated output power: 12kW
- Battery voltage class: 48V
- Phase type: Three phase
- Inverter type: Low-voltage hybrid inverter
- Output waveform: Pure sine wave
- Protection rating: IP65
- Display: LCD touch screen
Solar PV Input
- Maximum PV input power: 18kW
- Maximum PV input voltage: 800V
- Start-up voltage: 160V
- MPPT operating voltage range: 160V – 650V
- Rated DC input voltage: 550V
- Full-load DC voltage range: 347V – 800V
- Number of MPPTs: 2
- PV string inputs: 4 strings, arranged as 2+2
- Maximum PV input current: 26A + 26A
- Maximum PV short-circuit current: 39A + 39A
Battery
- Battery type: Lithium-ion / lead-acid
- Battery voltage range: 40V – 60V
- Battery input: 1 battery bank input interface
- Maximum charge current: 240A
- Maximum discharge current: 240A
- BMS communication: RS485 / CAN
AC Input and Output
- Rated AC active power: 12kW
- Maximum AC apparent power: 13.2kVA
- Rated AC voltage: 220/380V or 230/400V
- AC voltage range: -20% to +15%
- Rated AC current: 17.4A
- Maximum AC current: 19.2A
- Rated grid frequency: 50/60Hz
- AC wiring mode: 3L + N + PE
- Peak off-grid power: 2 times rated power for 10 seconds
- Backup switching time: Less than 10ms
System Features
- Operating modes: On-grid, off-grid and UPS
- Generator support: Yes
- Smart load / generator port: Yes
- Time of Use function: Yes
- Zero export support: Yes
- Parallel operation: Up to 10 units
- Monitoring module: WiFi / 4G
- Monitoring platform: Fsolar Smart Cloud
Protections
- DC reverse polarity protection
- AC output overcurrent protection
- AC output overvoltage protection
- AC output short-circuit protection
- Thermal protection
- Ground fault current monitoring
- Arc fault circuit interrupter
- Islanding protection
- Residual current detection
- Surge protection
- DC input switch
- Overload protection
Physical Details
- Product dimensions: 750 x 450 x 268mm
- Package dimensions: 889 x 566 x 397mm
- Net weight: 48.7kg
- Gross weight: 60.2kg
- Installation: Wall-mounted / fixed inverter installation
- Warranty: Subject to Felicity Solar warranty terms
Best For
The Felicity IVGM12KLP3G1 is best for three-phase homes, offices, schools, clinics, farms, workshops, apartments and small commercial buildings that need solar power, lithium battery storage, generator support and remote monitoring.
What to Consider Before Buying the Felicity 12kW 48V 3-Phase Hybrid Solar Inverter IVGM12KLP3G1
- Confirm that your site is three phase and that a 12kW inverter is suitable for your actual load.
- Pair it with compatible 48V lithium batteries that can safely support up to 240A charge/discharge current.
- Size the solar array within the 18kW PV input limit, 800V max PV voltage, 160V – 650V MPPT range and PV current limits.
- Plan for professional installation, including AC/DC breakers, surge protection, earthing, battery protection, generator integration and correct inverter configuration.
