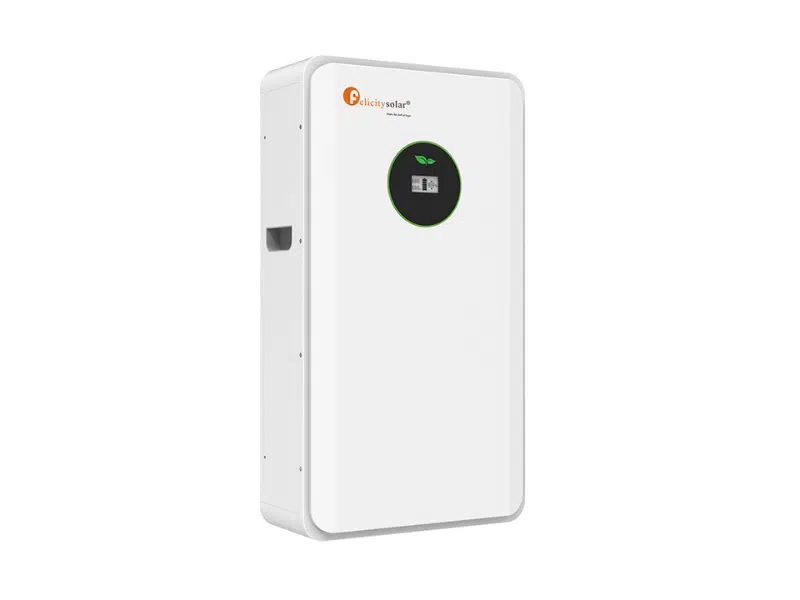

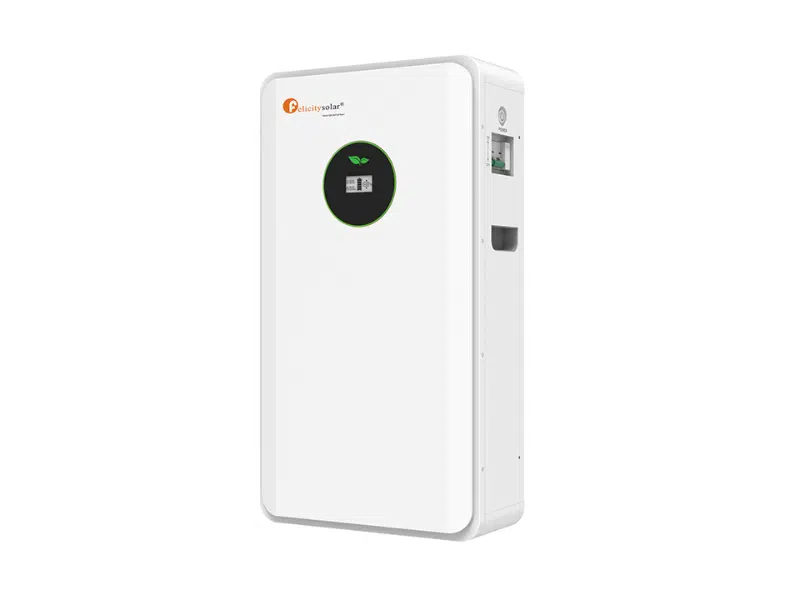

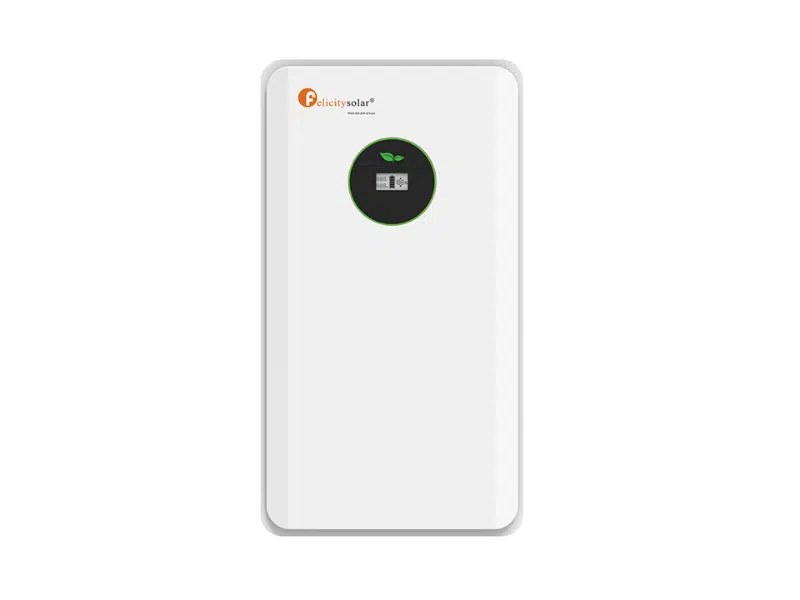

Felicity 100AH 48V 5kWh Lithium Solar Battery FLA48100
- Iron Phosphate-lithium power battery
- Higher energy density means smaller volumes for households.
- Support Connected in parallel mode for expansion.
- Long warranty period: 5 years
- Model: LU230AH 25.6 V, 230 Ah, 5.888 kWh
- Cell Configuration: 8 S 1 P
- Operating Voltage Range: 20 – 29.2 V
- Usable Energy: 5 888 Wh (5.888 kWh)
- Voltage at End of Discharge: 20 V
- Charge Cut‑off Voltage: 29.2 V
- Internal Impedance: ≤ 20 mΩ
- Standard Charge/Discharge Current: 30 A / 115 A
- Maximum Discharge Current: 200 A
- Cycle Life: ≥ 6 000 cycles @ 25 °C, 0.5 C, 80 % DoD
- No. of Units in Parallel: Up to 15 (manual configuration)
- Communication Ports: RS485 & CAN
- Display: Touch‑screen LCD
- Operating Temperature: Charge 0 °C–55 °C; Discharge –10 °C–60 °C
- Weight: 49 kg
Key Features
- Stackable Design: Scalable energy storage—parallel up to 15 units for greater capacity.
- Advanced Protection: Multi‑level BMS safeguards against over‑charge, over‑discharge, short‑circuit, and temperature extremes.
- High Efficiency: ≥ 99 % round‑trip efficiency.
- Informative Interface: Real‑time monitoring of voltage, current, and state‑of‑charge via integrated LCD.
- Broad Compatibility: Works seamlessly with a wide range of high‑frequency solar inverters.
