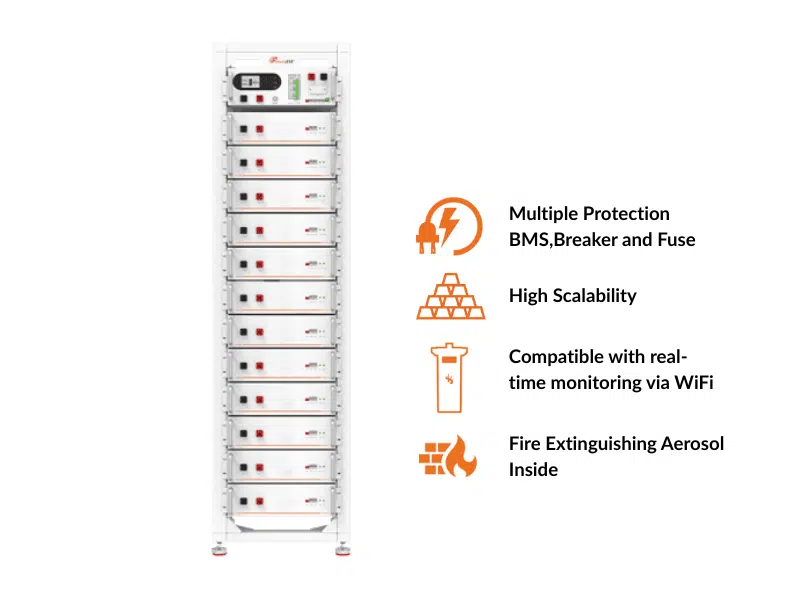

Felicity 61.44kWh High Voltage Lithium Battery System LUX-Y-48100HG01; 12 × 5.12kWh (48V 100Ah) Modules, 90% DoD, 6000+ Cycles, Built-in BMS, Stack-Mount, Scalable

Felicity 61.44kWh High Voltage Lithium Battery System LUX-Y-48100HG01

• All 61.44 kWh (12 × 5.12 kWh modules)
• Battery Module: Felicity LUX-Y-48100HG01 – 48 V 100 Ah LFP
• Cycle Life: ≥ 6000 cycles @ 90 % DoD (25 °C)
• Nominal Voltage per Module:48V DC
• Nominal Capacity per Module:100 Ah (5
• System Voltage (12 modules): 576 V nominal / 600 V max
• On 42 V – 54 V per module
• Maximum Ch 100 A per module
• Scalable: Supports parallel or series expansion for higher capacity or voltage
• Integrated BMS: Over-charge, over-discharge, short-circuit and temperature protection
• Communication Interfaces: CAN & RS485 (for inverter integration and remote monitoring)
• Design: Stackable / Wall-mount / Cabinet mount options
• Working Temperature: –20 °C to +60 °C
• Storage Temperature: –10 °C to +45 °C
• Enclosure Protection: IP65 (outdoor rated)
• Module Weight: ≈ 52 kg each
• Dimensions (per Module): 442 × 132 × 400 mm
