Dyness STACK100 61.44kWh 614.4V LiFePO₄ High-Voltage Lithium Battery System; 100Ah, 1C Charge/Discharge, CAN/RS485, Cable-Free Stackable Design, Built-in Aerosol Fire Extinguisher, 10-Year Warranty

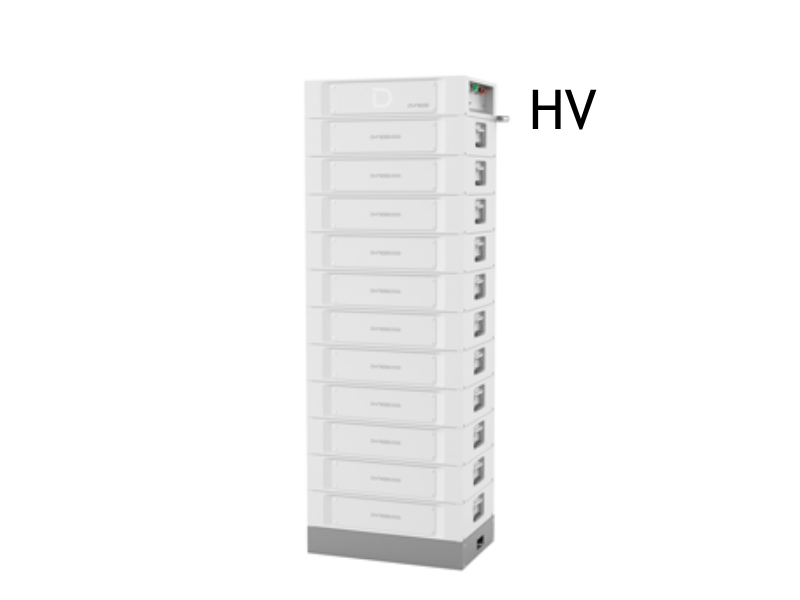

Dyness STACK100 61.44kWh 614.4V LiFePO₄ High-Voltage Lithium Battery System

• 61.44kWh high-voltage battery system: Built for larger solar and backup power applications that need substantial energy storage capacity.
• 614.4V system voltage: Suitable for compatible high-voltage hybrid and commercial energy storage systems.
• Safe LiFePO₄ battery chemistry: Designed for better safety, stable performance, and long service life.
• 100Ah capacity: Maintains the same system amp-hour rating across the high-voltage stacked configuration.
• 1C charge and discharge capability: Supports strong charging and discharging performance for demanding daily use.
• Cable-free stackable design: Helps keep installation cleaner, neater, and more professional.
• CAN and RS485 communication: Supports integration with compatible inverters and energy storage systems.
• Built-in aerosol fire extinguisher: Adds extra internal safety protection within the battery system.
• Scalable STACK100 platform: Part of the STACK100 range, which runs from 15.36 kWh to 76.8 kWh and can expand up to 921.6 kWh.
• 10-year warranty: Backed by long warranty coverage for added peace of mind.

Dyness STACK100 61.44kWh 614.4V LiFePO₄ High-Voltage Lithium Battery System

The Dyness STACK100 61.44kWh 614.4V is a high-voltage lithium battery system designed for sites that need serious stored energy. It suits larger homes, commercial buildings, institutions, and other projects where dependable backup or solar energy storage is a priority.

Built on the STACK100 platform, this version sits at the top end of the standard single-cluster range. It gives you strong storage capacity in a clean stacked format, while the LiFePO₄ chemistry, 100Ah capacity, and 1C charge and discharge capability make it practical for demanding real-world use. The cable-free stackable design also helps create a tidier installation.

With CAN and RS485 communication, built-in safety protection, and a design that belongs to a wider expandable battery platform, the Dyness STACK100 61,44kWh system is a solid option for clients who want large-capacity high-voltage energy storage. The official Dyness product range lists STACK100 at 15.36kWh to 76.8kWh, with expansion up to 921.6kWh.

• Battery Type: LiFePO₄
• System Configuration: 12 battery modules
• Nominal Energy: 61.44kWh
• Nominal Voltage: 614.4V
• Nominal Capacity: 100Ah
• Maximum Charge/Discharge Rate: 1C
• Maximum Charge/Discharge Current: 100A
• Communication: CAN / RS485
• Installation Method: Cable-free stackable design
• Safety Feature: Built-in aerosol fire extinguisher
• Warranty: 10 years
• Scalable Platform Range: 15.36kWh to 76.8kWh
• Maximum Expandable Capacity: 921.6kWh
