Dyness STACK100 15.36kWh 153.6V LiFePO₄ High-Voltage Lithium Battery System; 100Ah, 1C Charge/Discharge, CAN/RS485, Cable-Free Stackable Design, Built-in Aerosol Fire Extinguisher, 10-Year Warranty

Dyness STACK100 15.36kWh 153.6V LiFePO₄ High-Voltage Lithium Battery System

• 15.36kWh high-voltage battery system: Built from three STACK100 modules to deliver strong stored energy for solar and backup applications.
• 153.6V system voltage: Suitable for compatible high-voltage hybrid and energy storage inverter systems.
• Safe LiFePO₄ battery chemistry: Designed for safety, stability, and long service life.
• 100Ah capacity: Delivers dependable storage performance in a compact stacked system.
• 1C charge and discharge capability: Supports up to 100A charge and discharge current for practical daily use.
• Cable-free stackable design: Helps keep installation cleaner, neater, and more straightforward.
• CAN and RS485 communication: Supports integration with compatible inverter and energy storage systems.
• Built-in aerosol fire extinguisher: Adds an extra layer of safety within the battery system.
• 8000+ cycle life: Built for long-term use where dependable cycling matters.
• 10-year warranty: Backed by long warranty coverage for greater peace of mind.

Dyness STACK100 15.36kWh 153.6V LiFePO₄ High-Voltage Lithium Battery System

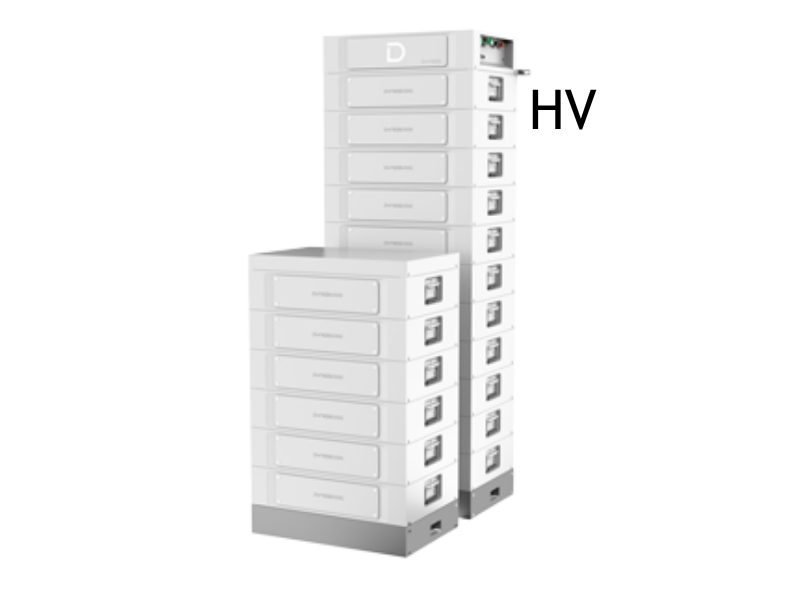

The Dyness STACK100 15.36kWh 153.6V is a high-voltage lithium battery system designed for dependable solar and backup energy storage. Built from three STACK100 modules, it delivers strong capacity in a clean, stacked format that suits larger homes, offices, shops, schools, and other sites that need reliable stored power.

Its LiFePO₄ chemistry gives you better safety, stable performance, and long service life, while the 100Ah capacity, 1C charge and discharge capability, and 95% depth of discharge make it practical for real everyday use. The cable-free stackable design also helps achieve a cleaner and more organized installation.

With CAN and RS485 communication, built-in safety protection, and room to scale within the wider STACK100 platform, this battery system is a solid choice for clients who want a serious high-voltage storage solution.

• Battery Type: LiFePO₄
• Nominal Energy: 5.12kWh
• Usable Energy: 4.864kWh
• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Module Configuration per Cluster: 3 to 15 modules
• System Energy Range per Cluster: 15.36kWh to 76.8kWh
• Maximum Scalable Capacity: 921.6kWh
• Parallel Expansion: Up to 12 clusters
• Operating Voltage Range: 134.4V to 864V
• Recommended Charge/Discharge Rate: 0.5C
• Maximum Charge/Discharge Rate: 1C
• Maximum Charge/Discharge Current: 100A
• Peak Discharge Current: 125A for 2 minutes
• Depth of Discharge: 95%
• Communication: CAN / RS485
• Cooling Method: Forced wind cooling
• Protection Level: IP20
• Cycle Life: 8000+ cycles
• Charging Temperature: 0°C to 55°C
• Discharging Temperature: -20°C to 55°C
• User Interface: WiFi + App
• Safety Feature: Built-in aerosol fire extinguisher
• Installation Method: Cable-free stackable design
• Warranty: 10 years
• Dimensions: 590 × 390 × 133 mm
• Weight: 15.3kg
