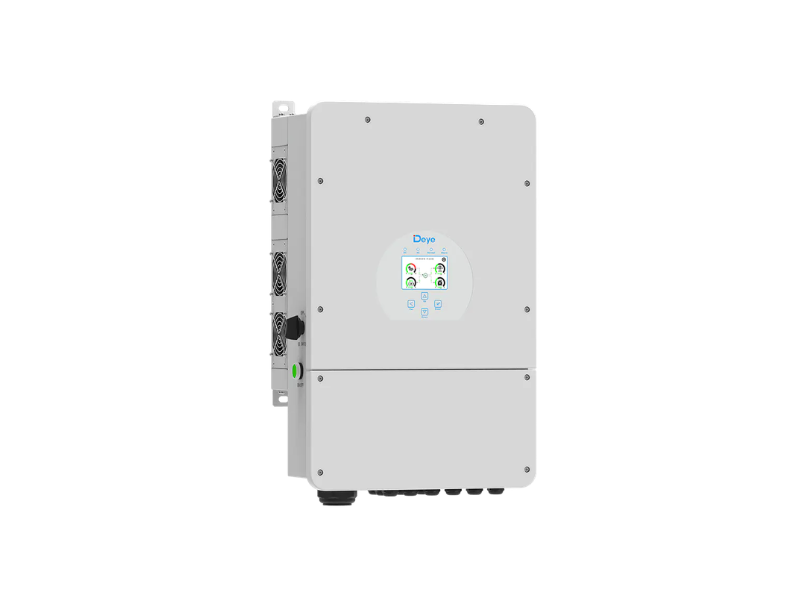

Deye 8kVA/8kW 48V Single Phase Hybrid Inverter SUN-8K-SG01LP1-EU; 2 MPPT, 16kWp PV Access, 500Vdc, 150–425V MPPT Range, 190A Charge/Discharge, WiFi/4G Monitoring, IP65

Deye 8kVA/8kW 48V Single Phase Hybrid Inverter SUN-8K-SG01LP1-EU highlights

• 8kVA / 8kW hybrid inverter for homes, offices, and light commercial use
• Supports up to 16kWp PV access for strong solar generation
• Dual MPPT design improves performance across multiple roof sections
• 190A charge and discharge current supports large battery banks
• Works with lithium and lead-acid batteries
• Parallel support for up to 16 units for larger systems
• AC coupling support for upgrading existing solar installations
• Up to 6 programmable charge and discharge periods
• Supports energy storage from diesel generators
• IP65 protection for indoor and outdoor installation

Deye 8kVA/8kW 48V Single Phase Hybrid Inverter SUN-8K-SG01LP1-EU Datasheet

The Deye 8kVA hybrid inverter is designed for environments where the power supply is unstable, and energy costs need to be controlled. It brings together solar, battery, grid, and generator into one system that works smoothly without constant intervention.

It handles real loads well, from homes with multiple appliances to offices and small commercial setups. During the day, it prioritises solar. At night or during outages, it seamlessly switches to battery or backup sources, keeping everything running without interruption.

The inverter is also flexible. You can build a new system around it or integrate it into an existing one using AC coupling. And if your energy needs grow, you can scale up by running multiple units in parallel.

With built-in monitoring options and smart scheduling, you stay in control of how and when your energy is used.

Battery Input

• Battery Type: Lithium-ion / Lead-acid
• Battery Voltage Range: 40–60V
• Maximum Charge Current: 190A
• Maximum Discharge Current: 190A
• Charging Strategy: Self-adaptive to BMS
• Number of Battery Inputs: 1

PV Input

• Maximum PV Access Power: 16,000W
• Maximum PV Input Power: 10,400W
• Maximum PV Input Voltage: 500V
• Start-up Voltage: 125V
• MPPT Voltage Range: 150–425V
• Rated PV Input Voltage: 370V
• Maximum Operating PV Input Current: 26A + 26A
• Maximum Input Short-Circuit Current: 34A + 34A
• Number of MPPT Trackers: 2
• Strings per MPPT: 2 + 2

AC Input / Output

• Rated Output Power: 8,000W
• Maximum Apparent Power: 8,800VA
• Rated Output Current: 36.4A / 34.8A
• Maximum Output Current: 40A / 38.3A
• Maximum AC Passthrough: 50A
• Peak Off-grid Power: 2× rated power (10 seconds)
• Voltage: 220/230V
• Frequency: 50/60Hz

Efficiency

• Maximum Efficiency: 97.6%
• Euro Efficiency: 96.5%
• MPPT Efficiency: >99%

Communication & Monitoring

• Interfaces: RS485 / RS232 / CAN
• Monitoring: WiFi / GPRS / Bluetooth / 4G / LAN

General Data

• Operating Temperature: -40°C to +60°C
• Protection Rating: IP65
• Noise Level: <30dB
• Cooling: Intelligent Air Cooling
• Dimensions: 420 × 670 × 233 mm
• Weight: 30kg
• Warranty: 5–10 Years

Works with most lithium batteries that support CAN or RS485 communication, including Dyness, Deye, and other widely used brands.

It can also be used with other lithium batteries without communication by setting the correct charge and discharge parameters. If needed, we’ll guide you on the right setup.
