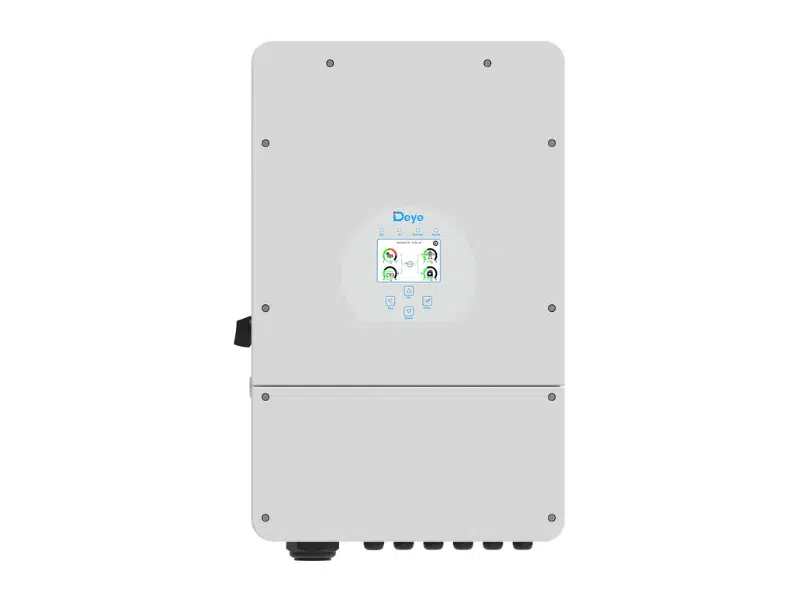

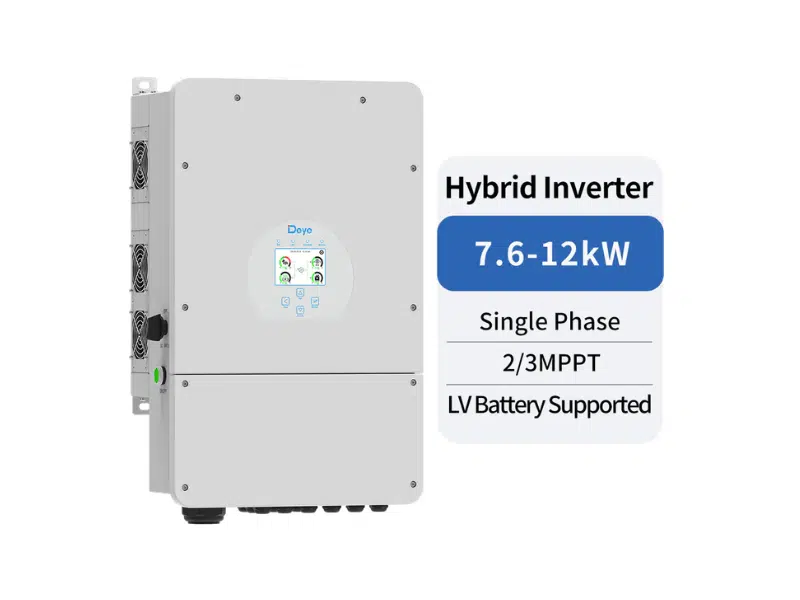

Deye 12kVA/12kW 48V Single Phase Hybrid Inverter SUN-12K-SG02LP1-EU-AM3 Datasheet
Battery Specifications
- Battery Type: Lithium-ion or Lead-acid
- Battery Voltage Range: 40–60V
- Max Charging Current: 250A
- Max Discharging Current: 250A
- Charging Strategy: Self-adaptive to BMS
- Number of Battery Inputs: 1
PV / Solar Input Specifications
- Max PV Access Power: 24,000 W
- Max DC Input Power: 19,200 W
- Max PV Input Voltage: 500Vdc
- Start-up Voltage: 125V
- MPPT Voltage Range: 150–425V
- Rated PV Input Voltage: 370V
- MPPT Trackers: 3
- Strings per MPPT: 2 + 2 + 2
AC Output Specifications
- Rated Output Power: 12,000W
- Max Apparent Power: 13,200VA
- Rated Voltage: 220/230V (Single Phase)
- Rated Frequency: 50/60Hz
- Max Continuous AC Passthrough: 60A
- Peak Power (Off-grid): 2× rated power for 10 seconds
- Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
Hybrid & System Integration
- Supports solar, battery, grid and generator operation
- Stores energy from diesel generator
- AC coupling support for retrofitting existing solar systems
- Parallel operation up to 16 units (on-grid and off-grid)
- Six programmable battery charge and discharge time periods
Protection & General Specifications
- Ingress Protection Rating: IP65
- Surge Protection: Type II (DC and AC)
- Anti-islanding protection
- DC reverse polarity protection
- AC overcurrent and short-circuit protection
- Residual current detection
- Cooling Method: Intelligent air cooling
- Noise Level: <45 dB
- Operating Temperature Range: -40°C to +60°C
Monitoring & Communication
- Monitoring Options: WiFi, 4G, Bluetooth, LAN (optional modules)
- Communication Interfaces: RS485, RS232, CAN
