Bifacial Solar Panels
Showing all 4 resultsSorted by price: high to low
-
FREE DELIVERYBifacial Solar Panels, Monocrystalline Solar Panels, Portable Solar Panels, Solar Panels
EcoFlow 220-Watt Bifacial Portable Solar Panel; Foldable Design, IP68 Waterproof Rating, Dual-Sided 220W/155W, Voc 25.0V, Vmp 18.4V, Imp 12.0A
-15%
Bifacial Solar Panels, Monocrystalline Solar Panels, Portable Solar Panels, Solar PanelsEcoFlow 220-Watt Bifacial Portable Solar Panel; Foldable Design, IP68 Waterproof Rating, Dual-Sided 220W/155W, Voc 25.0V, Vmp 18.4V, Imp 12.0A
EcoFlow 220-Watt Bifacial Portable Solar Panel; Foldable Design
- Bifacial Design: The panel features a 220W primary side and a 155W rear side, enabling it to capture up to 25% more solar energy by utilizing ambient light.
- High Conversion Efficiency: With a conversion rate of up to 23%, the panel maximizes energy capture from sunlight.
- Durable and Waterproof: Constructed with a one-piece tempered glass design, the panel is five times more durable than comparable models and can withstand temperatures up to 300°F. It also boasts an IP68 waterproof rating, ensuring protection against water and dust.
- Portable and Compact: Approximately 10% smaller than comparable 220W panels, it features a foldable design and comes with a carrying case that doubles as a kickstand for optimal positioning.
- Rated Power: 220W
- Open Circuit Voltage (Voc): 25.0V
- Short Circuit Current (Isc): 11.0A
- Maximum Power Voltage (Vmp): 18.4V
- Maximum Power Current (Imp): 12.0A
- Dimensions (Unfolded): 82.0 x 183.0 x 2.5 cm
- Dimensions (Folded): 82.0 x 42.0 x 2.5 cm
- Weight: Approximately 9.5 kg
-
Compatibility:
The EcoFlow 220W Portable Solar Panel is compatible with EcoFlow’s portable power stations, such as the DELTA and RIVER series. It can also be used with other devices that accept solar input, provided the appropriate connectors are used.
SKU: n/a -
Bifacial Solar Panels, Monocrystalline Solar Panels, Solar Panels

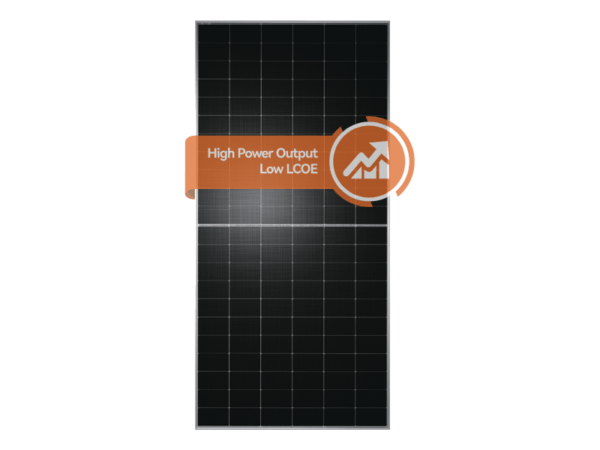

TW Solar 610-Watt N-type Monocrystalline Half-cell Bifacial Solar Panel 66HD610; Voc 48.70 V, Vmp 40.48 V, Imp 15.07 A, Isc 15.94 A, 22.6 % Efficiency
Bifacial Solar Panels, Monocrystalline Solar Panels, Solar PanelsTW Solar 610-Watt N-type Monocrystalline Half-cell Bifacial Solar Panel 66HD610; Voc 48.70 V, Vmp 40.48 V, Imp 15.07 A, Isc 15.94 A, 22.6 % Efficiency
TW Solar 610-Watt N-type Monocrystalline Half-cell Bifacial Solar Panel
- N-type bifacial half-cell technology delivers higher energy yield and superior efficiency.
- Dual-glass construction enhances module strength and long-term durability.
- Lower LCOE achieved through reduced degradation and excellent temperature performance.
- Performs reliably in hot, humid, and dusty conditions.
- Engineered for utility-scale, commercial, and industrial solar applications.
Technical Specifications
- Model: TWMNH-66HD610
- Cell Type: N-type Monocrystalline (TNC)
- Cell Configuration: 132 (6×22) Half-cells
- Maximum Power (Pmax): 610 W
- Open-Circuit Voltage (Voc): 48.70 V
- Voltage at Maximum Power (Vmp): 40.48 V
- Current at Maximum Power (Imp): 15.07 A
- Short-Circuit Current (Isc): 15.94 A
- Module Efficiency: 22.6 %
- Power Tolerance: 0 ~ +3 %
- Maximum System Voltage: 1500 V DC
- Maximum Series Fuse Rating: 30 A
- Operating Temperature: –40 °C to +70 °C
Mechanical Data
- Dimensions: 2382 × 1134 × 30 mm
- Weight: 32.5 kg
- Front Glass: 2.0 mm AR-coated semi-tempered glass
- Rear Glass: 2.0 mm semi-tempered glass
- Frame: Anodised aluminium alloy
- Junction Box: IP68 with 3 bypass diodes
- Cable: 4.0 mm² (+400 mm / –200 mm, customisable length)
- Wind / Snow Load: 2400 Pa / 5400 Pa
- Modules per Pallet: 36 pcs
- Modules per 40′ HC Container: 720 pcs
Performance & Reliability
- Temperature Coefficient of Pmax: –0.28 % / °C
- Temperature Coefficient of Voc: –0.24 % / °C
- Temperature Coefficient of Isc: +0.046 % / °C
- Bifaciality Coefficient (Pmax): 80 ± 5 %
- First-Year Power Degradation: ≤ 1 %
- Annual Degradation (after first year): ≤ 0.4 %
Expected Power Retention after 30 Years: ≈ 87.4 %
-
Certifications: IEC 61215 (2021), IEC 61730 (2023), IEC 62804 (PID), IEC 61701 (Salt Mist), IEC 62716 (Ammonia), IEC 60068-2-68 (Sand); ISO 9001, ISO 14001, ISO 45001, ISO 50001
SKU: n/a -
Bifacial Solar Panels, Monocrystalline Solar Panels, Solar Panels
Jinko Solar 615‑Watt Monocrystalline Solar Panel JKM615N‑78HL4; Voc 55.40V, Vmp 45.69V, Imp 13.46A, Isc 14.18A, Module efficiency of 22.00 %
Bifacial Solar Panels, Monocrystalline Solar Panels, Solar PanelsJinko Solar 615‑Watt Monocrystalline Solar Panel JKM615N‑78HL4; Voc 55.40V, Vmp 45.69V, Imp 13.46A, Isc 14.18A, Module efficiency of 22.00 %
Jinko Solar 615‑Watt Monocrystalline Solar Panel JKM615N‑78HL4
Electrical Characteristics
- Maximum Power (Pₘₐₓ): 615 W
- Maximum Power Voltage (Vₘₚ): 45.69 V
- Maximum Power Current (Iₘₚ): 13.46 A
- Open‑circuit Voltage (Vₒc): 55.40 V
- Short‑circuit Current (Iₛc): 14.18 A
- Module Efficiency (STC): 22.00 %
- Power Tolerance: 0 % to +3 %
- Temperature Coefficients:
- Pₘₐₓ: –0.30 %/°C
- Vₒc: –0.25 %/°C
- Iₛc: +0.046 %/°C
- Nominal Operating Cell Temperature (NOCT): 45 ± 2 °C
Mechanical Characteristics
- Cell Type / Count: N‑Type mono‑crystalline, 156 cells (2 × 78)
- Dimensions (L × W × H): 2 465 × 1 134 × 35 mm
- Weight: 30.6 kg
- Front Glass: 3.2 mm tempered low‑iron, high‑transmission glass
- Frame: Anodised aluminium alloy
- Junction Box: IP68 rated
- Output Cables: 1 × 4.0 mm² (+): 400 mm, (–): 200 mm
System Limits & Durability
- Maximum System Voltage: 1 500 V DC
- Maximum Series Fuse Rating: 30 A
- Operating Temperature Range: –40 °C to +85 °C
- Wind Load Capacity: 2,400 Pa
- Snow Load Capacity: 5,400 Pa
- High salt mist & ammonia resistance
Key Features & Warranty
- SMBB Technology for enhanced light trapping and current collection
- Hot 2.0 Technology minimising LID/LETID
- Excellent anti‑PID performance
- 12-year product warranty
SKU: n/a -
Bifacial Solar Panels, Monocrystalline Solar Panels, Solar Panels
Jinko Solar 590‑Watt Monocrystalline Solar Panel JKM590N‑78HL4; Voc 54.76V, Vmp 44.91V, Imp13.14A, Isc13.71A, Module efficiency of 21.11 %
Bifacial Solar Panels, Monocrystalline Solar Panels, Solar PanelsJinko Solar 590‑Watt Monocrystalline Solar Panel JKM590N‑78HL4; Voc 54.76V, Vmp 44.91V, Imp13.14A, Isc13.71A, Module efficiency of 21.11 %
Jinko Solar 590‑Watt Monocrystalline Solar Panel JKM590N‑78HL4
Electrical Characteristics
- Maximum Power (Pₘₐₓ): 590 W
- Maximum Power Voltage (Vₘₚ): 44.91 V
- Maximum Power Current (Iₘₚ): 13.14 A
- Open‑circuit Voltage (Vₒc): 54.76 V
- Short‑circuit Current (Iₛc): 13.71 A
- Module Efficiency (STC): 21.11 %
- Power Tolerance: 0 % to +3 %
- Temperature Coefficient of Pₘₐₓ: –0.30 %/°C
- Temperature Coefficient of Vₒc: –0.25 %/°C
- Temperature Coefficient of Iₛc: +0.046 %/°C
- Nominal Operating Cell Temperature (NOCT): 45 ± 2 °C
Mechanical Characteristics
- Cell Type / Count: N‑Type mono‑crystalline, 156 cells (2×78)
- Dimensions (L × W × H): 2 465 × 1 134 × 35 mm
- Weight: 34.6 kg
- Front/Back Glass: 2.0 mm heat‑strengthened
- Frame: Anodised aluminium alloy
- Junction Box: IP68 rated
- Output Cables: 1×4.0 mm² (+): 400 mm, (–): 200 mm
System Limits
- Maximum System Voltage: 1,500 V DC
- Maximum Series Fuse Rating: 30 A
- Operating Temperature Range: –40 °C to +85 °C
- Wind Load Capacity: 2,400 Pa
- Snow Load Capacity: 5,400 Pa
Key Features & Warranty
- SMBB Technology for enhanced light trapping and current collection
- Hot 2.0 Technology minimising LID/LETID
- Excellent anti‑PID performance
- Bifacial dual‑glass construction for rear‑side yield gain
- 12-Year product warranty
SKU: n/a
