Browse and buy solar charge controllers from top brands like Felicity Solar and Victron Energy at Kweli.shop for efficient power regulation and battery protection. Our range includes MPPT and PWM controllers, ideal for off-grid and commercial systems. Maximise your solar energy use and extend battery life with reliable, high-quality solutions.
Solar Charge Controllers
Showing all 16 resultsSorted by price: high to low
-
FREE DELIVERYMPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers

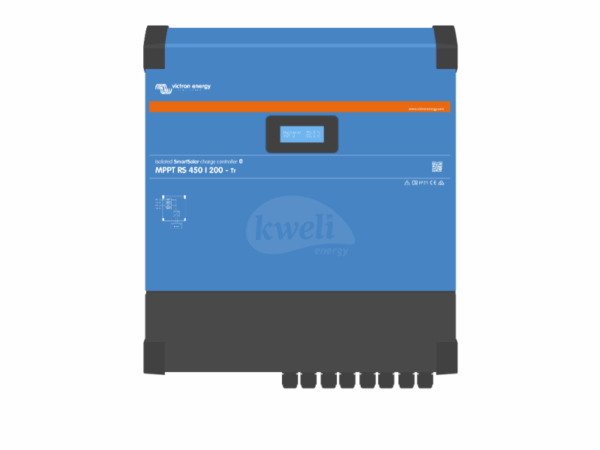

Victron SmartSolar Charge Controller MPPT RS 450/200 Tr Isolated; 450V/200A 48V Charge Controller with Bluetooth
-6%
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT RS 450/200 Tr Isolated; 450V/200A 48V Charge Controller with Bluetooth
Victron SmartSolar Charge Controller MPPT RS 450 200 Tr Isolated
- Rated charge current: 200 amps
- Maximum PV Open Circuit Voltage: 450 volts
- Battery voltage: 48V
- Ultra-fast Maximum Power Point Tracking (MPPT) Solar Charge Controller
The MPPT RS SmartSolar is a 48V solar charge controller with up to 450 VDC PV input and 200 A output. It is used in on-grid and off-grid solar applications where maximum battery charging power is required. - Multiple independent MPPT tracking inputs: With multiple MPPT trackers, you can optimise your solar panel design for maximum performance for your specific location.
- Isolated PV connections for additional safety: Full galvanic isolation between PV and battery connections provides additional overall system safety.
- Wide MPPT voltage range: 65–450 VDC PV operating range, with a 120 VDC PV startup voltage.
- Lightweight, efficient and quiet: Thanks to high-frequency technology and a new design this powerful charger weighs only 13.7 kg for the 200 A model. In addition to this, it has excellent efficiency, low standby power, and a very quiet operation.
- Display and Bluetooth: The display reads battery and controller parameters. The parameters can be accessed with a smartphone or other Bluetooth-enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect.
- PV isolation resistance monitoring for peace of mind at higher voltages: The MPPT RS continuously monitors the PV array and can detect if there are faults that reduce the isolation of the panels to unsafe levels.
- VE.Can and VE.Direct port: for connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Can allows for up to 25 units to be connected together in parallel and synchronise their charging.
- I/O Connections: programmable relay, temperature sensor, auxiliary, digital input and voltage sensor connections. The remote input can accept the Victron small BMS and other BMS with an allow-to-charge signal.
SKU: n/a -
FREE DELIVERYMPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers

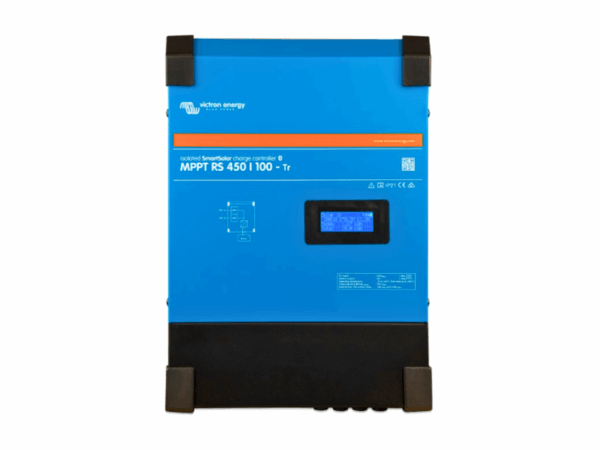

Victron SmartSolar Charge Controller MPPT RS 450/100 – Tr Isolated; 450V/100A 48V Charge Controller with Bluetooth
-7%
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT RS 450/100 – Tr Isolated; 450V/100A 48V Charge Controller with Bluetooth
Victron SmartSolar Charge Controller MPPT RS 450 100 – Tr
- Rated charge current: 100 amps
- Maximum PV Open Circuit Voltage: 450 volts
- Ultra-fast Maximum Power Point Tracking (MPPT) Solar Charge Controller
The MPPT RS SmartSolar is a 48V solar charge controller with up to 450 VDC PV input and 100 A output. It is used in on-grid and off-grid solar applications where maximum battery charging power is required. - Multiple independent MPPT tracking inputs: With multiple MPPT trackers, you can optimise your solar panel design for maximum performance for your specific location.
- Isolated PV connections for additional safety: Full galvanic isolation between PV and battery connections provides additional overall system safety.
- Wide MPPT voltage range: 65–450 VDC PV operating range, with a 120 VDC PV startup voltage.
- Lightweight, efficient and quiet: Thanks to high-frequency technology and a new design this powerful charger weighs only 7.9 kg for the 100 A model. In addition to this, it has excellent efficiency, low standby power, and a very quiet operation.
- Display and Bluetooth: The display reads battery and controller parameters. The parameters can be accessed with a smartphone or other Bluetooth-enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect.
- PV isolation resistance monitoring for peace of mind at higher voltages: The MPPT RS continuously monitors the PV array and can detect if there are faults that reduce the isolation of the panels to unsafe levels.
- VE.Can and VE.Direct port: for connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Can allows for up to 25 units to be connected together in parallel and synchronise their charging.
- I/O Connections: programmable relay, temperature sensor, auxiliary, digital input and voltage sensor connections. The remote input can accept the Victron smallBMS, and other BMS with an allow-to-charge signal.
SKU: n/a -
FREE DELIVERYMPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers

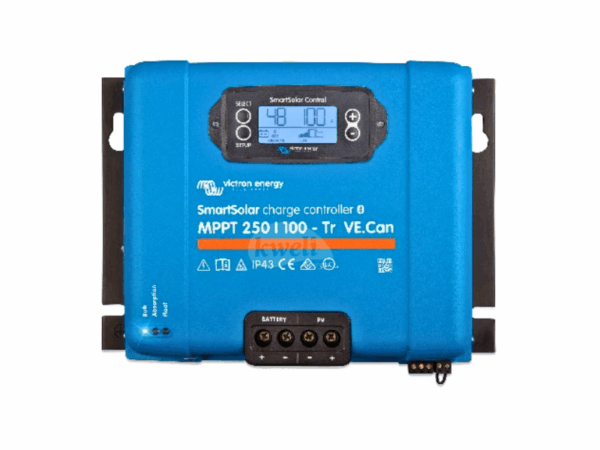

Victron SmartSolar Charge Controller MPPT 250/100Tr VE.Can; 250V 100A 12/24/36/48 Charge Controller with Bluetooth
-33%
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT 250/100Tr VE.Can; 250V 100A 12/24/36/48 Charge Controller with Bluetooth
Victron SmartSolar Charge Controller MPPT 250/100Tr VE.Can
- Rated charge current: 100A
- Maximum PV Open Circuit Voltage: 250V
- Ultra-fast Maximum Power Point Tracking (MPPT): Improves energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
- Advanced Maximum Power Point Detection in case of partial shading conditions: The innovative SmartSolar algorithm will always maximise energy harvest by locking to the optimum MPP.
- Outstanding conversion efficiency: No cooling fan. Maximum efficiency exceeds 99%.
- Flexible charge algorithm: Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch.
- Extensive electronic protection: over-temperature protection and power derating when the temperature is high, PV short circuit and PV reverse polarity protection, and PV reverse current protection.
- Bluetooth Smart built-in: The wireless solution to set up, monitor, update, and synchronise SmartSolar Charge Controllers.
- Internal temperature sensor and optional external battery voltage, temperature, and current sensing via Bluetooth: A Smart Battery Sense, a BMV-712 Smart Battery Monitor, or a SmartShunt can be used to communicate battery voltage and temperature (and current, in the case of a BMV-712 or a SmartShunt) to one or more SmartSolar Charge Controllers.
- VE.Direct or VE.Can: For a wired data connection to a Colour Control GX, other GX products, PC, or other devices.
- Synchronized parallel charging with VE.Can or Bluetooth: Up to 25 units can be synchronised with VE.Can, and up to 10 units with Bluetooth.
- Fully discharged battery recovery function will initiate charging even if the battery has been discharged to zero volts. will reconnect to a fully discharged Li-ion battery with an integrated disconnect function.
- Remote on-off: To connect, for example, to a VE.BUS BMS.
- Programmable relay: can be programmed to trip on an alarm or other events.
- Optional: SmartSolar pluggable LCD display.
SKU: n/a -
FREE DELIVERYMPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers

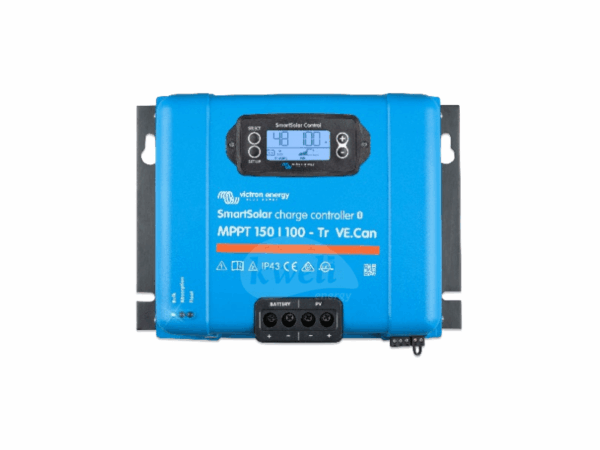

Victron SmartSolar Charge Controller MPPT 150/100Tr VE.Can; 150V 100A 12/24/36/48 Charge Controller with Bluetooth
-24%
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT 150/100Tr VE.Can; 150V 100A 12/24/36/48 Charge Controller with Bluetooth
Victron SmartSolar Charge Controller MPPT 150/100Tr VE.Can
-
Ultra-fast MPPT: Enhances energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers, especially in varying light conditions.
-
Advanced MPPT Detection: Optimises energy harvest under partial shading conditions by ensuring the controller locks onto the optimal MPP, avoiding suboptimal points.
-
High Efficiency: No cooling fan is required; efficiency exceeds 98%.
-
Flexible Charge Algorithm: Fully programmable with eight pre-set algorithms, offering customisation for different battery types.
-
Robust Protection: Includes over-temperature, PV short circuit, reverse polarity, and current protection.
-
Bluetooth Smart Built-in: Enables wireless setup, monitoring, updates, and synchronisation with other Victron devices.
-
Wired Connectivity: Options for VE.Direct or VE.Can connect to other systems or monitoring devices.
-
Battery Recovery Function: Capable of charging batteries discharged to zero volts and reconnecting to fully discharged Li-ion batteries with integrated disconnect functions.
-
Programmable Relay: Allows for custom alarms or event-triggered actions.
-
Optional LCD Display: Easily attachable to the front of the controller for on-site monitoring
SKU: n/a -
-
FREE DELIVERYMPPT Charge controllers, Solar Charge Controllers, TBB Charge Controllers
TBB SolarMate 250V 100A MPPT Solar Charge Controller SP250/100; 48V, Bluetooth LCD Display, High Efficiency, 5880W/7500W, 250Vpv Input
-24%
MPPT Charge controllers, Solar Charge Controllers, TBB Charge ControllersTBB SolarMate 250V 100A MPPT Solar Charge Controller SP250/100; 48V, Bluetooth LCD Display, High Efficiency, 5880W/7500W, 250Vpv Input
TBB SolarMate 250V 100A MPPT Solar Charge Controller SP250/100
- Nominal Battery Voltage: 48V
- Maximum Charging Current: 100A
- Maximum Charging Power:
- 48V: 5,880W
- Maximum PV Input Power:
- 48V: 7,500W
- Maximum PV Input Voltage (Voc): 250V
- MPPT Voltage Range: 65–245V
- Max PV Short Circuit Current: 80A
- Efficiency:
- Maximum MPPT Efficiency: ≥99.9%
- Overall Efficiency: Up to 98%
- Self-Consumption: 37mA @ 48V
Charging Parameters:
- Charge Voltage (Absorption): 57.6V
- Charge Voltage (Float): 54V
- Charging Algorithm: TBB Premium II multistage
- Temperature Compensation: -3mV/°C/cell (default)
- Equalization Charging: Programmable
- Display: LED + LCD
- Communication Port: RS485, with support for auxiliary contact and T-Bus communication
- Parallel Functionality: Up to 6 units can operate in parallel for scalability
- Data Logging: 365 days of historical records, including:
- Real-time solar array voltage, battery voltage, and charging data
- Logs for PV start charging time, transfer to float, power loss, and fault time
- Cooling: Forced fan
- Operating Temperature: -25°C to 60°C (power derated above 40°C)
- Storage Temperature: -40°C to 70°C
- Humidity: 5%–95% (non-condensing)
- Altitude: Up to 3,000m (fully rated up to 2,000m)
Physical:
- Protection Category: IP21
- Dimensions (L × W × H): 352.2 × 293 × 116.2 mm
- Weight: 7.8 kg
Certifications:
- EN61000-6-1, EN61000-6-3, EN62109-1
SKU: n/a -
FREE DELIVERYMPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers
Victron SmartSolar Charge Controller MPPT 150/70Tr VE.Can; 150V 70A 12/24/36/48 Charge Controller with Bluetooth
-26%
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT 150/70Tr VE.Can; 150V 70A 12/24/36/48 Charge Controller with Bluetooth

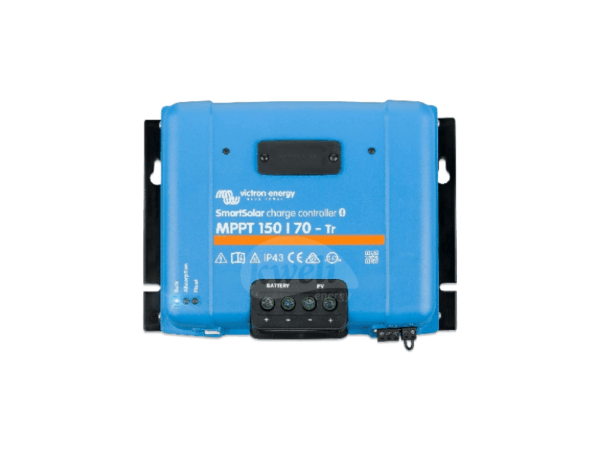

Victron SmartSolar Charge Controller MPPT 150/70Tr VE.Can
- Rated charge current: 70A
- Maximum PV Open Circuit Voltage: 150V
- Ultra-fast MPPT: Enhances energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers, especially in varying light conditions.
- Advanced MPPT Detection: Optimises energy harvest under partial shading conditions by ensuring the controller locks onto the optimal MPP, avoiding suboptimal points.
- High Efficiency: No cooling fan is required; efficiency exceeds 98%.
- Flexible Charge Algorithm: Fully programmable with eight pre-set algorithms, offering customisation for different battery types.
- Robust Protection: Includes over-temperature, PV short circuit, reverse polarity, and current protection.
- Bluetooth Smart Built-in: Enables wireless setup, monitoring, updates, and synchronisation with other Victron devices.
- Wired Connectivity: Options for VE.Direct or VE.Can connect to other systems or monitoring devices.
- Battery Recovery Function: Capable of charging batteries discharged to zero volts and reconnecting to fully discharged Li-ion batteries with integrated disconnect functions.
- Programmable Relay: Allows for custom alarms or event-triggered actions.
- Optional LCD Display: Easily attachable to the front of the controller for on-site monitoring
SKU: n/a -
FREE DELIVERYMPPT Charge controllers, Solar Charge Controllers, TBB Charge Controllers
TBB SolarMate 150V 80A MPPT Solar Charge Controller SP150-80; 24V/48V, Bluetooth LCD Display, High Efficiency, 3000W/6000W, 150Vpv Input
-24%
MPPT Charge controllers, Solar Charge Controllers, TBB Charge ControllersTBB SolarMate 150V 80A MPPT Solar Charge Controller SP150-80; 24V/48V, Bluetooth LCD Display, High Efficiency, 3000W/6000W, 150Vpv Input

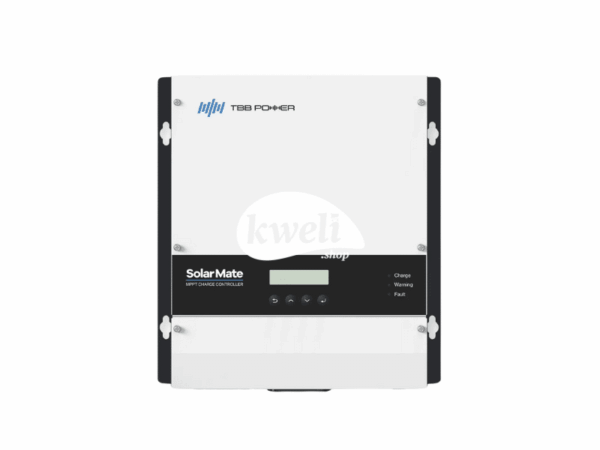

TBB SolarMate 150V 80A MPPT Solar Charge Controller SP150-80
- Nominal Battery Voltage: Compatible with 24V and 48V systems.
- Maximum Charging Current: 80 Amperes.
- Maximum PV Input Power:
- 24V system: up to 4,500W
- 48V system: up to 9,000W
- Maximum PV Input Voltage: 150V.
- MPPT Voltage Range: 65V to 145V.
- Maximum Efficiency: Up to 98%.
- MPPT Efficiency: Up to 99.9%.
Charging Parameters:
- Absorption Charge Voltage:
- 24V system: 28.8V
- 48V system: 57.6V
- Float Charge Voltage:
- 24V system: 27.0V
- 48V system: 54.0V
- Charging Algorithm: TBB Premium III multistage charging, suitable for various lead-acid and lithium-ion battery types.
Physical Specifications:
- Dimensions: 353 mm (H) x 293 mm (W) x 117 mm (D).
- Weight: 7.8 kg.
- Protection Class: IP21.
- Operating Temperature Range: -25°C to +60°C.
- Humidity: 5% to 95% (non-condensing).
SKU: n/a -
FREE DELIVERYMPPT Charge controllers, Solar Charge Controllers

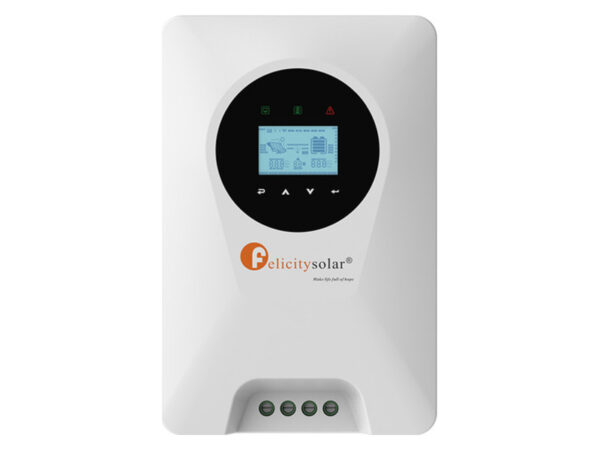

Felicity 120A 48V MPPT Solar Charge Controller SCCM12048-II; 195V/120A, up to 6600Wpv @ 48V, 3300Wpv @24V, 1650Wpv @12V
-22%
MPPT Charge controllers, Solar Charge ControllersFelicity 120A 48V MPPT Solar Charge Controller SCCM12048-II; 195V/120A, up to 6600Wpv @ 48V, 3300Wpv @24V, 1650Wpv @12V
Felicity 120A 48V MPPT Solar Charge Controller SCCM12048-II
- System voltage: 12V/24V/48/(Auto detection)
- Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
- Automatic battery voltage detection (12V/24V/48V)
- Three-stage charging optimises battery performance
- Charging Stages: bulk, absorption, floatBulk, absorption, float
- Maximum charging current up to 120A
- Max PV Input Power @12V = 1650W,
- Max PV Input Power @24V = 3300W,
- Max PV Input Power @48V = 6,600W
- PV Array MPPT Vol Range: 15V-170V/ 30-170V/ 60-170V
- Maximum efficiency up to 98%• Battery temperature sensor (BTS) automatically provides temperature compensation
- Integrated intelligent slot compatible with SNMP/MODBUS communication
- Weight:
SKU: n/a -
FREE DELIVERYMPPT Charge controllers, Solar Charge Controllers
Felicity 100A 48V MPPT Solar Charge Controller SCCM10048; 195V/100A, up to 5,500Wpv @ 48V, 2750Wpv @24V, 1375Wpv @12V
-20%
MPPT Charge controllers, Solar Charge ControllersFelicity 100A 48V MPPT Solar Charge Controller SCCM10048; 195V/100A, up to 5,500Wpv @ 48V, 2750Wpv @24V, 1375Wpv @12V
Felicity 100A 48V MPPT Solar Charge Controller SCCM10048
- System voltage: 12V/24V/48/(Auto detection)
- Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
- Automatic battery voltage detection (12V/24V/48V)
- Three-stage charging optimises battery performance
- Charging Stages: bulk, absorption, floatBulk, absorption, float
- Maximum charging current up to 100A
- Max PV Input Power @12V = 1375W,
- Max PV Input Power @24V = 2750W,
- Max PV Input Power @48V = 5500W
- PV Array MPPT Vol Range: 15V-170V/ 30-170V/ 60-170V
- Maximum efficiency up to 98%• Battery temperature sensor (BTS) automatically provides temperature compensation
- Integrated intelligent slot compatible with SNMP/MODBUS communication
- Weight: 7kg
SKU: n/a -
FREE DELIVERYMPPT Charge controllers, Solar Charge Controllers
Felicity 80A 48V MPPT Solar Charge Controller SCCM8048-II; 145V/80A, up to 4400Wpv @ 48V, 2200Wpv @24V, 1100Wpv @12V
-21%
MPPT Charge controllers, Solar Charge ControllersFelicity 80A 48V MPPT Solar Charge Controller SCCM8048-II; 145V/80A, up to 4400Wpv @ 48V, 2200Wpv @24V, 1100Wpv @12V

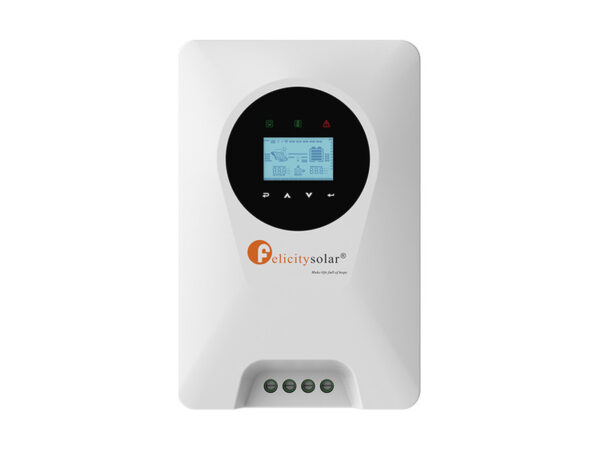

Felicity 80A 48V MPPT Solar Charge Controller SCCM8048-II
- Maximum Solar Input Voltage: 145V
- PV Start-up Voltage: 15V
- PV Array MPPT Voltage Range: 15-130V DC/30-130V DC/ 60-130V DC
- System voltage: 12V/24V/48/(Auto detection)
- Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
- Automatic battery voltage detection (12V/24V/48V)
- Three-stage charging optimises battery performance
- Charging Stages: bulk, absorption, floatBulk, absorption, float
- Maximum charging current up to 80A
- Max PV Input Power @12V = 1,100W,
- Max PV Input Power @24V = 2,200W,
- Max PV Input Power @48V = 4,400W
- PV Array MPPT Vol Range: 15V-170V/ 30-170V/ 60-170V
- Maximum efficiency up to 98%• Battery temperature sensor (BTS) automatically provides temperature compensation
- Integrated intelligent slot compatible with SNMP/MODBUS communication
- Weight: 5.9kg
- Protections:
Solar High Voltage Disconnect
Solar High Voltage Reconnect
Battery High Voltage Disconnect
Battery High Voltage Reconnect
High Temperature Disconnect
High-Temperature Reconnect
SKU: n/a -
FREE DELIVERYMPPT Charge controllers, Solar Charge Controllers
Felicity 60A MPPT Solar Charge Controller SCCM6048-II; 145V/60A, up to 3300Wpv @ 48V, 1650Wpv @24V, 825Wpv @12V
-22%
MPPT Charge controllers, Solar Charge ControllersFelicity 60A MPPT Solar Charge Controller SCCM6048-II; 145V/60A, up to 3300Wpv @ 48V, 1650Wpv @24V, 825Wpv @12V
Felicity 60A MPPT Solar Charge Controller SCCM6048-II
-
Compatible for PV systems in 12V, 24V or 48V
-
Maximum charging current up to 60A
-
Automatic battery voltage detection (lithium battery voltage needs to be set manually)
-
Supports lithium battery and various lead-acid batteries, AGM and gel battery
-
Integrated intelligent slot compatible with MODBUS communication
-
Caution, risk of electric shock, energy storage timed discharge.
Specifications
- Maximum Solar Input Voltage: 145V
- PV Start-up Voltage: 15V
- System voltage: 12V/24V/48/(Auto detection)
- Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
- Automatic battery voltage detection (12V/24V/48V)
- Three-stage charging optimises battery performance
- Charging Stages: bulk, absorption, floatBulk, absorption, float
- Maximum charging current up to 60A
- Max PV Input Power @12V = 825W,
- Max PV Input Power @24V = 1,650W,
- Max PV Input Power @48V = 3,300W
- PV Array MPPT Voltage Range: 15-130V DC/30-130V DC/ 60-130V DC
- Maximum efficiency up to 98%• Battery temperature sensor (BTS) automatically provides temperature compensation
- Integrated intelligent slot compatible with SNMP/MODBUS communication
- Weight: 4.7kg
- Protections:
Solar High Voltage Disconnect
Solar High Voltage Reconnect
Battery High Voltage Disconnect
Battery High Voltage Reconnect
High Temperature Disconnect
High-Temperature Reconnect
SKU: n/a -
-
FREE DELIVERYMPPT Charge controllers, Solar Charge Controllers, TBB Charge Controllers

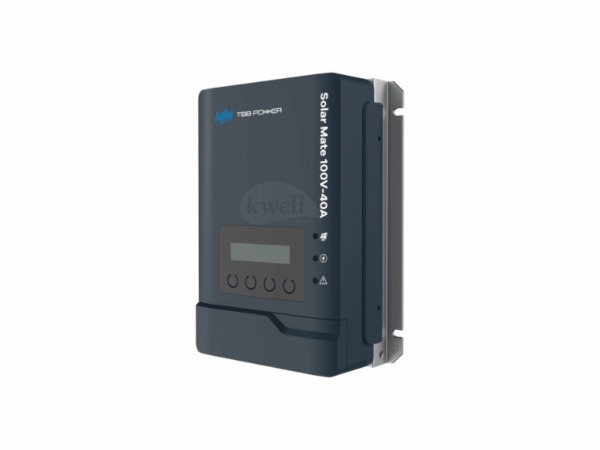

TBB SolarMate 100V 40A MPPT Solar Charge Controller SP100-40; 12V/24V/48V, Bluetooth Display, High Efficiency, 588W/1176W/2352W, 100Vpv input
-16%
MPPT Charge controllers, Solar Charge Controllers, TBB Charge ControllersTBB SolarMate 100V 40A MPPT Solar Charge Controller SP100-40; 12V/24V/48V, Bluetooth Display, High Efficiency, 588W/1176W/2352W, 100Vpv input
TBB SolarMate 100V 40A MPPT Solar Charge Controller SP100-40
- Nominal Battery Voltage: Compatible with 12V, 24V, and 48V systems.
- Maximum Charging Current: 40 Amperes.
- Maximum PV Input Power:
- 12V system: up to 588W
- 24V system: up to 1176W
- 48V system: up to 2352W
- Maximum PV Input Voltage: 100V.
- Maximum Efficiency: Up to 98.2%.
- MPPT Efficiency: Up to 99%.
Charging Parameters:
- Absorption Charge Voltage:
- 12V system: 14.4V
- 24V system: 28.8V
- 48V system: 57.6V
- Float Charge Voltage:
- 12V system: 13.5V
- 24V system: 27.0V
- 48V system: 54.0V
- Charging Algorithm: TBB Premium II multistage charging, suitable for various lead-acid battery types.
Physical Specifications:
- Dimensions: 205 mm (H) x 160 mm (W) x 65 mm (D).
- Weight: 1.4 kg.
- Protection Class: IP31.
- Operating Temperature Range: -40°C to +70°C.
- Humidity: 5% to 95% (non-condensing)
SKU: n/a -
FREE DELIVERYMPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge Controllers
Victron SmartSolar Charge Controller MPPT 100/30; 100V 30A 12/24V Charge Controller with Bluetooth
-30%
MPPT Charge controllers, Solar Charge Controllers, Victron Solar Charge ControllersVictron SmartSolar Charge Controller MPPT 100/30; 100V 30A 12/24V Charge Controller with Bluetooth
Victron SmartSolar Charge Controller MPPT 100/30
- Rated Charge Current: 30 A,
- Maximum PV Open Circuit Voltage: 100 V
- Ultra-fast MPPT: Improves energy harvest by up to 30% compared to PWM controllers.
- Advanced MPPT Detection: Maximises energy harvest even in partial shading conditions.
- High Efficiency: Features an outstanding conversion efficiency of over 98% without the need for a cooling fan.
- Flexible Charge Algorithm: Fully programmable with multiple pre-set algorithms.
- Extensive Protection: Includes over-temperature, PV short circuit, PV reverse polarity, and reverse current protection.
- Bluetooth Smart Built-in: Allows for wireless setup, monitoring, updates, and synchronisation.
- VE.Direct Port: For wired connections to various devices.
- Battery Recovery Function: Can initiate charging for batteries discharged to zero volts and reconnect to fully discharged Li-ion batteries.
SKU: n/a -
FREE DELIVERYMPPT Charge controllers, Solar Charge Controllers
Felicity 45A MPPT Solar Charge Controller SCCM4524-II; 95V/45A, up to 1250Wpv @24V, 625Wpv @12V
-14%
MPPT Charge controllers, Solar Charge ControllersFelicity 45A MPPT Solar Charge Controller SCCM4524-II; 95V/45A, up to 1250Wpv @24V, 625Wpv @12V
Felicity 45A MPPT Solar Charge Controller SCCM4524-II
- Compatible for PV systems in 12V, 24V
- Maximum charging current up to 45A
- Automatic battery voltage detection (lithium battery voltage needs to be set manually)
- Supports lithium battery and various lead-acid batteries, AGM and gel battery
- Integrated intelligent slot compatible with MODBUS communication
- Caution, risk of electric shock, energy storage timed discharge.
- Charging Stages: Bulk, Absorption, Float
- Temperature Compensation Coefficient: -5mV/℃/cell (25°C ref.)
- Temperature Compensation Range: 0°C to 50°C
- Transient Surge Protection: 4500 Watts/port
Specifications
- Maximum Solar Input Voltage: 95V
- PV Start-up Voltage: 15V
- System voltage: 12V/24V (Auto detection)
- Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
- Automatic battery voltage detection (12V/24V)
- Three-stage charging optimises battery performance
- Charging Stages: bulk, absorption, floatBulk, absorption, float
- Maximum charging current up to 45A
- Max PV Input Power @12V = 625W,
- Max PV Input Power @24V = 1,250W,
- PV Array MPPT Voltage Range: 15-80V DC/30-80V DC
- PV array: 12V DC/24V DC
- Maximum efficiency up to 98%• Battery temperature sensor (BTS) automatically provides temperature compensation
- Integrated intelligent slot compatible with SNMP/MODBUS communication
- Weight: 1.8kg
- Protections:
Solar High Voltage Disconnect
Solar High Voltage Reconnect
Battery High Voltage Disconnect
Battery High Voltage Reconnect
High Temperature Disconnect
High-Temperature Reconnect
SKU: n/a -
FREE DELIVERYMPPT Charge controllers, Solar Charge Controllers
Felicity 30A MPPT Solar Charge Controller SCCM3024-II; 95V/30A, up to 830Wpv @24V, 420Wpv @12V
-0%
MPPT Charge controllers, Solar Charge ControllersFelicity 30A MPPT Solar Charge Controller SCCM3024-II; 95V/30A, up to 830Wpv @24V, 420Wpv @12V
Felicity 30A MPPT Solar Charge Controller SCCM3024-II
- Compatible for PV systems in 12V, 24V
- Maximum charging current up to 30A
- Automatic battery voltage detection (lithium battery voltage needs to be set manually)
- Supports lithium battery and various lead-acid batteries, AGM and gel battery
- Integrated intelligent slot compatible with MODBUS communication
- Caution, risk of electric shock, energy storage timed discharge.
- Charging Stages: Bulk, Absorption, Float
- Temperature Compensation Coefficient: -5mV/℃/cell (25°C ref.)
- Temperature Compensation Range: 0°C to 50°C
- Transient Surge Protection: 4500 Watts/port
Specifications
- Maximum Solar Input Voltage: 95V
- PV Start-up Voltage: 15V
- System voltage: 12V/24V (Auto detection)
- Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
- Automatic battery voltage detection (12V/24V)
- Three-stage charging optimises battery performance
- Charging Stages: bulk, absorption, floatBulk, absorption, float
- Maximum charging current up to 30A
- Max PV Input Power @12V = 420W,
- Max PV Input Power @24V = 830W,
- PV Array MPPT Voltage Range: 15-80V DC/30-80V DC
- PV array: 12V DC/24V DC
- Maximum efficiency up to 98%• Battery temperature sensor (BTS) automatically provides temperature compensation
- Integrated intelligent slot compatible with SNMP/MODBUS communication
- Weight: 1.2kg
- Protections:
Solar High Voltage Disconnect
Solar High Voltage Reconnect
Battery High Voltage Disconnect
Battery High Voltage Reconnect
High Temperature Disconnect
High-Temperature Reconnect
SKU: n/a -
FREE DELIVERYMPPT Charge controllers, Solar Charge Controllers, TBB Charge Controllers
TBB SolarMate 100V 20A MPPT Solar Charge Controller SP100-20; 12V/24V/48V, Bluetooth Display, High Efficiency, 294W/588W/1176W, 100Vpv input
-55%
MPPT Charge controllers, Solar Charge Controllers, TBB Charge ControllersTBB SolarMate 100V 20A MPPT Solar Charge Controller SP100-20; 12V/24V/48V, Bluetooth Display, High Efficiency, 294W/588W/1176W, 100Vpv input
TBB SolarMate 100V 20A MPPT Solar Charge Controller SP100-20
- Nominal Battery Voltage: Compatible with 12V, 24V, and 48V systems.
- Maximum Charging Current: 20 Amperes.
- Maximum PV Input Power:
- 12V system: up to 294W
- 24V system: up to 588W
- 48V system: up to 1176W
- Maximum PV Input Voltage: 100V.
- Maximum Efficiency: Up to 98.2%.
- MPPT Efficiency: Up to 99%.
Charging Parameters:
- Absorption Charge Voltage:
- 12V system: 14.4V
- 24V system: 28.8V
- 48V system: 57.6V
- Float Charge Voltage:
- 12V system: 13.5V
- 24V system: 27.0V
- 48V system: 54.0V
- Charging Algorithm: TBB Premium II multistage charging, suitable for various lead-acid battery types.
Physical Specifications:
- Dimensions: 205 mm (H) x 160 mm (W) x 65 mm (D).
- Weight: 1.4 kg.
- Protection Class: IP31.
- Operating Temperature Range: -40°C to +70°C.
- Humidity: 5% to 95% (non-condensing).
Features:
- Bluetooth connectivity: allows monitoring and configuration via the TBB SolarMate app.
- LCD Display: Provides real-time system status and data.
- Communication Port: RS485 interface for integration with other devices.
- Data Logging: Supports 365 days of historical data recording.
- Protection Features: Includes over-temperature, over-voltage, and over-current protections.
SKU: n/a
