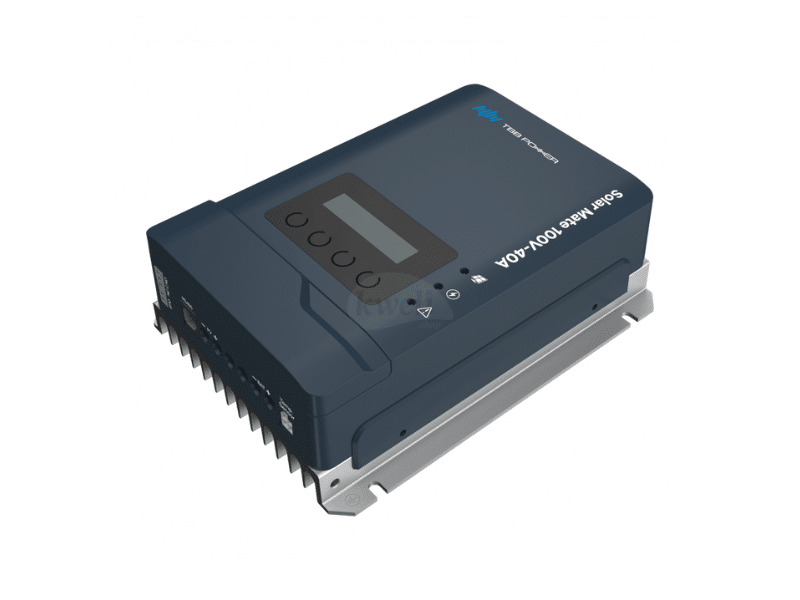

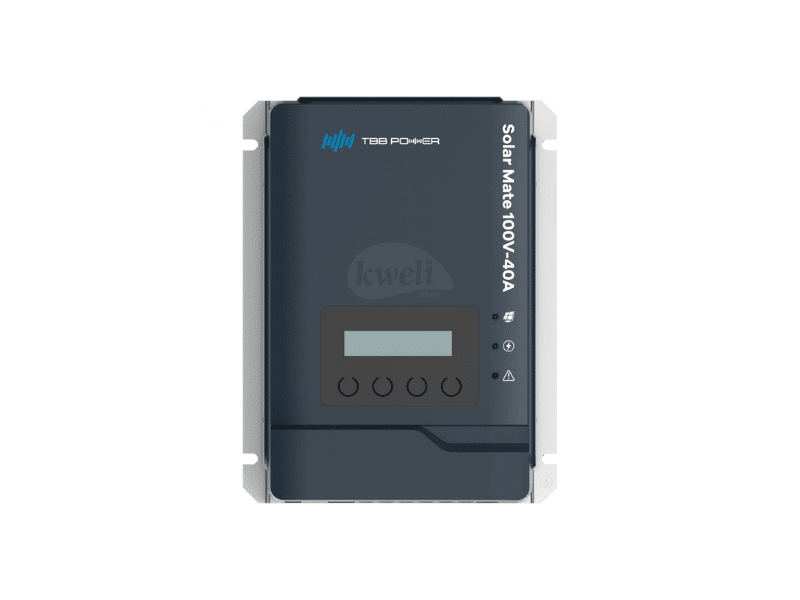

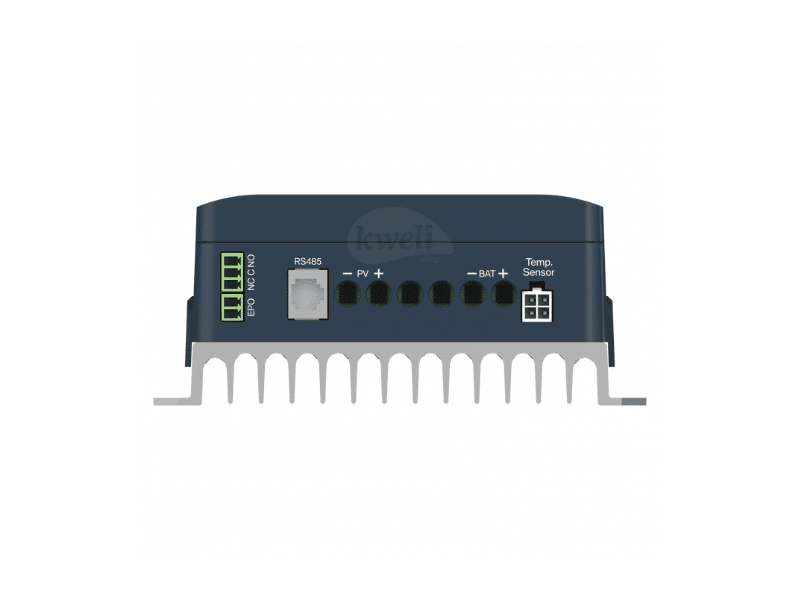

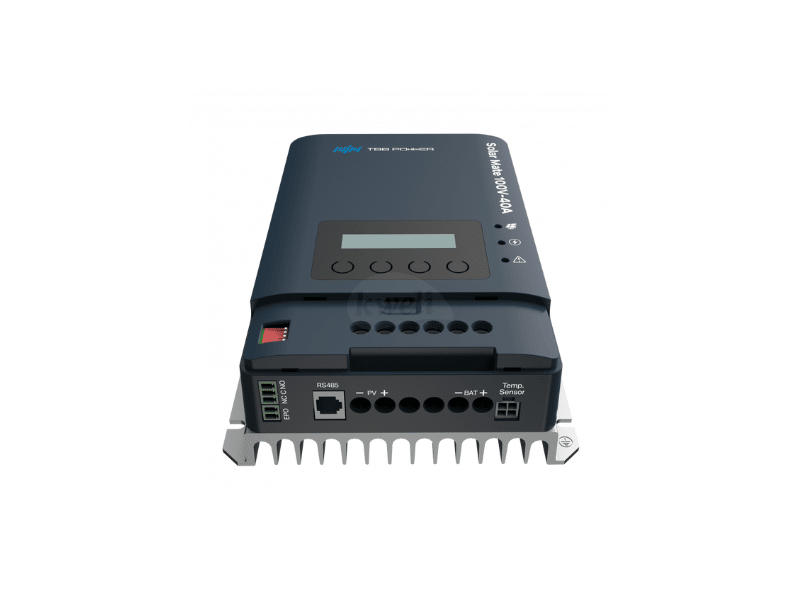

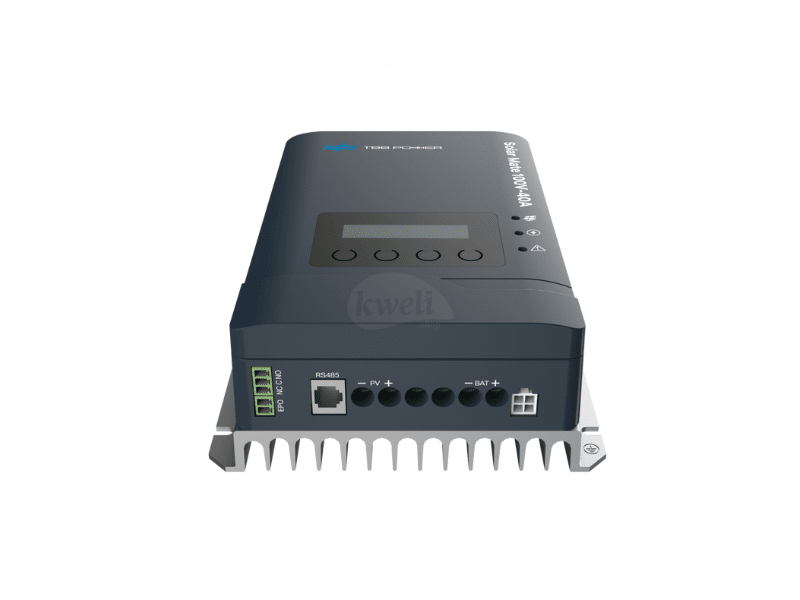

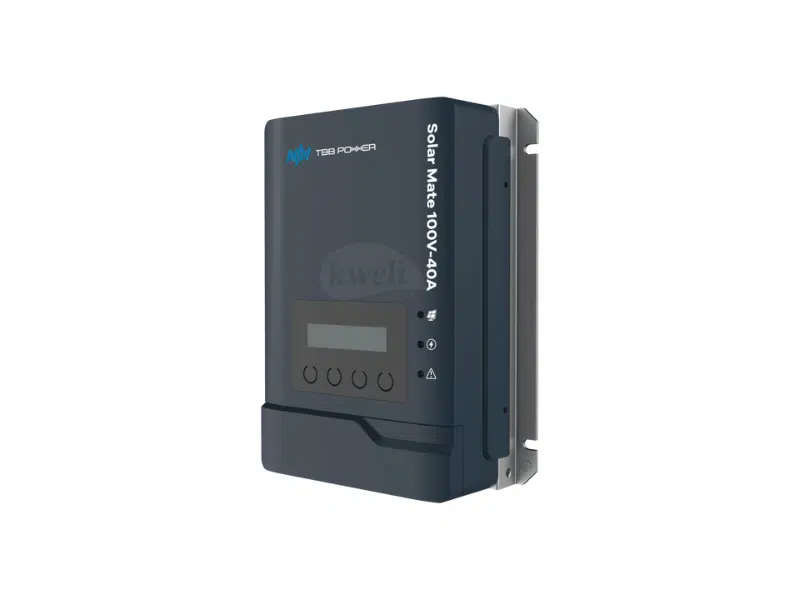

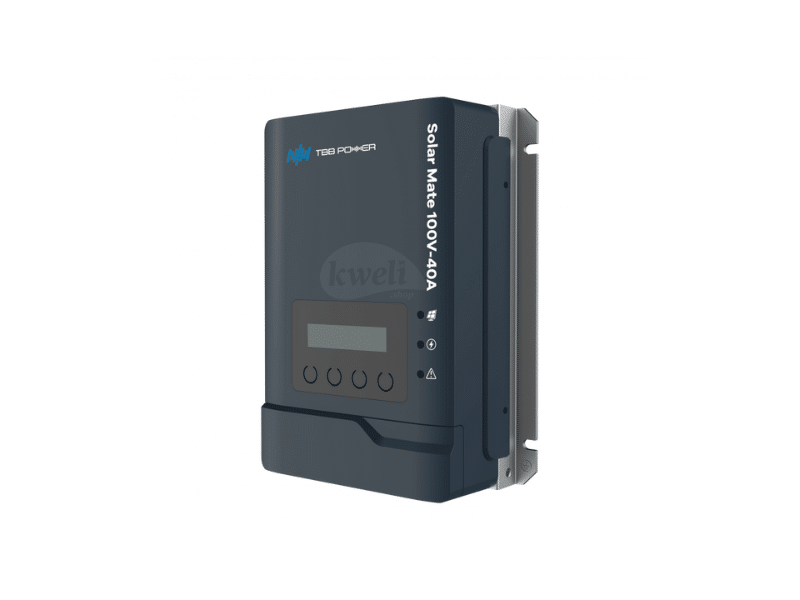

TBB SolarMate 100V 40A MPPT Solar Charge Controller SP100-40; 12V/24V/48V, Bluetooth Display, High Efficiency, 588W/1176W/2352W, 100Vpv input
TBB SolarMate 100V 40A MPPT Solar Charge Controller SP100-40; 12V/24V/48V, Bluetooth Display, High Efficiency, 588W/1176W/2352W, 100Vpv input - Image 2
TBB SolarMate 100V 40A MPPT Solar Charge Controller SP100-40; 12V/24V/48V, Bluetooth Display, High Efficiency, 588W/1176W/2352W, 100Vpv input - Image 3
TBB SolarMate 100V 40A MPPT Solar Charge Controller SP100-40; 12V/24V/48V, Bluetooth Display, High Efficiency, 588W/1176W/2352W, 100Vpv input - Image 4
TBB SolarMate 100V 40A MPPT Solar Charge Controller SP100-40; 12V/24V/48V, Bluetooth Display, High Efficiency, 588W/1176W/2352W, 100Vpv input - Image 5
TBB SolarMate 100V 40A MPPT Solar Charge Controller SP100-40; 12V/24V/48V, Bluetooth Display, High Efficiency, 588W/1176W/2352W, 100Vpv input - Image 6

TBB SolarMate 100V 40A MPPT Solar Charge Controller SP100-40; 12V/24V/48V, Bluetooth Display, High Efficiency, 588W/1176W/2352W, 100Vpv input

Original price was: UGX 700,000.Current price is: UGX 590,000.

TBB SolarMate 100V 40A MPPT Solar Charge Controller SP100-40

  • Nominal Battery Voltage: Compatible with 12V, 24V, and 48V systems.
  • Maximum Charging Current: 40 Amperes.
  • Maximum PV Input Power:
    • 12V system: up to 588W
    • 24V system: up to 1176W
    • 48V system: up to 2352W
  • Maximum PV Input Voltage: 100V.
  • Maximum Efficiency: Up to 98.2%.
  • MPPT Efficiency: Up to 99%.

Charging Parameters:

  • Absorption Charge Voltage:
    • 12V system: 14.4V
    • 24V system: 28.8V
    • 48V system: 57.6V
  • Float Charge Voltage:
    • 12V system: 13.5V
    • 24V system: 27.0V
    • 48V system: 54.0V
  • Charging Algorithm: TBB Premium II multistage charging, suitable for various lead-acid battery types.

Physical Specifications:

  • Dimensions: 205 mm (H) x 160 mm (W) x 65 mm (D).
  • Weight: 1.4 kg.
  • Protection Class: IP31.
  • Operating Temperature Range: -40°C to +70°C.
  • Humidity: 5% to 95% (non-condensing)



Categories ,
Kweli flexible payment options available

Choose an eligible Kweli payment option for this item. Approval is required for instalment and advance options.

Kweli Advance - UGX 413,000 Upfront payment Apply. Get approved. Pay UGX 413,000. Receive in 2-7 days. Clear balance slowly. Kweli Smart Instalments - 6 payments - UGX 98,333 per payment Start with UGX 98,333. Pay consistently. Receive after 4 instalments. Clear the balance. Kweli Smart Instalments - 10 payments - UGX 59,000 per payment Start with UGX 59,000. Pay consistently. Receive after 7 instalments. Clear the balance.
View options
Post on Faacebook
Post on X
Share via WhatsApp
Print
Send via Email

Description

TBB SolarMate 100V 40A MPPT Solar Charge Controller SP100-40

  • Bluetooth connectivity: allows monitoring and configuration via the TBB SolarMate app.
  • LCD Display: Provides real-time system status and data.
  • Communication Port: RS485 interface for integration with other devices.
  • Data Logging: Supports 365 days of historical data recording.
  • Protection Features: Includes over-temperature, over-voltage, and over-current protections.
