Victron SmartSolar Charge Controller MPPT RS 450/200 Tr Isolated; 450V/200A 48V Charge Controller with Bluetooth

Original price was: UGX9,000,000.Current price is: UGX8,490,000.

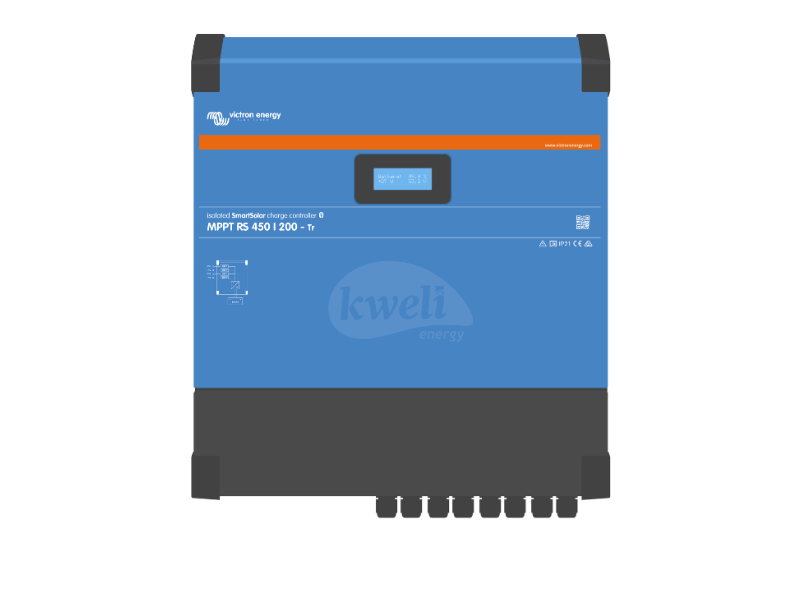

Victron SmartSolar Charge Controller MPPT RS 450 200 Tr Isolated

  • Rated charge current: 200 amps
  • Maximum PV Open Circuit Voltage: 450 volts
  • Battery voltage: 48V
  • Ultra-fast Maximum Power Point Tracking (MPPT) Solar Charge Controller
    The MPPT RS SmartSolar is a 48V solar charge controller with up to 450 VDC PV input and 200 A output. It is used in on-grid and off-grid solar applications where maximum battery charging power is required.

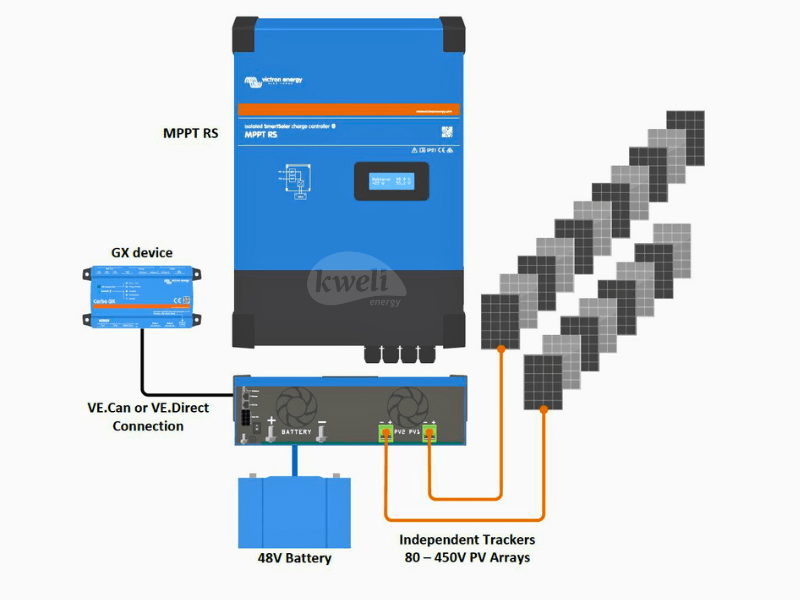

  • Multiple independent MPPT tracking inputs: With multiple MPPT trackers, you can optimise your solar panel design for maximum performance for your specific location.
  • Isolated PV connections for additional safety: Full galvanic isolation between PV and battery connections provides additional overall system safety.
  • Wide MPPT voltage range: 65–450 VDC PV operating range, with a 120 VDC PV startup voltage.
  • Lightweight, efficient and quiet: Thanks to high-frequency technology and a new design this powerful charger weighs only 13.7 kg for the 200 A model. In addition to this, it has excellent efficiency, low standby power, and a very quiet operation.
  • Display and Bluetooth: The display reads battery and controller parameters. The parameters can be accessed with a smartphone or other Bluetooth-enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect.
  • PV isolation resistance monitoring for peace of mind at higher voltages: The MPPT RS continuously monitors the PV array and can detect if there are faults that reduce the isolation of the panels to unsafe levels.
  • VE.Can and VE.Direct port: for connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Can allows for up to 25 units to be connected together in parallel and synchronise their charging.
  • I/O Connections: programmable relay, temperature sensor, auxiliary, digital input and voltage sensor connections. The remote input can accept the Victron small BMS and other BMS with an allow-to-charge signal.
Categories , ,
Post on Faacebook
Post on X
Share via WhatsApp
Print
Send via Email

Description

Victron SmartSolar Charge Controller MPPT RS 450 200 Tr Isolated

  • Battery voltage: 48V
  • Rated charge current: 200 Amps
  • Maximum charge power: 11.5 kW at 57.6V
  • Charge voltage ‘absorption’ Default setting: 57.6 V (adjustable)
  • Charge voltage ‘float’ Default setting: 55,2 V (adjustable)
  • Programmable voltage range: Minimum: 36 V
  • Maximum: 60 V (7)
  • Charge algorithm: Multi-stage adaptive (adjustable)
  • Battery temperature sensor Included
  • Maximum efficiency: 96 %
  • Self-consumption: 15 mA
  • Maximum DC PV voltage: 450 V
  • Start-up voltage: 120 V
  • MPPT operating voltage range: 65 – 450 V (1)
  • Number of trackers: 4
  • Max. PV operational input current: 18 A per tracker
  • Max. PV short circuit current: 20 A per tracker
  • Max. DC output charging power: 4000 W per tracker, 11520 W total
  • Maximum PV array size per tracker: 7200 Wp (450 V x 20 A)
  • PV Isolation fail level: 100 kΩ
  • Synchronised Parallel Operation Yes, up to 25 units with VE.Can
  • Programmable relay: Yes
  • Protection
  • PV reverse polarity
  • Output: short circuit
  • Over Temperature
  • Data communication VE.Direct port, VE.Can port, & Bluetooth (6)
  • Bluetooth frequency: 2402 – 2480 MHz
  • Bluetooth power: (4 dBm)
  • General purpose analogue/digital in port: Yes, 2x
  • Remote on-off:  Yes
  • Operating temperature range: -40 to +60 °C (fan-assisted cooling)
  • Humidity (non-condensing) max. 95%
  • Material & colour: steel, blue RAL 5012
  • Protection category IP21
  • Battery-connection M8 bolts
  • Power terminals PV input (-Tr version): 16 mm2
  • Weight: 13.7 kg
  • Dimensions (h x w x d) in mm: 487 x 434 x 146
    STANDARDS
    Safety EN-IEC 62109-1, EN-IEC 62109-2
