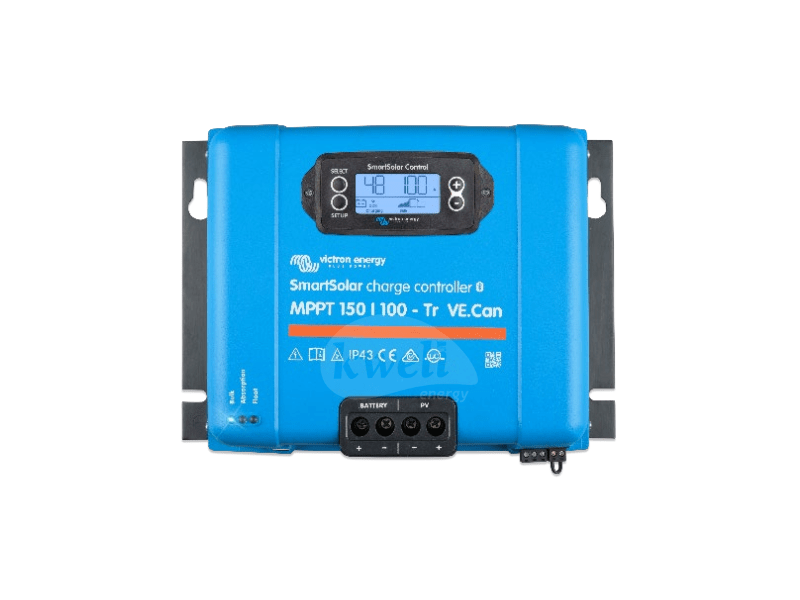

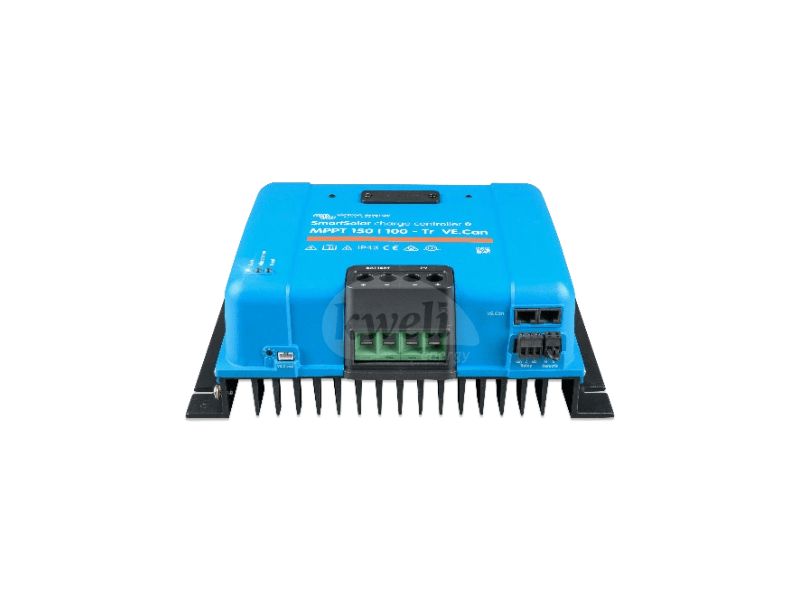

Victron SmartSolar Charge Controller MPPT 150/100Tr VE.Can; 150V 100A 12/24/36/48 Charge Controller with Bluetooth

Original price was: UGX3,290,000.Current price is: UGX2,900,000.

Victron SmartSolar Charge Controller MPPT 150/100Tr VE.Can

  • Ultra-fast MPPT: Enhances energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers, especially in varying light conditions.

  • Advanced MPPT Detection: Optimises energy harvest under partial shading conditions by ensuring the controller locks onto the optimal MPP, avoiding suboptimal points.

  • High Efficiency: No cooling fan is required; efficiency exceeds 98%.

  • Flexible Charge Algorithm: Fully programmable with eight pre-set algorithms, offering customisation for different battery types.

  • Robust Protection: Includes over-temperature, PV short circuit, reverse polarity, and current protection.

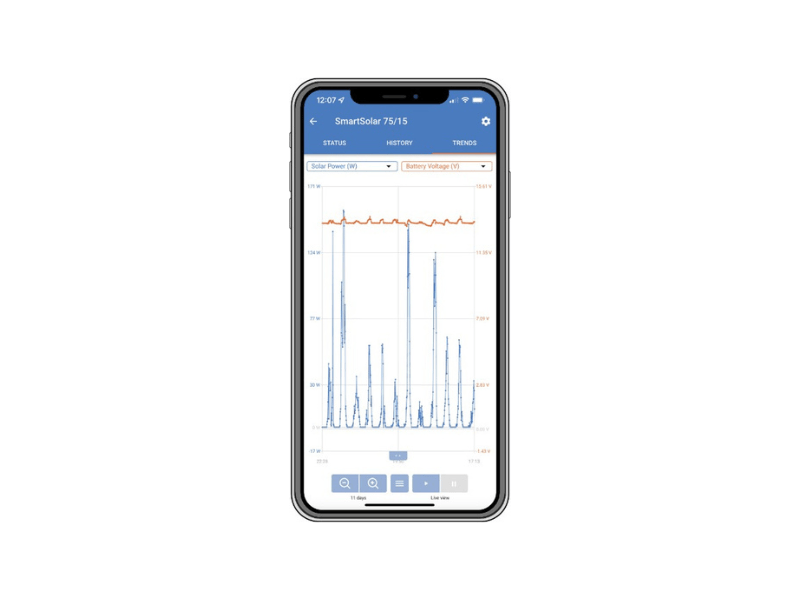

  • Bluetooth Smart Built-in: Enables wireless setup, monitoring, updates, and synchronisation with other Victron devices.

  • Wired Connectivity: Options for VE.Direct or VE.Can connect to other systems or monitoring devices.

  • Battery Recovery Function: Capable of charging batteries discharged to zero volts and reconnecting to fully discharged Li-ion batteries with integrated disconnect functions.

  • Programmable Relay: Allows for custom alarms or event-triggered actions.

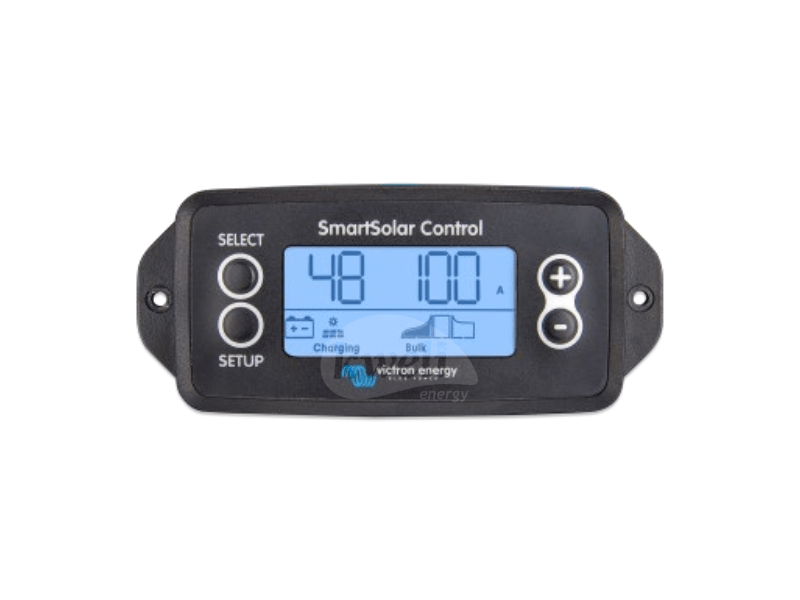

  • Optional LCD Display: Easily attachable to the front of the controller for on-site monitoring

  •

Categories , ,
Post on Faacebook
Post on X
Share via WhatsApp
Print
Send via Email

Description

Victron SmartSolar Charge Controller MPPT 150/100Tr VE.Can

  • Rated Charge Current: 100A
  • Battery Voltage: 12/24/48V (Auto Select), 36V (manual)
  • Nominal PV Power:
    • 12V: 1450W
    • 24V: 2900W
    • 36V: 4350W
    • 48V: 5800W
  • Maximum PV Open Circuit Voltage: 150V (absolute maximum)
  • Maximum Efficiency: 98%
  • Operating Temperature Range: -30°C to +60°C
  • Protection Rating: IP43 (electronic components), IP22 (connection area)
  • Dimensions:
    • Tr models: 216 x 295 x 103 mm
    • MC4 models: 246 x 295 x 103 mm
  • Weight: 4.5 kg

Additional information

Weight 7 kg

Brand

Victron Energy

Victron Energy: Power Without Compromise.Browse and buy Victron smart solar inverters, inverter-chargers, and MPPT charge controllers in Uganda at Kweli.shop. Known for their high efficiency, robust design, and advanced technology, Victron offers reliable power solutions for homes and businesses. Power Without Compromise with Victron Energy.
