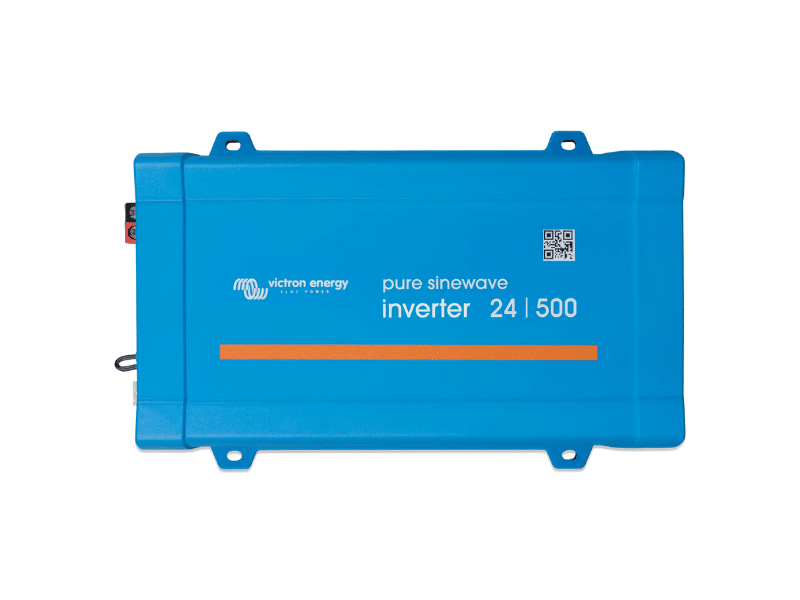

Victron Phoenix 500VA 24V Inverter VE.Direct specifications
- Model: Victron Phoenix Inverter 24/500 VE.Direct
- Continuous Output Power at 25°C: 500VA
- Output Power at 40°C: 400W
- Peak Power: 900W
- Input Voltage Range: 18.4V – 34.0V DC
- Output Voltage / Frequency: 230VAC ±3%, 50Hz or 60Hz ±0.1% (user configurable)
- Max Efficiency: 90%
- Zero-load Power Consumption: 6.5W (1.5W in ECO mode)
- DC Connection: Screw terminals (no special tools required)
- Dimensions (H x W x D): 86 x 172 x 275 mm
- Weight: 3.9 kg
- Cooling: Fan-assisted
- IP Rating: IP21
- Operating Temperature: –40°C to +65°C (with derating above 40°C)
Key Features:
- Pure Sine Wave Output: For safe operation of sensitive electronics and appliances
- VE.Direct Communication Port: Enables advanced monitoring and configuration via USB or Bluetooth dongle
- Remote On/Off Terminal: Supports integration with switches or automation systems
- ECO Mode: Automatically reduces power draw when demand is low
- High Surge Capacity: Starts devices with high inrush current
- Full Suite of Protections: Against short circuits, overloads, battery voltage issues, and overheating
- LED Diagnostic Indicators: Quick visual status and fault notifications
Ideal For:
- 24V off-grid solar power systems
- Powering laptops, routers, fans, and lights
- Caravans, boats, mobile workstations
- Backup power for small electronics and critical loads
